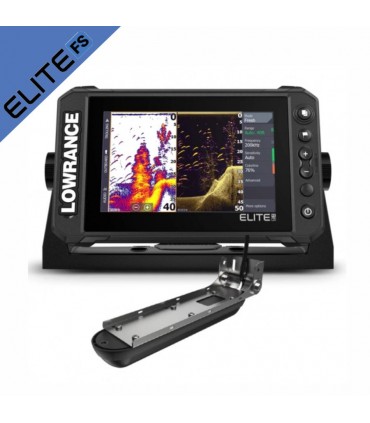

Elite FS7 GPS probe with Active Imaging 3 in 1 000-15689-001

The new Elite Fishing System (FS) gives you access to Lowrance's full range of sonar features, including ActiveTarget™ real-time sonar, Active Imaging™ and support for a wide variety of chart options, to so you can get the most out of your time on the water.

Read moreShow less
€966.42 €1,208.03
In stock. Available in 1 to 7 days.
Add to compare0
Add to wishlist
You may also like
No items

The Elite Fishing System™ (FS) combines the power of Lowrance's latest sonar features with a more affordable display that's easier to use and install. From ActiveTarget™ real-time sonar and impressive high-resolution Active Imaging™ with Lowrance CHIRP, SideScan and DownScan Imaging™ sonar, to support for a wide variety of mapping options, Elite FS gives you all the tools you need. to search and catch more fish.

Find more fish with Lowrance's exclusive sonar technology

See structure and coverage in a new level of detail and at unmatched range with 3-in-1 Active Imaging™ sonar, equipped with CHIRP, SideScan and DownScan with FishReveal™. Get the most out of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, an exclusive Lowrance feature that helps you easily distinguish fish from structure and coverage with highly detailed DownScan images amazing.

Locate fish in real time with new ActiveTarget™ real-time sonar

With ActiveTarget™ real-time sonar, you'll fish smarter by knowing exactly what your fish are doing, in real time. Enjoy high-resolution views of fish movements that allow you to track them as they enter cover and swim around you. Watch their response to the bait in real time and you'll know if your current technique is working or if it's time to change your strategy.

Lots of mapping options

Preloaded with a basic world map, Elite FS displays offer support for a wide range of mapping options, including C-MAP®, Navionics® and more.

Main features

  • Compatible with ActiveTarget™ real-time sonar
  • Compatible with Active Imaging 3 in 1
  • FishReveal™
  • With basic world map, plus a wide range of chart options, including C-MAP, Navionics® and more
  • C-MAP® Easy Routing and Navionics® Autorouting functions
  • On-screen C-MAP Genesis Live cartography
  • High resolution multi-touch screen
  • Integrated wireless, NMEA 2000® and Ethernet connectivity
  • Full touchscreen control of Power Pole® anchors and Ghost® electric motor


Power Consumption, max. 2.0A @ 13VDC with backlight on full
Power Consumption, min. 2.0A @ 13VDC with backlight on full
Power Consumption, typical 2.0A @ 13VDC with backlight on full
Recommended Fuse Rating 3A
Supply Voltage 12v DC (10.8-17VDC)
Humidity 60°C, 95% relative humidity (RH) for 18 hours


Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Shock and Vibration 100,000 cycles of 20 G
Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
Waterproof rating IPX7 with card door closed


GPS Receiver Channels 16
Position Accuracy 20m RMS
Time to First Fix 30s
Update rate 10Hz


AIS AIS Chart overlay. Target vessel details.
Autopilot Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Cartography included C-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models)
Cartography supported C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Digital switching None
External storage 1 microSD card up to 32GB
Gps 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Internal storage None
Multimedia SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
Radar (inc. compatibility) 4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
Sonar (inc. compatibility) Integrated: CHRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
Weather SiriusXM via WM-4 (USA only)
Waypoints, Routes, Tracks 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Compass Safe Distance - Metric, Imperial 12" (300mm)


MountingType Gimbal Bracket or Dash Flush Mount
Weight 1.90lbs (0.90kg)


Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean /한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK) pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/D eutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
Warranty Period 1 Year + 4 additional years of upgrade options Totaling 5 years
Interface Multi-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power
Backlight Color Pure White LED
Resolution 800x480
Screen Brightness >1200nits
Size and Type 7.00" (178mm) WVGA color TFT LCD
Viewing Angles 50°top60°bottom70°left/right
Read moreShow less
Product Details

Data sheet

GPS Plotter Sounder
Elite FS
Size screen
Transducing power
PMA Transductor
