Elite FS9 GPS Plotter Fishfinder without Transducer 000-15706-001

Offer price-12%

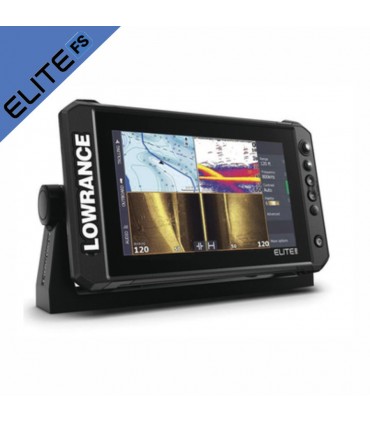

Elite FS9 GPS Plotter Fishfinder without Transducer 000-15706-001

Elite FS7 GPS probe with Active Imaging 3 in 1 000-15689-001

Elite FS9 GPS probe with Active Imaging 3 transducer at 1 000-15693-001

The new Elite Fishing System (FS) gives you access to Lowrance's full line of fish-finding tools, including ActiveTarget™ real-time sonar, Active Imaging™, and support for a wide range of fishfinding options. card, so you can get the most out of your time on the water.

Recommended Accessories

Accesorios electronica

	C-MAP Discover has the best of C-MAP high-resolution blending, including Genesis's integrated data, along with vector graphics with all functions, personalized depth shading, tides and currents and Easy Routing without subscription.	C-Map Discover L:Canaries, Madeira/Azores M-EW-Y209-MS €124.22
	The C-MAP REVEAL cartography features high-quality Premium graphics, including all REVEAL functions and data, as well as the new global shaded relief, satellite images, air photographs and plot graphics. Ideada para Lowrance, Simrad and B fakeG. Whether you are a sailor or an experienced fisherman these extraordinary cards will improve your fishing or sailing days.	Cartografia C-Map Reveal Larga - West of Europe M-EW-Y228-MS €191.64
	The MAX Pro suitcase is made of high impact resistant ABS and has an IP67 certified outer shell, which means that it is 100% protected against dust and completely submerged in water at less than 1 meter for up to 30 minutes. The case guarantees great durability and can be used in different applications, from marine uses to photography, fishing, mountain activities or to transport your electronic devices. The interior of the suitcase is filled with foam on the top and bottom, so you can adapt it by cutting it according to the content you want to store or protect.	Briefcase waterproof box 361x289x120 c/foam 9" €64.20
	The C-MAP REVEAL cartography features high-quality Premium graphics, including all REVEAL functions and data, as well as the new global shaded relief, satellite images, air photographs and plot graphics. Ideada para Lowrance, Simrad and B fakeG. Whether you are a sailor or an experienced fisherman these extraordinary cards will improve your fishing or sailing days.	Cartografia C-Map Reveal Larga - Southwest of Europe M-EM-Y076-MS €191.64
	C-MAP Discover has the best of C-MAP high-resolution blending, including Genesis's integrated data, along with vector graphics with all functions, personalized depth shading, tides and currents and Easy Routing without subscription.	Cartografia C-Map Discover Norte de España M-EW-Y207-MS €125.10
	C-MAP Discover has the best of C-MAP high-resolution blending, including Genesis's integrated data, along with vector graphics with all functions, personalized depth shading, tides and currents and Easy Routing without subscription.	Cartography C-Map Discover West Mediterranean M-EM-Y200-MS €125.10
	High performance battery based on a soul of Lithium Ion cells of the highest quality, Power kit presents this product under the criteria of maximum efficiency and utility with a weight of only 650 gr you can take it anywhere. The main characteristics are its lightness, safety, durability and reliability, which together with its resistance to the marine environment (waterproof) make it one of the best options on the market. Kit Content: 1 - Portable Battery 1 - Smart charger 1 - Battery cover 1 - Connector cable to device 2 - Watertight connectors 1 - Heat Shrink Sleeve Powerymax	Complete battery kit Powerkit lithium 12V 10Ah €113.40

Love0

Add to compare0

Add to wishlist

Find more fish with Lowrance's exclusive sonar technology

See structure and coverage in a new level of detail and at unmatched range with 3-in-1 Active Imaging™ sonar, equipped with CHIRP, SideScan and DownScan with FishReveal™. Get the most out of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, an exclusive Lowrance feature that helps you easily distinguish fish from structure and coverage with highly detailed DownScan images amazing.

Locate fish in real time with new ActiveTarget™ real-time sonar

With ActiveTarget™ real-time sonar, you'll fish smarter by knowing exactly what your fish are doing, in real time. Enjoy high-resolution views of fish movements that allow you to track them as they enter cover and swim around you. Watch their response to the bait in real time and you'll know if your current technique is working or if it's time to change your strategy.

Lots of mapping options

Preloaded with a basic world map, Elite FS displays offer support for a wide range of mapping options, including C-MAP®, Navionics® and more.

Main features

Compatible with ActiveTarget™ real-time sonar
Compatible with Active Imaging 3 in 1
Includes HDI transducer with CHIRP sonar and Lowrance DownScan Imaging™
FishReveal™
With basic world map, plus a wide range of chart options, including C-MAP, Navionics® and more
Support for C-MAP® Easy Routing and Navionics® Autorouting
On-screen C-MAP Genesis Live cartography
High resolution multi-touch screen
Integrated wireless, NMEA 2000® and Ethernet connectivity
Full touchscreen control of Power Pole® anchors and Ghost® electric motor

Electrical

Power Consumption, max.	2.0A @ 13VDC with backlight on full
Power Consumption, min.	2.0A @ 13VDC with backlight on full
Power Consumption, typical	2.0A @ 13VDC with backlight on full
Recommended Fuse Rating	3A
Supply Voltage	12v DC (10.8-17VDC)
Humidity	60°C, 95% relative humidity (RH) for 18 hours

Environment

Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Shock and Vibration	100,000 cycles of 20 G
Storage Temperature Range	4°F to 140°F (-20°C to 60°C )
Waterproof rating	IPX7 with card door closed

Gps

Correction	DGPSWAASMSASEGLONASS
GPS Receiver Channels	16
Position Accuracy	20m RMS
Time to First Fix	30s
Update rate	10Hz

MFD

AIS	AIS Chart overlay. Target vessel details.
Autopilot	Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Cartography included	C-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models)
Cartography supported	C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Digital switching	None
External storage	1 microSD card up to 32GB
Gps	10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Internal storage	None
Multimedia	SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
Radar (inc. compatibility)	4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
Sonar (inc. compatibility)	Integrated: CHRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
Weather	SiriusXM via WM-4 (USA only)
Waypoints, Routes, Tracks	3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Compass Safe Distance - Metric, Imperial	12" (300mm)

Physical

MountingType	Gimbal Bracket or Dash Flush Mount
Weight	2.7lbs (1.2kg)

Other

Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean /한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK) pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/D eutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

Warranty Period	1 Year + 4 additional years of upgrade options Totaling 5 years
Interface	Multi-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power
Languages

Backlight Color	Pure White LED
Resolution	800x480
Screen Brightness	>1200nits
Size and Type	9.00" (228mm) WVGA color TFT LCD
Viewing Angles	50°top60°bottom70°left/right
