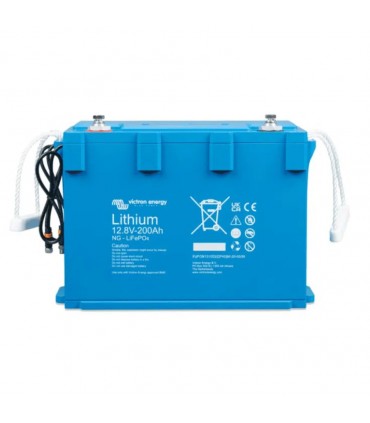

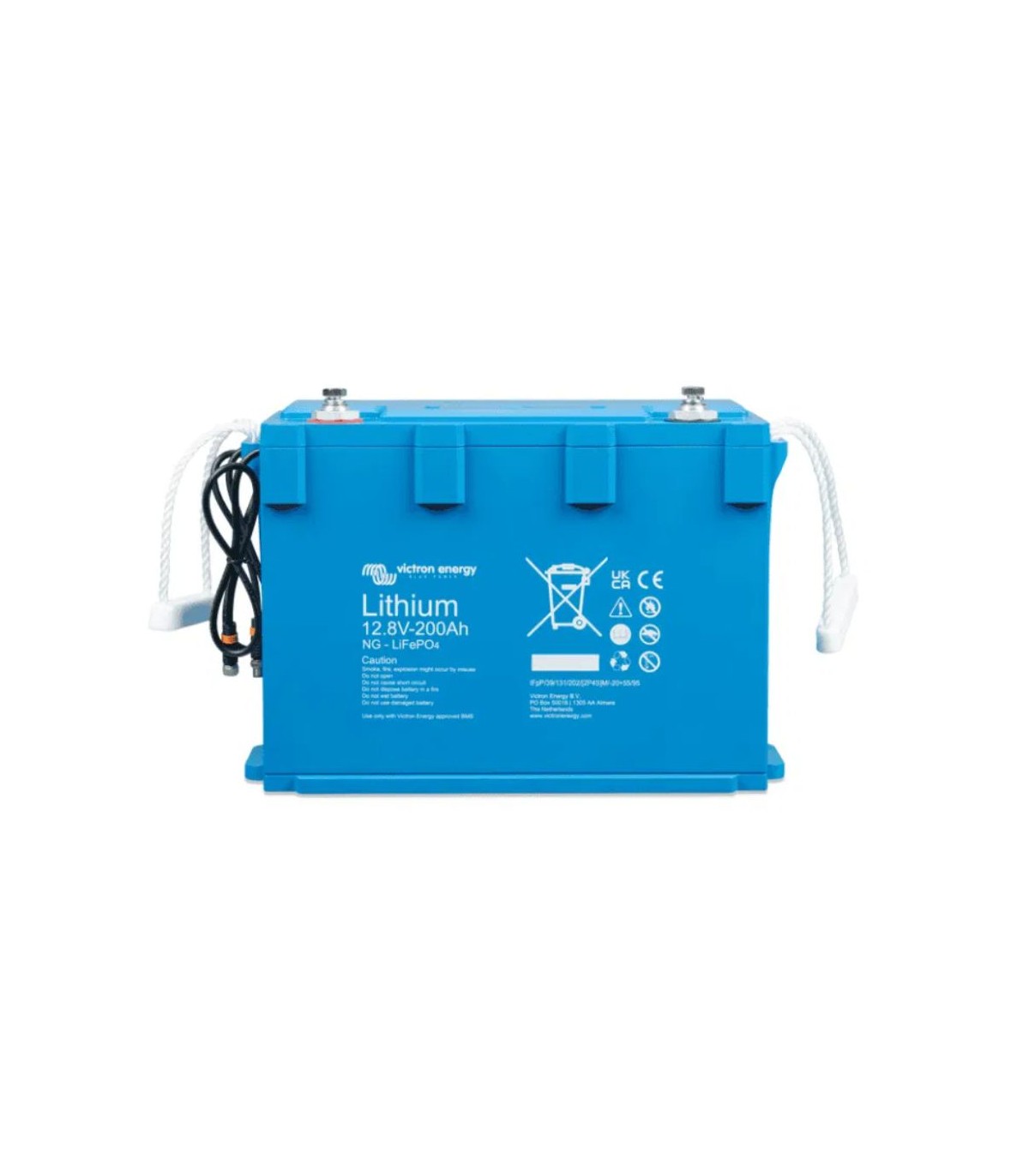

Battery Victron LifePO4 NG 12,8V / 200Ah - BAT512120620

Specifications of the LifePO4 Battery Victron 12,8V 200Ah NG

Nominal voltage: 12.8 V

Nominal capacity at 25 ° C: 200 ah

Nominal energy at 25 ° C: 2560 WH

Loss of capacity:

Loss of energy:

Full cycle efficiency: 92%

Battery connections: M8 screws (for cables with 8mm round terminal)

Life in cycles (capacity ≥ 80% of the nominal):

• 80% download: 2500 cycles
• 70% download: 3000 cycles
• 50% download: 5000 cycles

Internal self-discharge: Less than 3% per month at 25 ° C temperature.

Dimensions: 235 x 341 x 160 mm

Weight: 19 kg

Load capacity

Load tension: 14,00V - 14,4V

Flotation voltage: 13.5 V

Maximum continuous load current: 200 A (1C)

Maximum load current at 10S intervals: 400 A (2C)

Discharge

Maximum continuous discharge current: 200A (1c)

Maximum download current by 10S intervals: 400 A (2C)

Tension at the end of the download: 11.2 V (minimum battery voltage).

Internal resistance: 1 MΩ

Working conditions of Lithium Battery 12,8V 200Ah NG

Working temperature:

• Download: from -20 ° C to +50 ° C
• Load: from +5 ° C to +50 ° C

Storage temperature: From -45 ° C to +70 ° C

Humidity (without condensation): Max. 95%

Protection class: Ip65

General aspects to take into account

BMS specific for the NG battery series: You have to use a BMS compatible with the new NG Series, such as the LYNX SMART BMS NG 500 A or the LYNX SMART BMS NG 1000 A. These NG BMS must be purchased separately from the battery.

BMS interface of the battery: Male + female cable with M8 circular connector with high speed digital communication and 50 cm length.

Separate measurements of each cell: Tensions and temperatures of each cell in addition to the battery current.

Bluetooth: NG lithium batteries do not carry Bluetooth because it is incorporated into the NG series BMS.

Battery firmware updates: The firmware is automatically updated using the NG BMS.

Maximum number of batteries by BMS NG: 50 units (Total 384 kWh).

Repair: Yes (the cover can be removed with the screws).

Security rules:

• Cells: UL1973, UL9540A, IEC62619.
