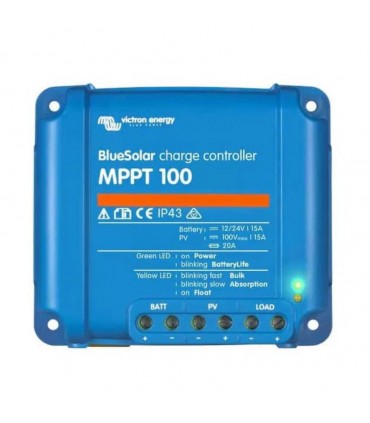

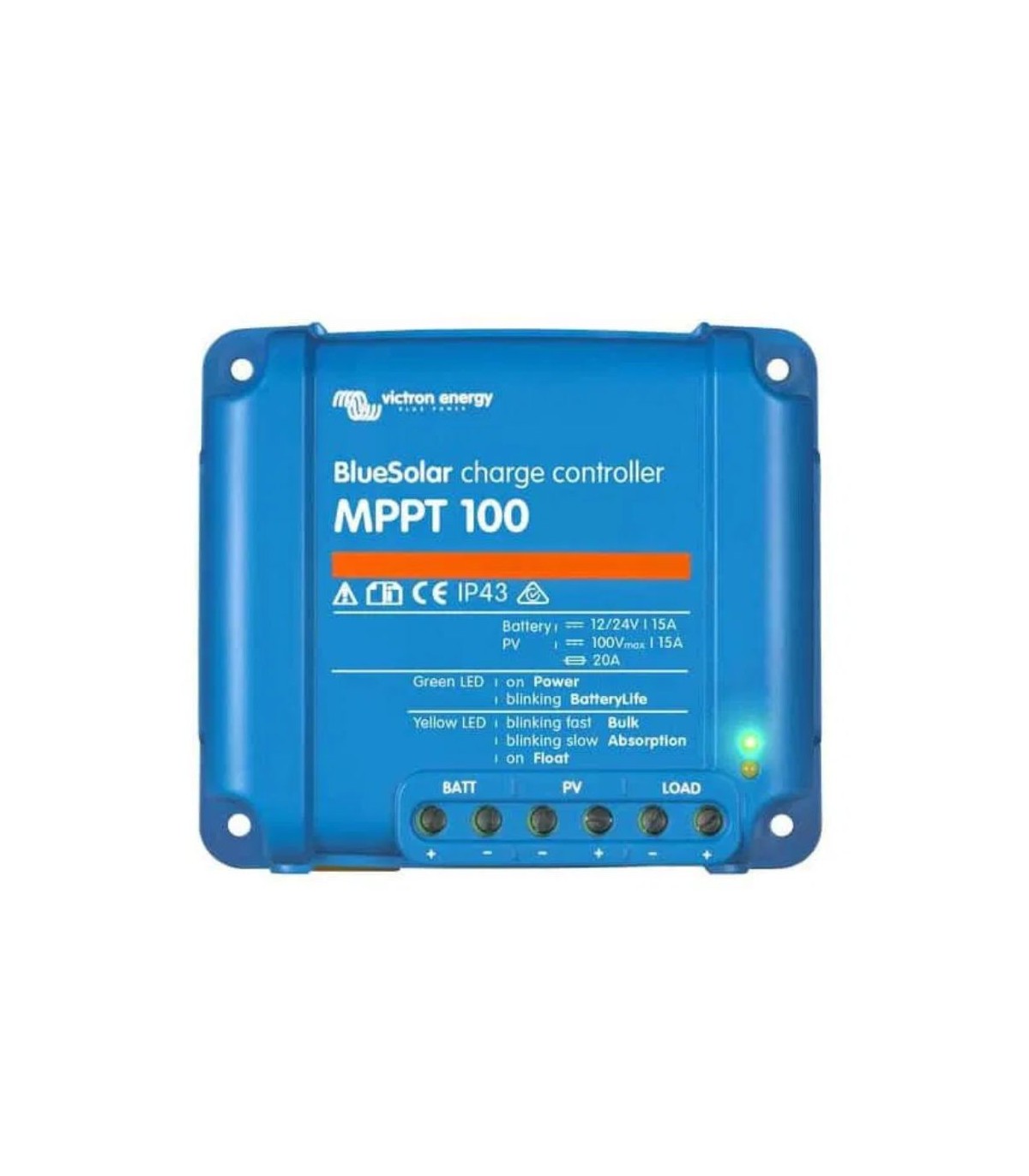

Victron Blue Solar MPPT loading controller 100/20 (12/24 / 48V-20A) - SCC110020170R

Ultrafast tracking of the maximum power point (MPPT, for its acronym in English)

Mainly with cloudy skies, when the intensity of light changes continuously, an ultrafast MPPT controller improves the collection of light and energy by up to 30%, compared to PWM load controllers, and up to 10% compared to MPPT drivers slower.

Loading

It can be avoided that the battery is excessively discharged by connecting all loads to the load output. This output will disconnect the load when the battery has been downloaded, when it reaches a pre-established voltage.

You can also choose to set a smart battery management algorithm: see BatteryLife. The load output is short-circuit proof.

Some loads (especially inverters) can be connected directly to the battery, and the remote control of the inverter to the load output. A special interface cable may be needed; Please, check the manual.

BatteryLife: Intelligent Battery Management

When a solar load controller is not capable of recharging the battery at full capacity in a day, what happens is that the battery cycle changes continuously between the "partially charged" and "final discharge" states. This mode of operation (without periodic full recharge) will destroy a lead-acid battery in weeks or months.

The batterylife algorithm will control the battery charge status and, if necessary, it will increase the level of disconnection of the load (that is, will disconnect the load before) until the solar energy collected is enough to be for Reload the battery until almost 100%. From that point, the level of disconnection of the load will be modulated so that a recharge is rearmed almost 100% around once a week.

Programmable battery charging algorithm

See the Assistance and Downloads section> Software on the page of Victron.

Timer day / night and option of luminosity regulator

See the Assistance and Downloads section> Software on the page of Victron.

Programming and options for visualization of the history and data in real time

- ColorControl GX or other GX devices: Consult the Venus documents on the victron website.

- A smartphone or other Bluetooth device: The backpack is needed VE.Direct Bluetooth Smart.

Net weight 0.65 kg

Measures 100 x 113 x 60 mm

Maximum efficiency 98%

Battery tension 12/24/48 V

Nominal loading current 20-25

Automatic voltage selection Yes

MPPT (monitoring of the maximum power point) Yes

Protection class Ip43

See. Direct Yes
