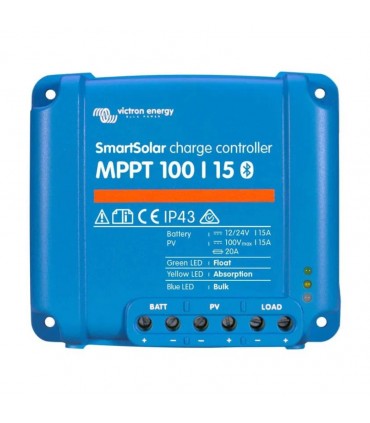

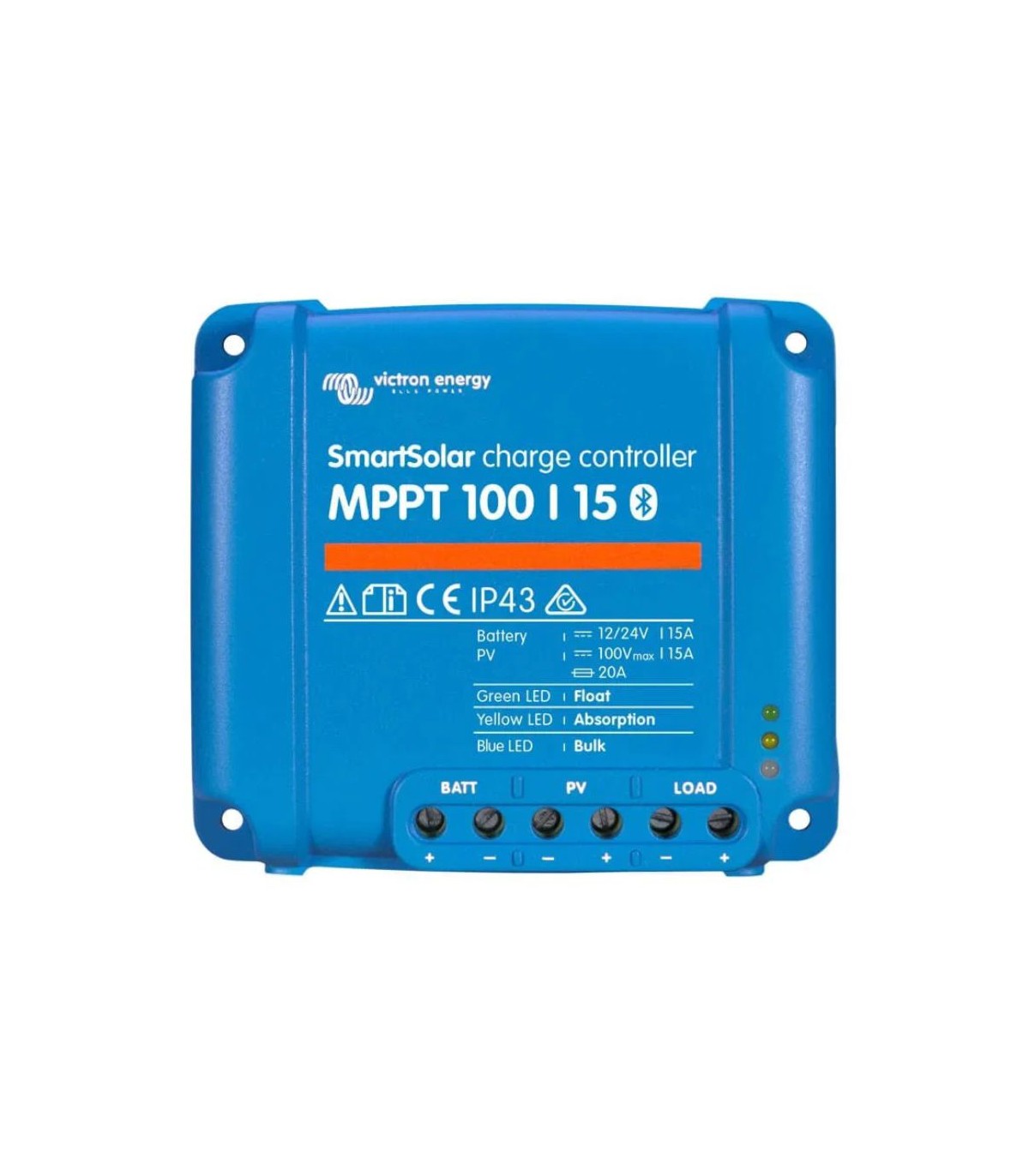

Load regulator Victron SMART SOLAR MPPT 100/15 (12 / 24V-15A) - SCC110015060R
A solar charger collects the energy of its solar panels and stores it in its batteries. Using the last and fastest technology, SmartSolar maximizes this energy harvest, conducting it intelligently to reach the full load in the shortest possible time. SmartSolar maintains the health of batteries, lengthening its useful life.
The SmartSolar charging controller will even recharge a very depleted battery. It can work with a battery voltage as low as 0 volts, provided that the cells are not permanently sulfated or damaged in some way.
Bluetooth Smart integrated
The wireless solution to configure, control, update and synchronize the SmartSolar load regulators.
€84.00
(tax incl.)
Reference:
522302120528
Brand:
Love0
Add to compare0
Add to wishlist
VE.Direct
For a cable data connection to a Color GX control, other GX products, a PC or other devices
Follow-up of the maximum power point (MPPT) ultra-fast
Especially in the case of a cloudy sky, when the intensity of light changes continuously, an ultrafast MPPT controller will improve the energy harvest up to 30% compared to PWM load controllers and up to 10% compared to MPPT drivers. Slow
Loading
The overdrops of the battery can be avoided by connecting all loads to the load output. The load output will disconnect the load when the battery has been downloaded to a pre-established voltage (48 V model: Interface with a relay). As an alternative, you can choose a smart management algorithm of the battery: See battery life. The load output is short-circuit proof.
Battery life: Intelligent battery management
When a solar loading regulator is not capable of recharging the battery until full capacity within a day, the result is usually that the battery continually passes from a "partial load" state to another of "end of discharge". This mode of operation (without regular full recharge) will destroy a lead-acid battery in weeks or months. The Battery Life algorithm will control the battery charge status and, if necessary, day by day will slightly increase the drop-off level (ie, it will disconnect the load before) until the harvested solar energy is enough to recharge the Battery almost 100%. From that moment, the level of disconnection of the load will be modulated so that a recharge of almost 100% approximately once a week is achieved.
Programmable battery charging algorithm
See the software section of our website for more details
Timing option Day / night and attenuation of light
See the software section in Victron for more details
Internal temperature sensor
It compensates for the absorption and voltage of cargo cargo depending on the temperature.
Option of external voltage detection and the battery temperature via Bluetooth
You can use a Smart Battery Sense or a BMV-712 Smart Battery Monitor to communicate the voltage and temperature of the battery to one or more SmartSolar load regulators.
Fully downloaded battery recovery function
It will start the load even if the battery has been downloaded to zero volts. You will reconnect a lithium-ion battery fully discharged with the integrated disconnect function.
BrandVictron Energy
Manufacturer's part numberScc110015060r
Gtin8719076040811
Voltage12 / 24v
Nominal loading current15a
Nominal power FV, 12V220w
Max. Short circuit current FV15a
Open circuit voltage voltage FV100v
Protection categoryIP43 (Electronic Components), IP22 (Connection Area)
Efficiency98%
Bluetooth enabledYes
DimensionsH100 x W113 x D50mm
Weight0.6kg
