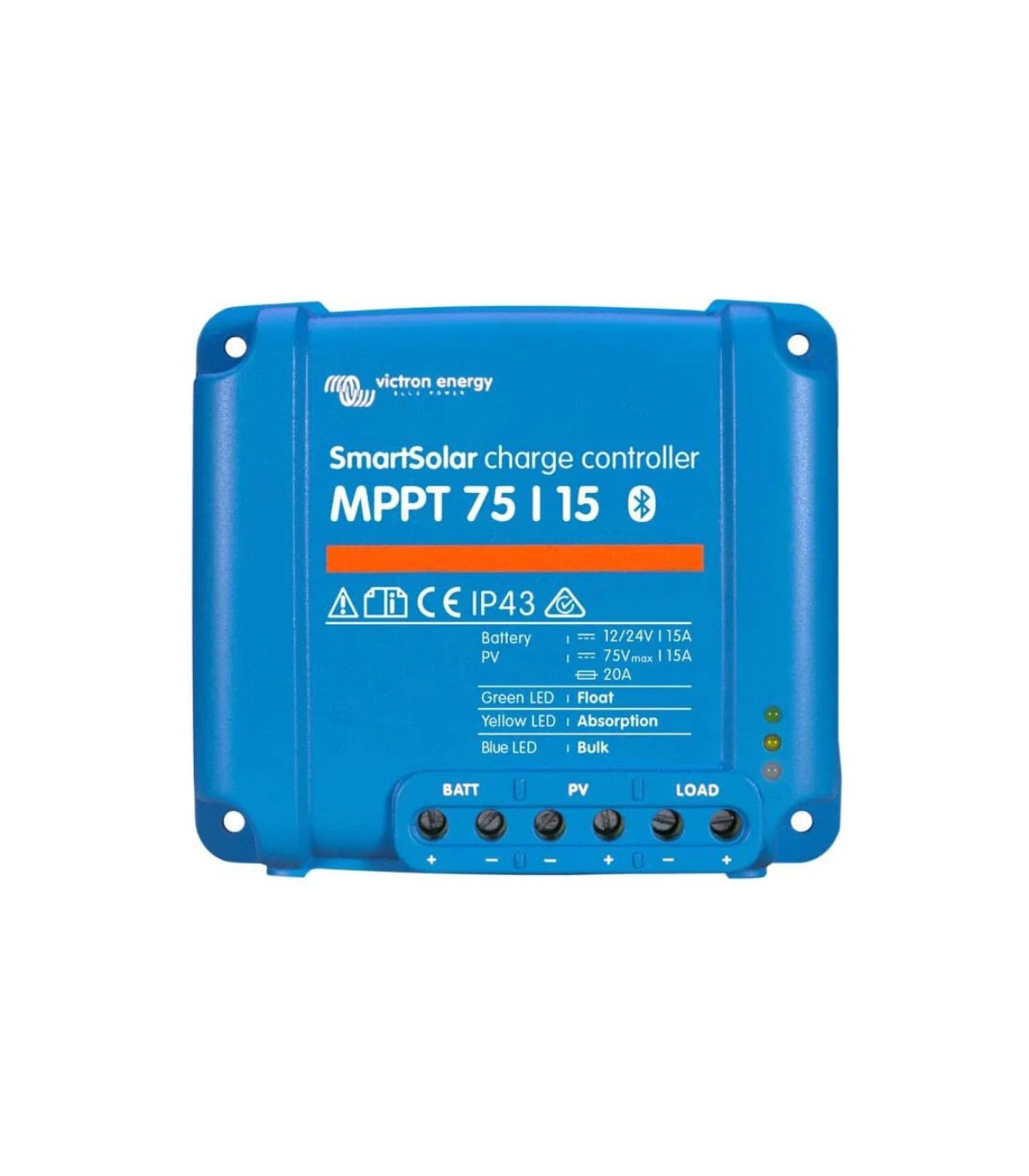

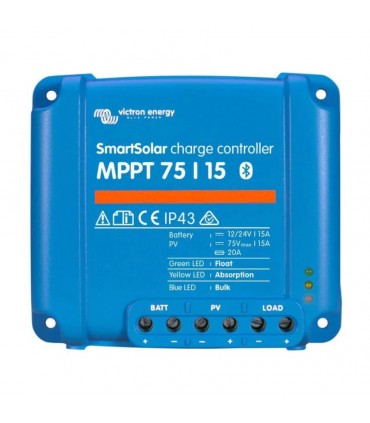

Load regulator Victron SMART SOLAR MPPT 75/15 (12 / 24V-15A) - SCC075015060R
Victron Energy Victron Regulator MPPT 75/15
With the Victron SmartSolar MPPT 75/15 controller, you can enjoy a load current up to 15 amps and voltage FV up to 75 volts. The Victron SmartSolar 75/15 MPPT load controller can load a lower rated voltage battery from top rated voltage plates of at least + 5V. The SmartSolar controller will automatically adjust the nominal voltage of the battery at 12, 24 V once connected to the regulator.
Bluetooth Smart integrated
The wireless solution for configuring, controlling, updating and synchronizing the SmartSolar load controllers.
Ultrafast tracking of the maximum power point (MPPT)
Especially with cloudy skies, when the light intensity changes continuously, an ultra-fast MPPT controller will improve energy collection by up to 30%, compared to PWM load controllers, and up to 10% compared to MPPT controllers slower.
Advanced detection of the maximum power point in case of partial cloudiness
In case of partial cloud, two or more power points can occur (MPP) in the load voltage curve. Conventional MPPTs usually select a local MPP, which is not necessarily the optimal MPP. The innovative SmartSolar algorithm will always maximize energy collection by selecting the optimal MPP.
Exceptional conversion efficiency
Without fan. Maximum efficiency exceeds 98%.
Flexible load algorithm
A fully programmable load algorithm (see the software page of our website) and eight pre-programmed load algorithms, which can be chosen with a rotary selector (see more information in the manual).
Extensive electronic protection
Protection of on temperature and power reduction in case of high temperature. Short circuit protection and reverse polarity in the FV panels. Reverse current protection FV.
Internal temperature sensor
It compensates the tension of absorption and flotation load, depending on the temperature.
Optional tension and temperature sensor external battery via Bluetooth
A SMART Battery Sense sensor or BMV-712 SMART battery monitor can be used to communicate battery voltage and temperature to one or more load controllers
Smartsolar.
Fully downloaded battery recovery function
You will start uploading even if the battery is discharged up to zero volts. A completely discharged lithium-ion battery will be reconnected with internal disconnect function.
VE.Direct
For a data connection with cable to a Color GX control, other GX, PC or other products
devices.
- Net weight: 0.50 kg
- Measures: 100 x 113 x 40 mm
- Efficiency MaximA: 98%
- Battery tension : 12/24 V
- Nominal load current: 15-19
- Automatic voltage selection: Yes
- MPPT (monitoring of the maximum power point)Yes
- Battery temperature sensor: Yes
- Internal sensorYes
- Optional remote sensor: Yes
- Digital Display: Not
- Protection class: IP43 (Electronic Components), IP22 (Connection Area)
- Warranty: 5 years
- See. Direct: Yes
- Bluetooth: Yes
