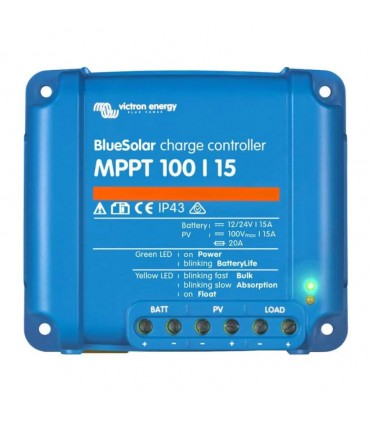

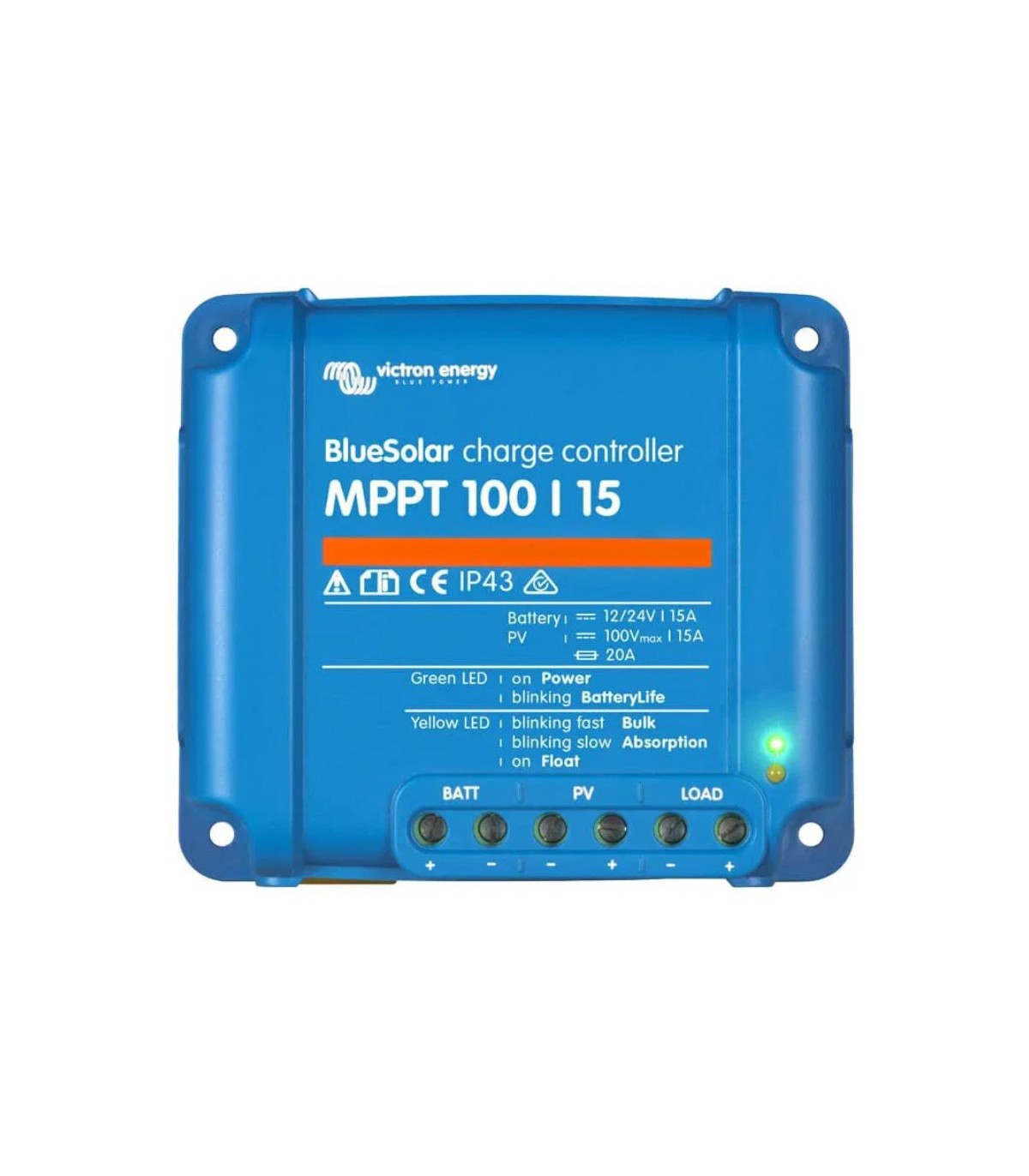

Victron Blue Solar MPPT loading controller 100/15 (12 / 24V-15A) - SCC010015200R

Victron Blue Solar MPPT loading controller 100/15 (12 / 24V-15A) - SCC010015200R

Load regulator Victron SMART SOLAR MPPT 75/15 (12 / 24V-15A) - SCC075015060R

Solar Regulator Victron Energy Bluesolar Range MPPT for 12/24 V systems (maximum tension of 100V plates). Nominal load capacity of 15 amps. Indispensable for your photovoltaic system.

MPPT regulators, also called maximizer regulators (their acronym in English), MPPT Solar Regulators or MPPT drivers, allow to obtain the maximum power of the solar panels by always working at the point of maximum performance. MPPT regulators offer economic savings thanks to its MPPT system (Maximum Power Point Tracking) that always gets the extraction of the maximum power of your panels.

You may also like

No items

Why Shop at Transformer

FREE SHIPPING

All orders over $100 free super fast delivery.

BEST PRIEC GUARANTEE

The best choice for high quality at good prices.

SHIPPING

We ship to over 100 countries worldwide through fast and reliable delivery partners.

PAYMENT

We accept Visa, MasterCard and American Express.

Description

MPPT regulators also presents the advantage, with respect to the PWMs, to add serial panels with a total voltage upper than the battery bank. With this, we managed to greatly avoid the typical losses from going to low voltage and high intensity in continuous current. If your solar installation has photovoltaic modules of more than 60 cells or if the total voltage of the plates exceeds the battery voltage it is essential that you use an MPPT regulator instead of a PWM since it is this form We take full advantage of the performance of our system and also, we will protect the batteries by providing more performance in the loads.

The Victron BlueBlue MPPT 100/15 controllers range is the most indicated for medium-sized photovoltaic systems with high plates input voltage so it is ideal for large boats, caravans with high equipment, vehicles Special rescue as ambulances and as ambulances and even for large photovoltaic applications such as rural housing and cultural photovoltaic system isolated.

In addition, the BlueSolar MPPT range has the novel intelligent loading function that is responsible for avoiding damages that occur when a battery remains "empty". The voltage can be configured to which the BlueSolar must disconnect the load, thus avoiding an excessive drainage of its batteries. And here is the key: Blueesolar will try to recharge the 100% battery every day. If you could not do it, as in case of bad weather periods, you will raise the disconnection tension daily until you get it. This patented function by Victron Energy is called "BatteryLife", because it maintains the health of its battery and extends its useful life.

Battery voltageAutomatic Selection of 12/24 V

Nominal loading current15a

Maximum photovoltaic power, 12V 1A, B)200w

Maximum photovoltaic power, 24V 1A, B)400w

Automatic load disconnectionYes, maximum load 15 a

Maximum Voltage of photovoltaic open circuit100 V

Maximum efficiency98%

Own consumption10th

Load tension 'absorption'14.4 V / 28.8 V (Adjustable)

Floor voltage 'floating'13.8 V / 27.6 V (Adjustable)

Cargo algorithmAdaptive multistage

Temperature compensation-16 MV / ØC resp. -32 MV / ØC

Continuous loading current / peak15A / 50A

Low voltage load disconnection11.1 V / 22.2 V or 11.8 V / 23.6 V or BatteryLife Algorithm

Reconnection of low voltage load13.1 V / 26.2 V or 14 V / 28 V or BatteryLife Algorithm

ProtectionReverse polarity of the battery (fuse) Short circuit of exit / excess temperature

Operating temperature-30 to +60 øc (full nominal exit up to 40 øc)

Humidity95%, without condensation

Data communication portVE.Direct See the White Data Communication Paper on our website

Enclosure

ColorBlue (RAL 5012)

Power terminals6 mmý / awg10

Protection categoryIP22 (connection area)

Weight0,5kg

Dimensions (AlxAnXPR)100x113x40mm
