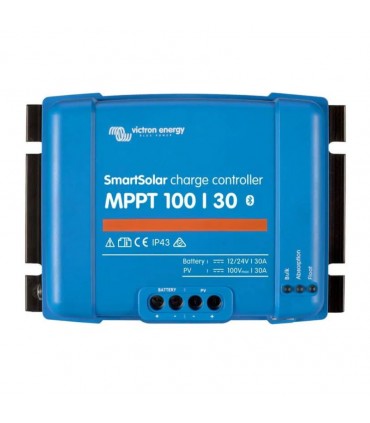

Load regulator Victron SMART SOLAR MPPT 100/30 (12 / 24V-30A) - SCC110030210

Ve.direct

For a data connection with cable to a Control Color panel, Venus GX, PC or other devices.

Ultrafast tracking of the maximum power point (MPPT).

Especially with cloudy skies, when the intensity of the light changes in an ultra-fast MPPT controller will improve the energy collection by up to 30%, compared to the PWM load controllers, and up to 10% compared to controllers MPPT slower.

Advanced detection of the maximum power point in case of partial cloudiness

In case of partial cloud, two or more power points can occur (MPP) in the load voltage curve.

Conventional MPPTs usually select a local MPP, which is not necessarily the optimal MPP.

The innovative BlueSolar algorithm will always maximize energy collection by selecting the optimal MPP.

Exceptional conversion efficiency

Without fan. Maximum efficiency exceeds 98%.

Full output current up to 40 ° C (104 ° F).

Extensive electronic protection

Protection of overtemperature and power reduction in case of high temperature.

Short circuit protection and reverse polarity in the FV panels.

Reverse current protection FV.

Internal temperature sensor

It compensates for the tension of absorption and floating load depending on the temperature.

Data options on display in real time

- Smartphones, tablets and other Apple and Android devices

- ColorControl panel.

Net weight: 1.3 kg

Measures: 13 x 18.6 x 7 cm

Maximum efficiency: 98%

Battery tension: 12/24 V

Nominal load current: 30-35

Automatic voltage selection: Yes

MPPT (monitoring of the maximum power point)Yes

Battery temperature sensorYes

Internal sensor: Yes

Digital Display: Not

Protection class: IP43 (Electronic Components), IP22 (Connection Area)

See. DirectYes

Bluetooth: Yes
