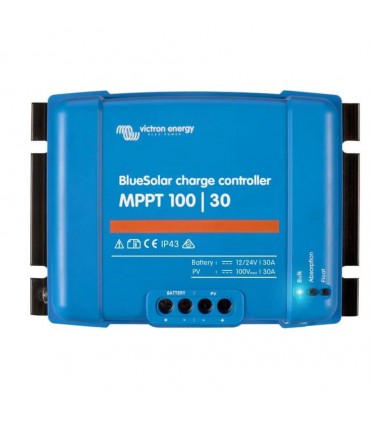

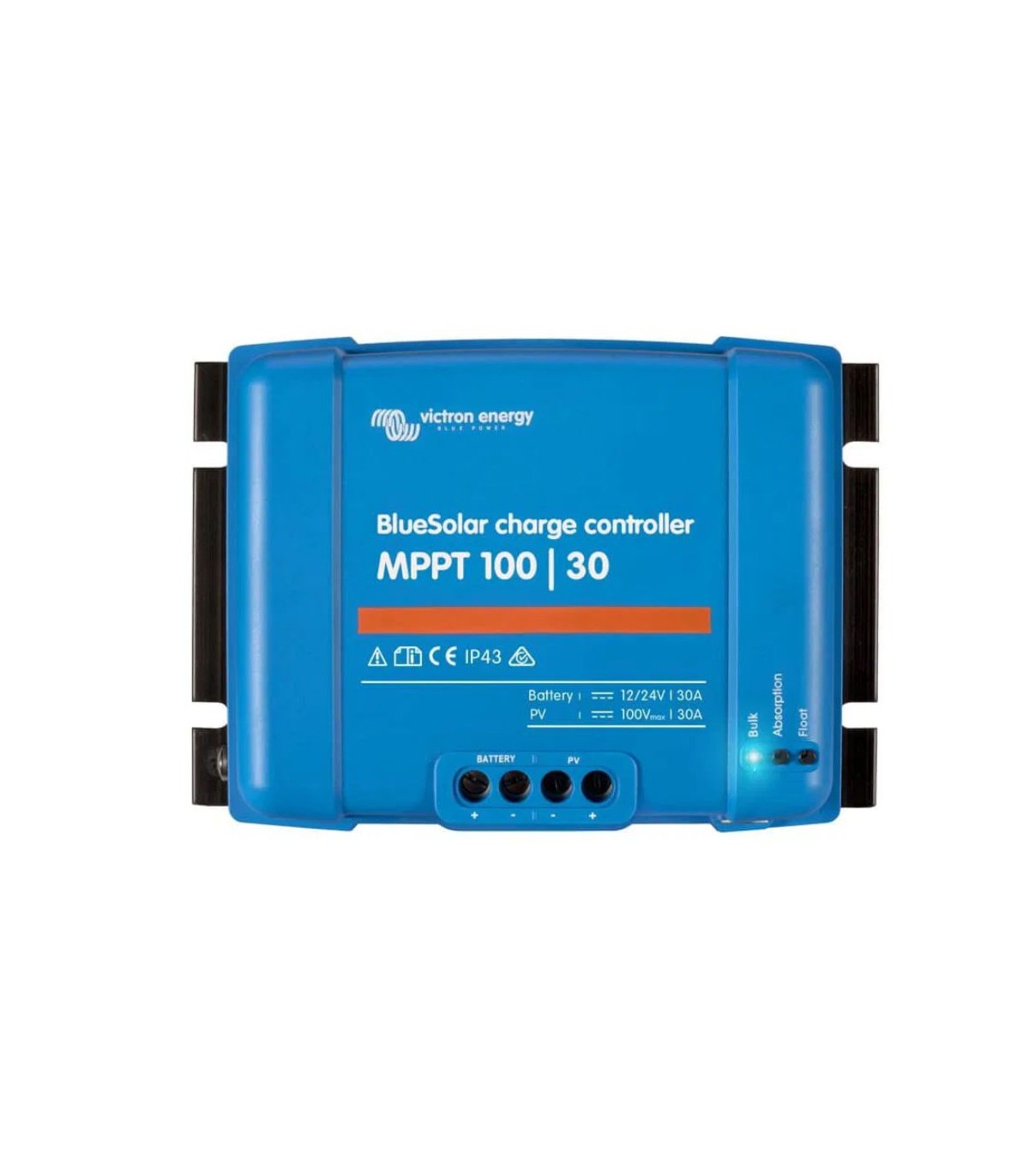

Load regulator Victron Blue Solar MPPT 100/30 (12/24-30A) - SCC020030200

Loading regulator Victron BlueBlueBlue MPPT 100/30 of 12 / 24V and 30A. It has ultra-fast MPPT driver. It also has eight preprogrammed algorithms, selectable that maximize energy collection at all times.
Ultrafast tracking of the maximum power point (MPPT, for its acronym in English)
Especially with cloudy skies, when the light intensity changes continuously, an ultra-fast MPPT controller will improve energy collection by up to 30%, compared to PWM load controllers, and up to 10% compared to MPPT controllers slower.
Advanced detection of the maximum power point in case of partial cloudiness
Read moreShow less
€119.00 (tax incl.)
Term Delivery from 01 to 7 days.
Reference:
522302120532
Love0
Add to compare0
Add to wishlist
You may also like
No items
Description
In cases of partial cloudos, two or more power points can occur (MPP) in the load voltage curve. Conventional MPPT tend to select a local MPP, which may not be optimal MPP. The innovative BlueSolar algorithm will always maximize energy collection by selecting the optimal MPP.
Exceptional conversion efficiency
Without fan. Maximum efficiency exceeds 98%. Full output current up to 40 ° C (104 ° F). Flexible charging algorithm Fully programmable load algorithm (see the Assistance and Downloads section> Software on our website), and eight pre-programmed algorithms, selectable by switching switch (see manual for more information).
Extensive electronic protection
Protection of overtemperature and power reduction in case of high temperature. Short circuit protection and reverse polarity in the FV panels. Reverse current protection FV.
Internal temperature sensor
It compensates the tension of absorption and floating load. depending on the temperature.
Data options on display in real time
Smartphones, Tablets and other Apple and Android devices See "VE.Direct and the Bluetooth Smart backpack ".
ColorControl panel.

Net weight: 1.3 kg

Measures: 130 x 186 x 70 mm

Maximum efficiency: 98%

Battery tension: 12/24 V

Nominal load current: 30-35

Automatic voltage selection: Yes

MPPT (Monitoring of the maximum power point): Yes

Internal sensorYes

Digital Display: Not

Protection class: IP43 (Electronic Components), IP22 (Connection Area)

See. DirectYes

Read moreShow less
Product Details
522302120532
