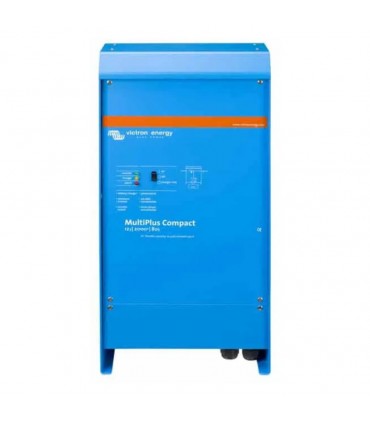

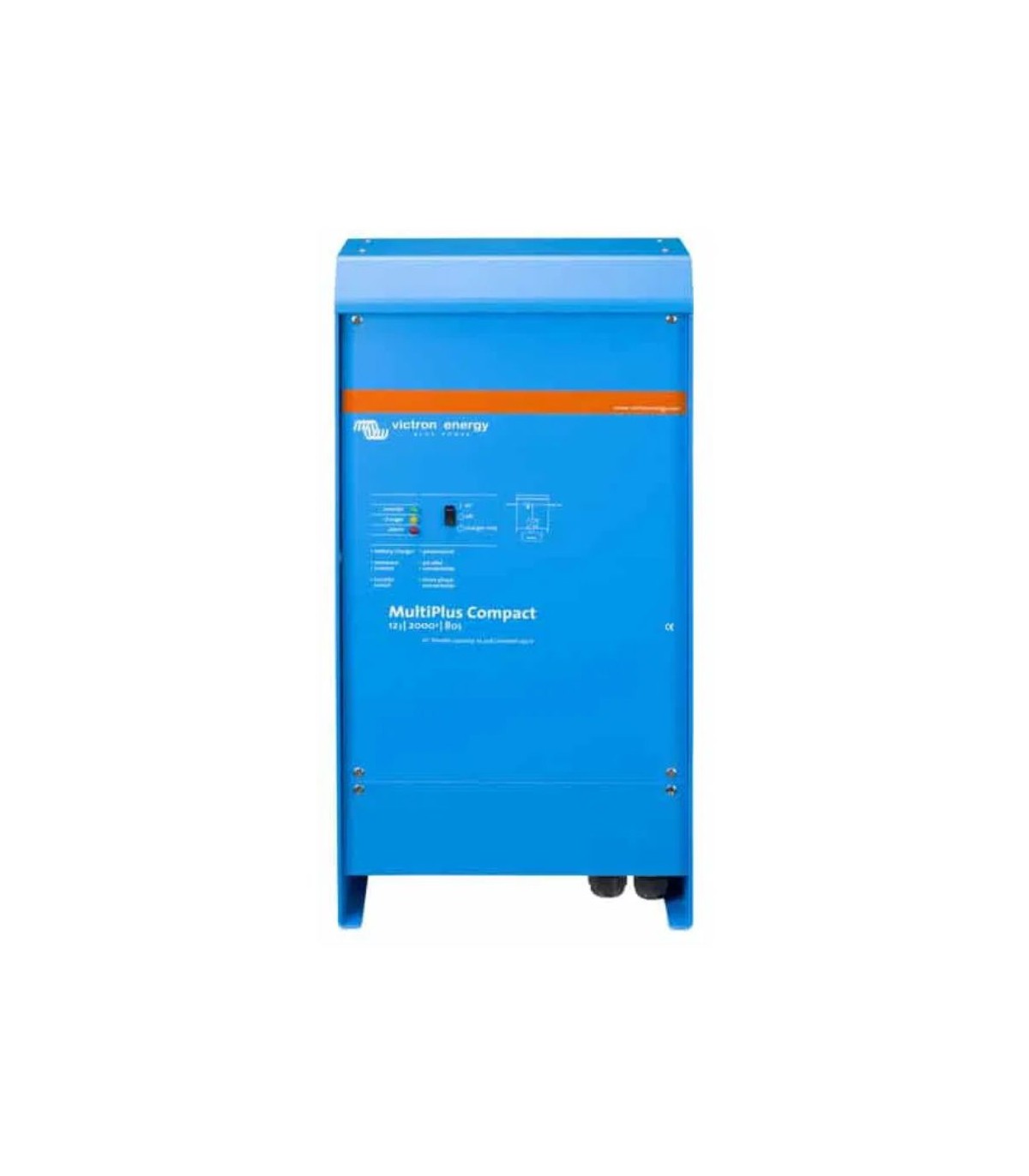

Inverter / Charger Victron Multiplus Compact 12/2000 / 80-30 230V Ve.bus - CMP122200000

Up to 6 multis can work in parallel to achieve a higher output and load power.

• Three-phase operating capacity

In addition to the parallel connection, three units of the same model can be configured for a three-phase output. But that's not all: Up to 6 sets of three units can be connected in parallel.

• PowerControl - limited power of the generator, of the pencreen or network

The multi is a very powerful battery charger. Therefore, it will use a lot of current from the generator or the pencrition network (almost 10 A for each multi 5kVA to 230 VAC). A maximum current from the generator or scratch can be established in the multi control panel. The MultiPlus will take into account the other AC loads and use the remaining current for the load, thus avoiding overloading the generator or the pencrneh's network.

• Powerassist - Increase in the electric capacity of the pencreen or generator

This function carries the principle of PowerControl to another dimension. It allows multiplus complemently the capacity of the alternative source. When a power peak is required for a short period of time, as often happens, MultiPlus will immediately compensate the possible power lack of power of the pencrin or generator with battery power.

• Variable four-stage charger and load of double battery bench

The main output provides a powerful load to the battery system by means of an advanced "variable load" software. The software accurately adjusts the three-stage automatic process adapting to the battery conditions and adds a fourth stage for prolonged slow-load periods.

In addition to the above, the multiplus can load a second battery.

• System configuration can not be simpler

Once installed, the multiplus is ready to work. If the configuration has to be changed, it can be done in a matter of minutes through a new DIP switch configuration procedure, or through Victron software.
