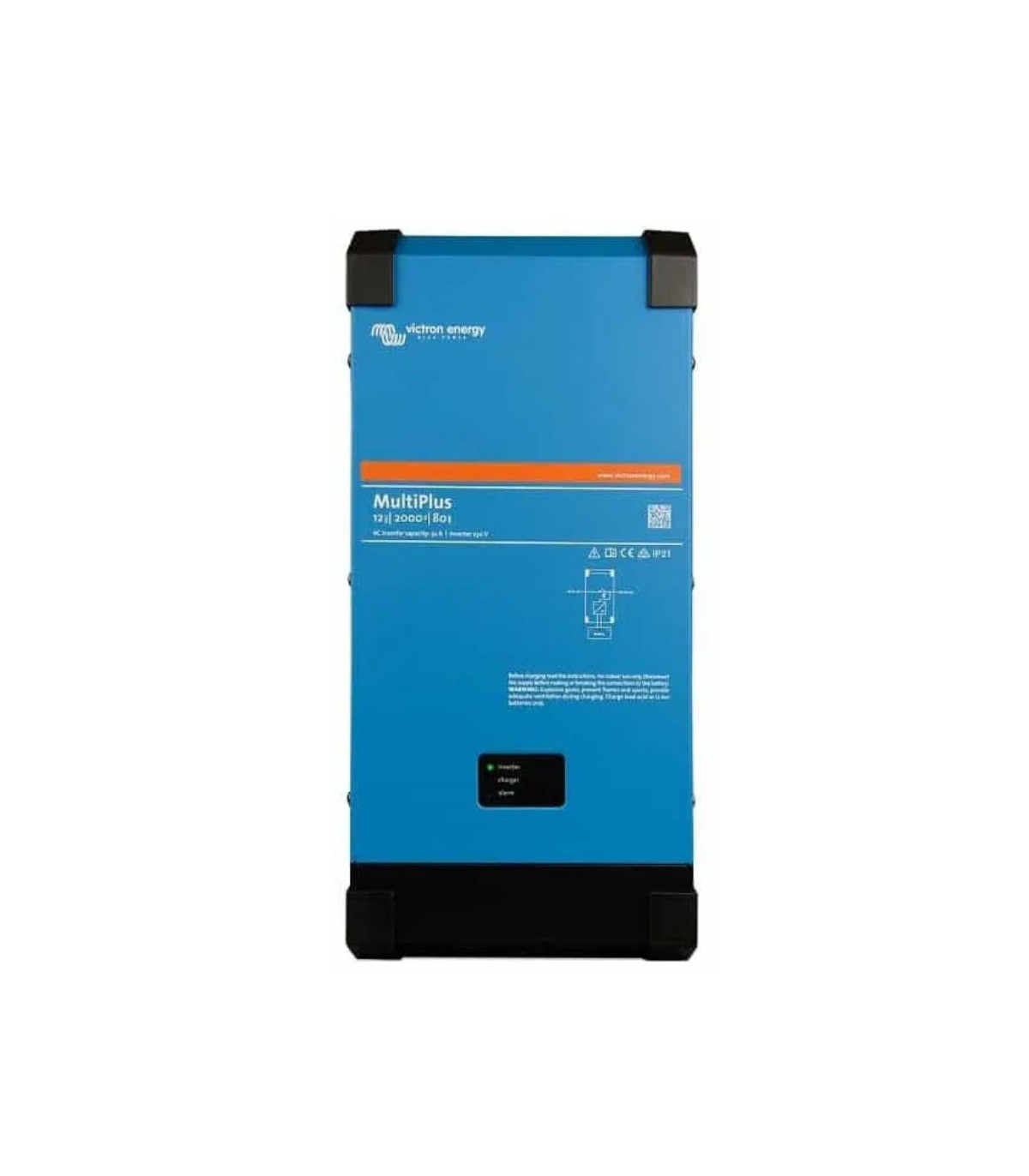

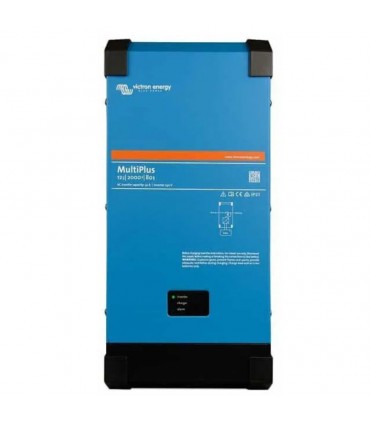

Inverter / Charger Victron Multiplus 12/2000 / 80-32 230V Ve.bus - PMP122200000
Inverter-Charger Victron Multiplus 12/2000 / 80-32
The new multiplus style has been designed to replace the previous multiplus compact range. Gathered, in a single compact housing, a powerful sinusoidal inverter, a sophisticated battery charger with variable load technology and a high-speed AC transfer switch.
Uninterrupted alternating current (SAI function)
In case of blackout, or disconnecting the port socket or the generator, the inverter integrated in the multi is automatically activated and assumes the supply to feed the connected loads. This happens so quickly (less than 20 milliseconds) than computers and other electronic equipment continue to run without interruption.
Remote tracking and control (optional using the Color Control GX or Venus GX)
Monitor and control your system or multiplus systems locally (LAN) or remotely online from anywhere in the world with free VRM app and the free VRM portal. Access can be carried out from a telephone, a tablet or a PC with different operating systems. The control level has no limit, always through the essential GX control color or Venus GX.
Proven reliability
The complete bridge topology More Toroidal transformer has demonstrated its reliability over many years.
The inverter is short-circuited and protected against overheating, either due to an overload or at an elevated room temperature.
PowerControl - limited power of the generator, from the port and network of the network (800VA / 2000VA)
A maximum current from the generator or scratch can be established in the multi control panel. The Multiplus will have charge of other AC loads and will use the remaining current for the load, thus avoiding overloading the generator or the port socket.
Powessist - Increase in the electrical capacity of the port or generator takes (800VA / 2000VA)
When a power peak is required for a short period of time, as often passes, the Multiplus will immediately compensate the possible power lack of the network or generator with battery power. When the load is reduced, the remaining power is used to recharge the battery.
High starter power
Need to start loads with a high stream of irruption, as converters for LED, halogen or power tools.
Search mode
When the search mode is activated, the inverter consumption in load without load decreases approximately 70%. In this mode the multi, when it works in Inverter mode, it shuts down if there is no charge or if there is very low, and it is reconnected every two seconds for a short period of time. If the output current exceeds a pre-established level, the inverter will continue to work. Otherwise, the inverter will turn off again.
Programmable relay
The programmable relay is configured by default as alarm relay, that is, the relay will be de-energized in case of prior alarm or alarm (the inverter is too hot, the ripple of the input is almost too high and the battery voltage is too low).
ON / OFF / CHARGER ON remote connector
Three-pole connector
Data sheet
- Product
- Cargador e Inversor
Charger
Investor
- Voltaje carga
- 12V
