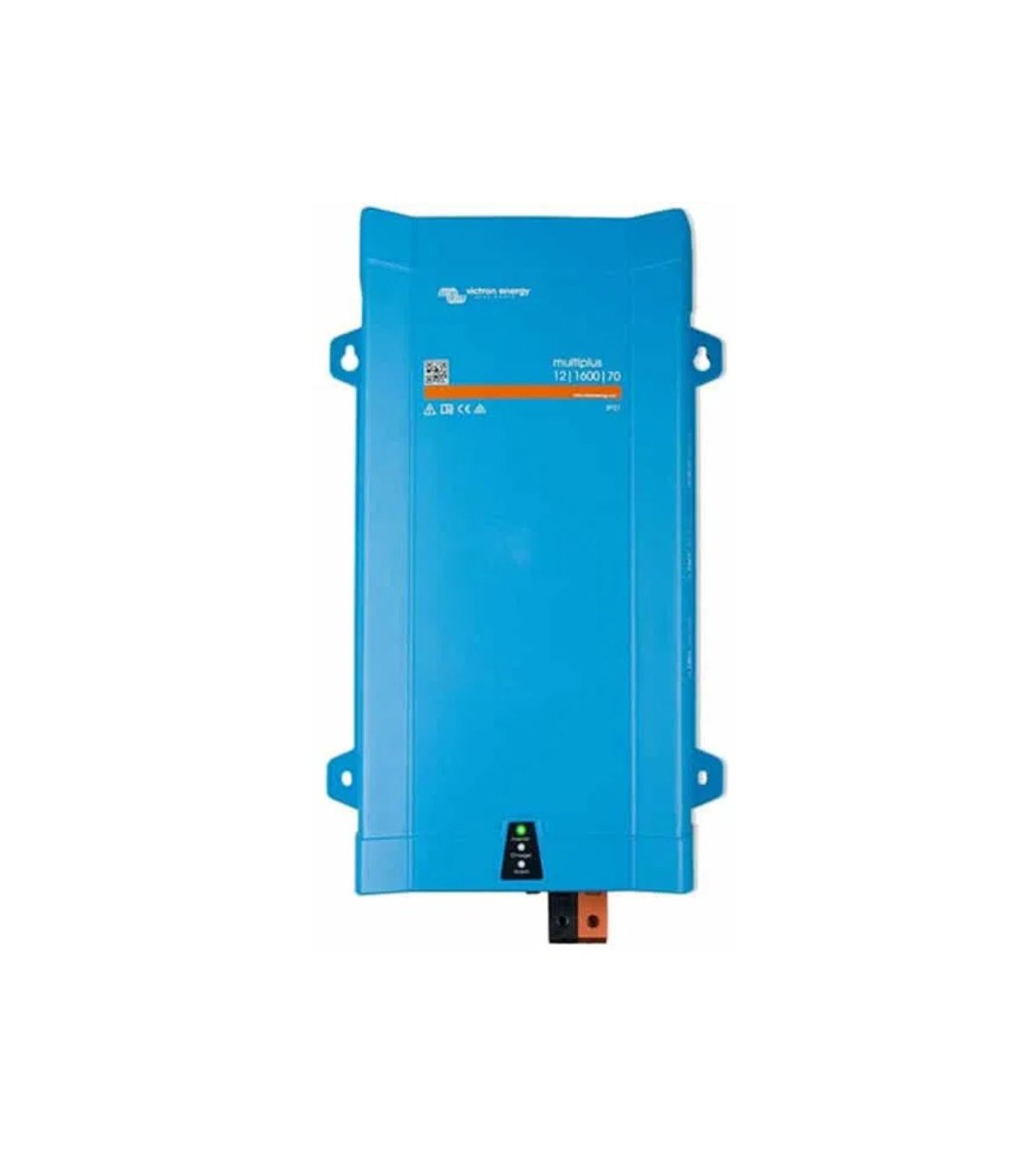

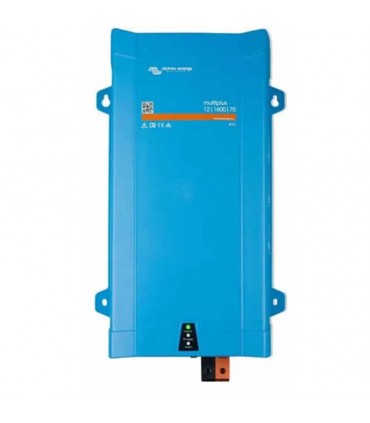

Inverter / Charger Victron Multiplus 12/1600 / 70-16 230v Ve.bus - PMP122160000

When a power peak is required for a short period of time, as often passes, the Multiplus will immediately compensate the possible power lack of the network or generator with battery power. When the load is reduced, the remaining power is used to recharge the battery.

Powessist - Increase in the electrical capacity of the port or generator socket.

A maximum current from the generator or scratch can be established in the multi control panel. The Multiplus will have charge of other AC loads and will use the remaining current for the load, thus avoiding overloading the generator or the port socket.

High starter power

Need to start loads with a high stream of irruption, as converters for LED, halogen or power tools.

Search mode

When the search mode is activated, the inverter consumption in load without load decreases approximately 70%. In this mode the multi,

When it works in Inverter mode, it shuts down if there is no charge or if there is very little, and it is reconnected every two seconds for a short period of time. If the output current exceeds a pre-established level, the inverter will continue to work. Otherwise, the inverter will turn off again.

Programmable relay

The programmable relay is configured by default as alarm relay, that is, the relay will be de-energized in case of prior alarm or alarm (the inverter is too hot, the ripple of the input is almost too high and the battery voltage is too low).

ON / OFF / CHARGER ON remote connector

Three-pole connector

The first configuration can be done in Solar Energy Fusion at no extra charge for your fully customized equipment.
