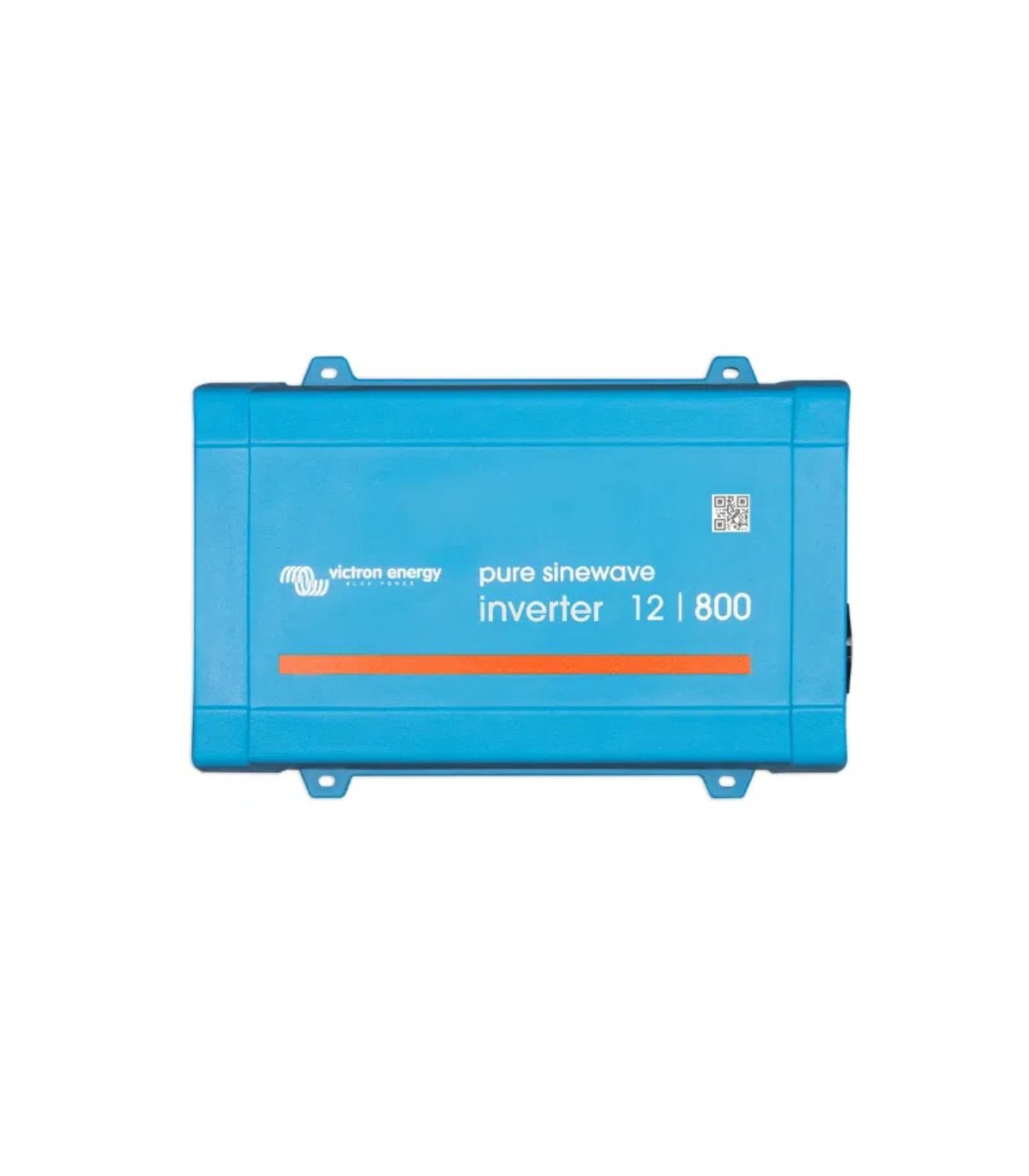

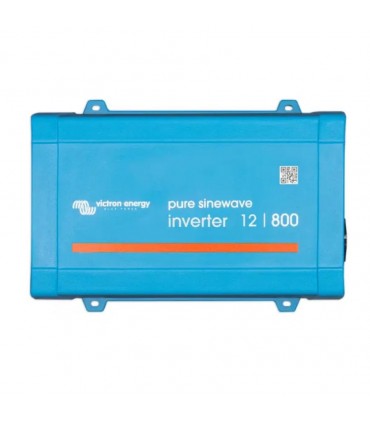

Victron Inverter Phoenix 800W 12/800 230V See Direct Schuko - PIN121801200

Isolated Inverter Victron Phoenix VE.Direct Schuko 12V / 800VA. Victron Phoenix investors allow feeding 230V / 120V CA domestic equipment with batteries.

Features:

Communication port VE.Direct

Port VE.Direct You can connect to:

• A computer (an interface cable is needed VE.Direct to usb)

• Apple and Android Smartphones, Tablets, Mackbooks and other devices (A backpack is needed VE.Direct to Bluetooth SMART)

Fully configurable

Trigger levels of the alarm and reset by low battery voltage.

LEVELS OF DISCONNECT AND RESTARE BATTERY TENSION.

Output voltage 210 - 245V.

Frequency 50 Hz or 60 Hz.

ON / OFF ECO mode and ECO-level sensor.

Follow-up: voltage and input / output current Alarms.

Proven reliability

The complete bridge topology More Toroidal transformer has demonstrated its reliability over many years. Inverters are short-circuited and protected against overheating, either due to an overload or at a high ambient temperature.

High starter power

Necessary to boot loads as converters for LED lamps, halogen or power tools.

Eco mode

In ECO mode, the inverter will be on hold when the load falls below a default value. Once on hold, the inverter will be activated briefly (adjustable; by default: every 2.5 seconds). If the load exceeds the predetermined level, the inverter will remain on.

Remote ON / OFF switch

A remote ON / OFF switch can be connected to a biphasic connector or between the battery positive and the contact on the left of the biphasic connector.

LED diagnosis.

Investor voltage 12 V

Inverter 5.5 kg

Inverter Dimensions 105 x 216 x 305 mm

Protection class Ip21

Entrance voltage 12 V

Nominal output power (W) 800 VA

Output power 800 VA

Power peak (W) 1500 W

Tension / Frequency AC output 230VCA +/- 3% 50Hz or 60Hz +/- 0.1%

Wave Pure

Warranty 5 years

Inverter type For Isolated Housing

See. Direct Yes
