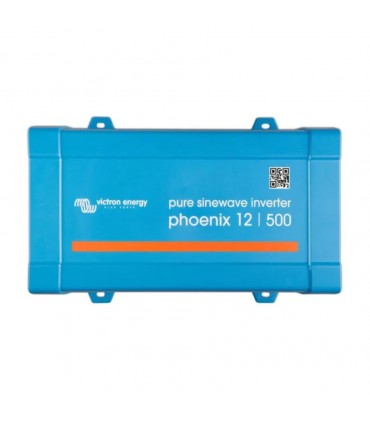

Inverter Victron Phoenix 500W 12/500 230V See Direct Schuko - PIN121501200

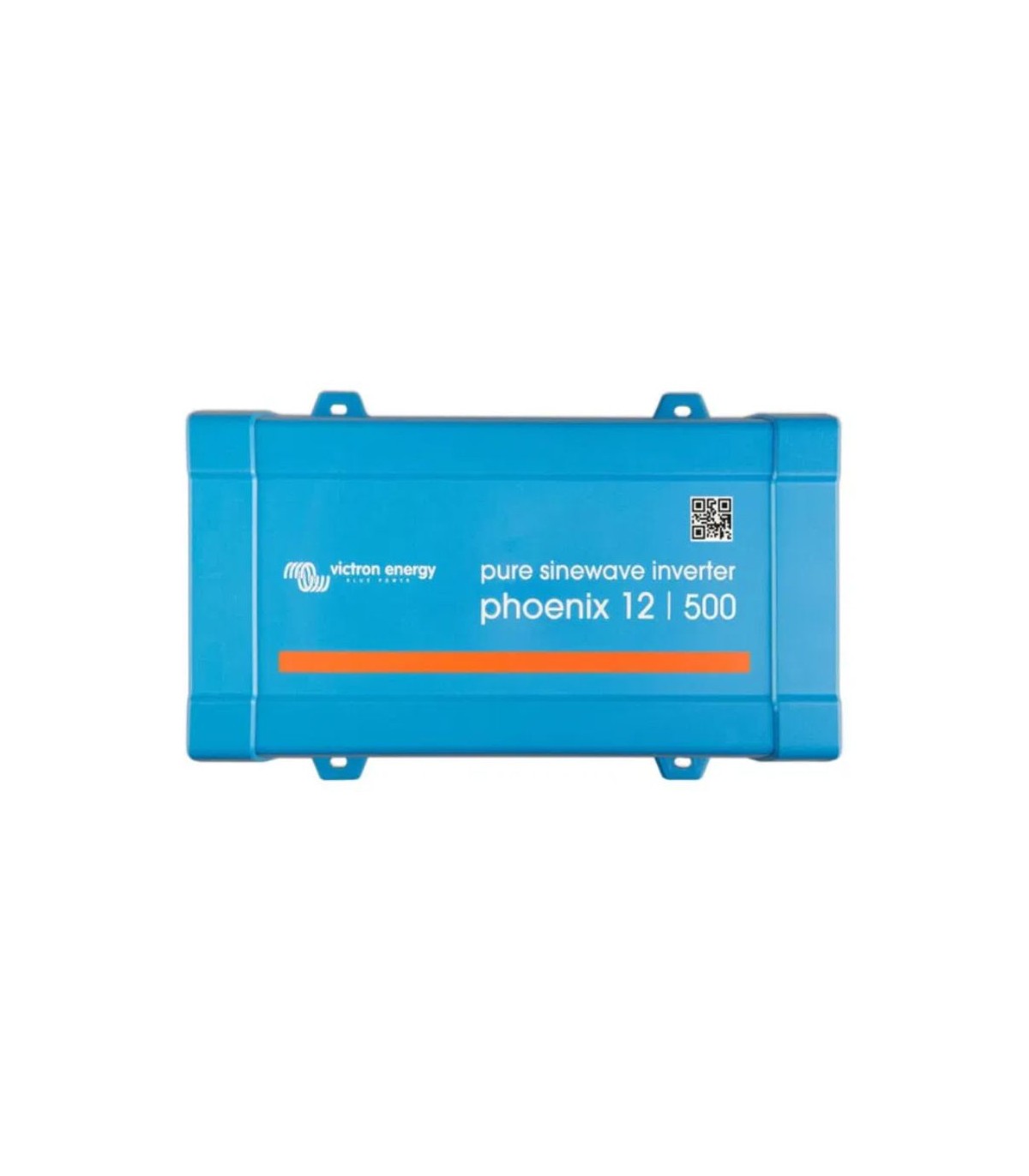

The Victron Phoenix Inverter 12/500 VE.Direct - 230v. 50 Hz Schuko is a pure wave current inverter of the Phoenix range with a power of 500W of DC25 (1000W peak) to 12V voltage. Convert your 12V installation to a 220V system to connect any domestic device to your system in a totally safe manner, relying on the leading brand in electronic equipment for clean energies. The Victron Pin121501200 inverter has pure wave sinusoidal output, provides a high clean and stable power with impeccable efficiency.
Victron Phoenix investors also allow parallel connection of up to 6 inverters in single-phase, biphasic and three-phase configuration to increase power of power installation gradually. Undoubtedly, Victron Energy has become a world reference in the world and the world of clean energies in general thanks to its famous pure wave investors like this Victron Phoenix 12/500 VE.Direct - 230v. 50 Hz. Schuko. Trust the Victron Energy experience to convert your installation into a secure stable installation.
Features:
- Communication port See.Direct
Port VE.Direct You can connect to:
• A computer (an interface cable is needed VE.Direct to usb)
• Apple and Android Smartphones, Tablets, Mackbooks and other devices (A backpack is needed VE.Direct to Bluetooth SMART)
Fully configurable:
• Trigger levels of the alarm and reset by low voltage of the battery.
• Disconnecting and reset levels by low battery voltage.
• Dynamic disconnection: load-dependent disconnection level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ON / OFF ECO mode and ECO mode level sensor Track: • Input / output / output current,% loading and alarms
- Tested reliability
The complete bridge topology More Toroidal transformer has demonstrated its reliability over many years. Inverters are short-circuited and protected against overheating, either due to an overload or at a high ambient temperature.
- Eco mode
In ECO mode, the inverter will be on hold when the load drops below a default value (minimum load: 15W). Once on hold, the inverter will be activated briefly (adjustable; by default: every 2.5 seconds). If the load exceeds the predetermined level, the inverter will remain on.
- ON / OFF remote control switch
A remote ON / OFF switch can be connected to a biphasic connector or between the battery positive and the contact on the left of the biphasic connector.
Range Phoenix
Volt (V) 12
Continuous power (W) 500
Max (W) power 1000
Long (mm) 86
Width (mm) 172
High (mm) 275
Weight (kg) 3,9
Guarantee (months) 60
