Transducer Airmar cascades 600W SS60 20o 50-200Khz 000-13786-001

Transducer Airmar cascades 600W SS60 12o 50-200Khz 000-13785-001

Transducer Airmar tray 600W SS75M 0o Chip medium 80-130Khz 000-13908-001

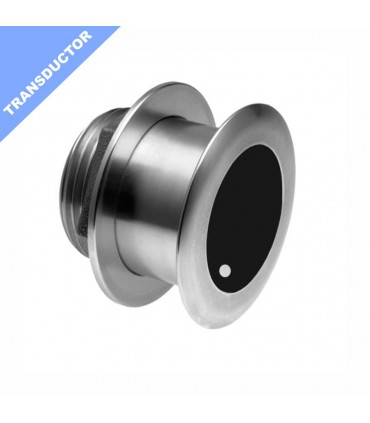

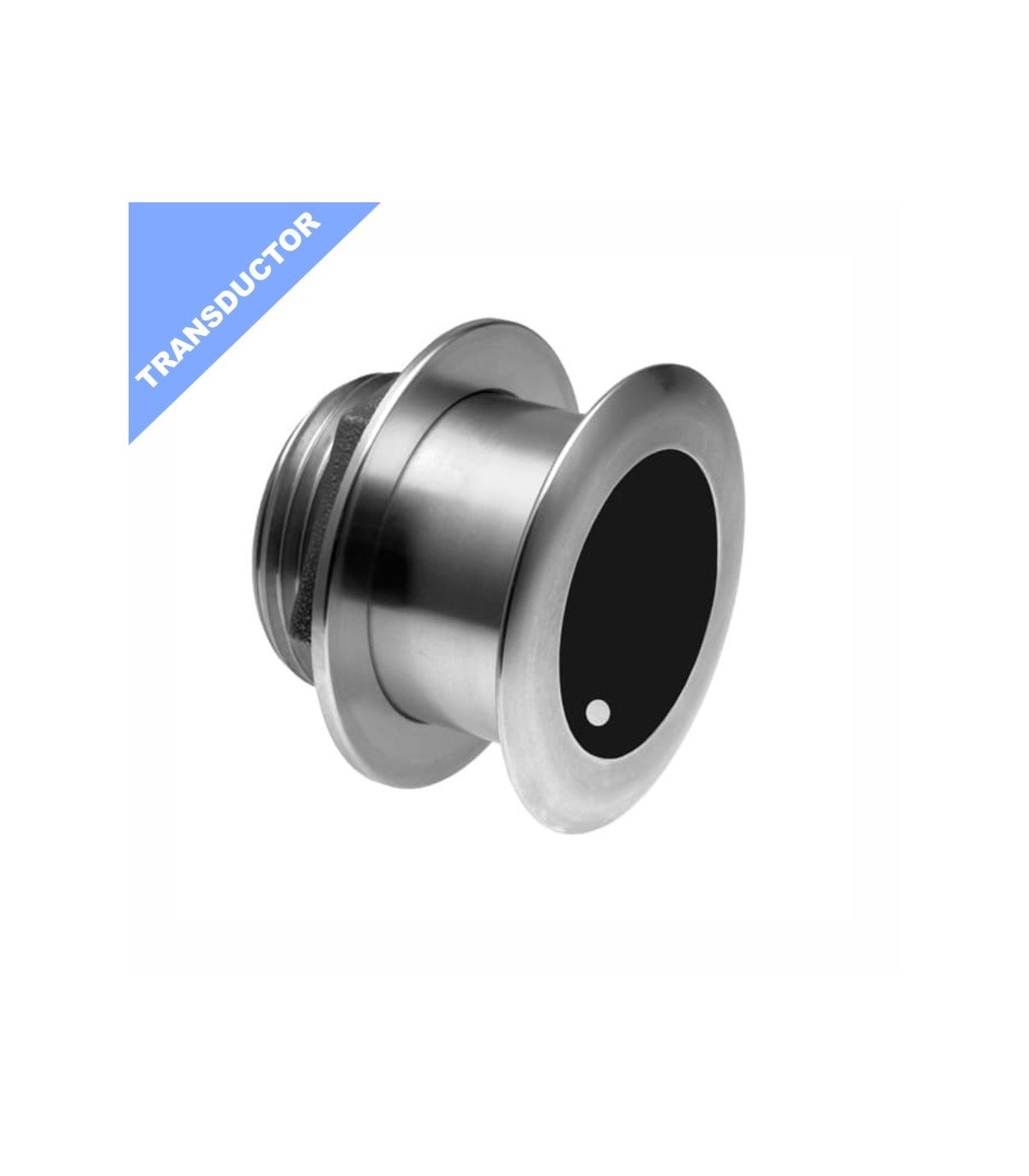

The SS60 is a 600 W, 50/200 kHz transducer that integrates the popular Tilted Element functionTMby Airmar.Inclined element transducers have the ceramic element fixed at an angle of 20°, 12° or 0° inside the housing.The transducer is installed almost to the hull and the inclination of the element corrects the hull pantoque by directing the beam down.This ensures maximum echo return to the transducer and more accurate depth readings.

Features

Water depth and temperature
600W
Double frequency element:
- 50 kHz with a wide beam width of 45° for depth performance up to 353 m (1200')
- 200 kHz with a 12° beam width for depth performance up to 206 m (700')
Perfect for boats with central console or tow
The low profile protuberance extends only 5 mm (3/16") out of the helmet
No effect on the performance of your boat
Stainless steel housing for use in all helmet materials

Inner coverage calculator
