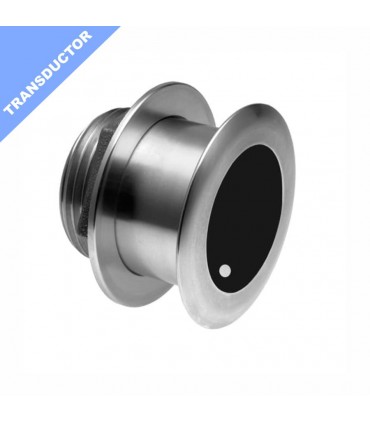

The SS60 is a 600 W, 50/200 kHz transducer that integrates the popular Tilted Element functionTMby Airmar.Inclined element transducers have the ceramic element fixed at an angle of 20°, 12° or 0° inside the housing.The transducer is installed almost to the hull and the inclination of the element corrects the hull pantoque by directing the beam down.This ensures maximum echo return to the transducer and more accurate depth readings.
Available in three models of tilted elements:
- Fixed tilted version of 20° for helmet trousers from 16° to 24°
- 12° fixed incline for helmet trousers from 8° to 15°
- 0° fixed tilted version for helmet trousers from 0° to 7°
€422.78
(tax incl.)
€480.43
Reference:
942002416516
Brand:
Love0
Add to compare0
Add to wishlist
Features
- Water depth and temperature
- 600W
- Double frequency element:
- 50 kHz with a wide beam width of 45° for depth performance up to 353 m (1200')
- 200 kHz with a 12° beam width for depth performance up to 206 m (700')
- Perfect for boats with central console or tow
- The low profile protuberance extends only 5 mm (3/16") out of the helmet
- No effect on the performance of your boat
- Stainless steel housing for use in all helmet materials
942002416516
Data sheet
- Product
- transducer
- Transducing power
- 600w
- Transducing material
- Stainless steel
- Type of transducing assembly
- Under profile
- Angle transducing inclination
- Twelfth
- Tecnología/Transductores
- 50/200 khz
- Depth approx.
- 350m
- Technology/Transducers
- Frecuencia fija
- Transducing channels
- Monochannel
- Compatibilidades
- Elite FS-1Kw
Go-600W
HDS Live-1Kw
It shall be capable of operating at a speed exceeding 300 km/h
NSO-1Kw
NSS-1Kw
NSX-1Kw
S2000 to 1 kW
