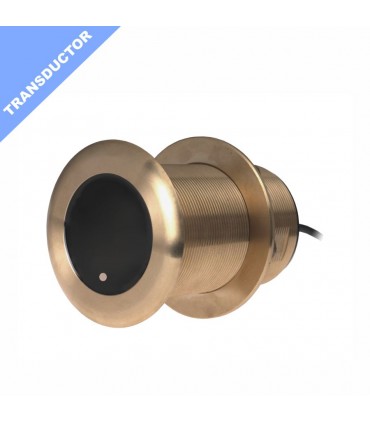

The B150M offers an excellent combination of yield in shallow and deep waters.Operating in a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths of up to 183 m (600') with an ultra clear target resolution.
Transducers Tilted ElementTMhave the ceramic element fixed at an angle of 20°, 12° or 0° inside the housing.The transducer is installed almost to the hull.The inclination of the element corrects the fall of the helmet by guiding the beam directly down.This ensures the maximum echo return to the transducer for more accurate depth readings.
€498.10
(tax incl.)
€566.03
Reference:
942002416332
Brand:
Love0
Add to compare0
Add to wishlist
Features
- Rapid response water depth and temperature sensor
- 300 W with depth performance of 183 m (600')
- Average frequency: 95 to 155 kHz
- The beam widths from 26° to 17° put more energy on the goals for a large separation of targets
- 60 kHz total bandwidth from an ideal transducer for coastal or bajura fishing
- The narrow beam angles are perfect for detecting fish that remain close to suspended structures and fish
- Ideal for freshwater, bajura or coastal fishing in shallow depths to mediums
- The low profile housing provides a good resolution at high speed when properly installed
- Bronze housing for use in scaling helmet, planning or displacement
- 12° fixed incline for helmet trousers from 8° to 15°
942002416332
Data sheet
- Product
- transducer
- Transducing power
- 300w
- Transducing material
- Bronze
- Type of transducing assembly
- Under profile
- Angle transducing inclination
- Twelfth
- Tecnología/Transductores
- 95/155Khz
- Depth approx.
- 180m
- Technology/Transducers
- Chirp medium
- Transducing channels
- Monochannel
- Compatibilidades
- Elite FS-1Kw
Go-600W
HDS Live-1Kw
NSO-1Kw
NSS-1Kw
NSX-1Kw
S2000 to 1 kW
