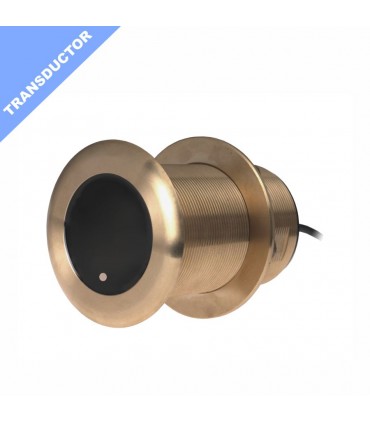

The B150M offers an excellent combination of yield in shallow and deep waters.Operating in a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths of up to 183 m (600') with an ultra clear target resolution.
Transducers Tilted ElementTMhave the ceramic element fixed at an angle of 20°, 12° or 0° inside the housing.The transducer is installed almost to the hull.The inclination of the element corrects the fall of the helmet by guiding the beam directly down.This ensures the maximum echo return to the transducer for more accurate depth readings.
Available in three models of tilted elements:
|
Features
|
Data sheet
- Product
- transducer
- Transducing power
- 300w
- Transducing material
- Bronze
- Type of transducing assembly
- Under profile
- Angle transducing inclination
- 0o
- Tecnología/Transductores
- 95/155Khz
- Depth approx.
- 180m
- Technology/Transducers
- Chirp medium
- Transducing channels
- Monochannel
- Compatibilidades
- Elite FS-1Kw
Go-600W
HDS Live-1Kw
NSO-1Kw
NSS-1Kw
NSX-1Kw
S2000 to 1 kW
