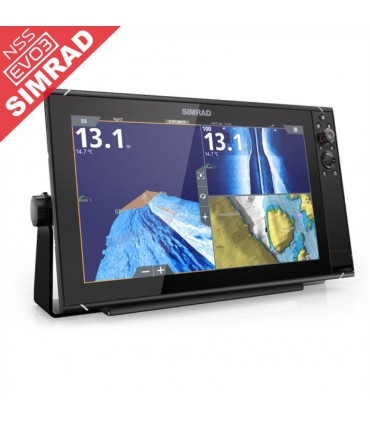

GPS Plotter Simrad NSS16 evo3 000-13240-001

NSS evo3 displays let you control your boat your way. With them, you can seamlessly transition from intuitive touchscreen control with multi-touch gestures to a full embedded keyboard with a rotary control knob. All display functions can be controlled via touchscreen or keyboard, with the flexibility to use those controls that best suit the current conditions and the task at hand.

Read moreShow less
€5,722.27 (tax incl.) €6,502.58
In stock. Available in 1 to 7 days.
Reference:
942002415410
Brand:

Recommended Accessories

Accesorios electronica

C-Map Discover L:Canaries, Madeira/Azores M-EW-Y209-MS

C-Map Discover L:Canaries, Madeira/Azores M-EW-Y209-MS

€124.22
Cartografia C-Map Reveal Larga - West of Europe M-EW-Y228-MS

Cartografia C-Map Reveal Larga - West of Europe M-EW-Y228-MS

€191.64
Cartografia C-Map Reveal Larga - Southwest of Europe M-EM-Y076-MS

Cartografia C-Map Reveal Larga - Southwest of Europe M-EM-Y076-MS

€191.64
Cartografia C-Map Discover Norte de España M-EW-Y207-MS

Cartografia C-Map Discover Norte de España M-EW-Y207-MS

€125.10
Cartography C-Map Discover West Mediterranean M-EM-Y200-MS

Cartography C-Map Discover West Mediterranean M-EM-Y200-MS

€125.10
Love0
Add to compare0
Add to wishlist
You may also like
No items
Description

Key features

  • 16-inch SolarMax™ Widescreen HD Display
  • Reliable control in all conditions: Easily switch between multi-touch control and a full keyboard with rotary knob
  • Integrated echo sounder with dual channel CHIRP, ForwardScan® sonar and StructureScan® HD imaging
  • Incorporate StructureScan® 3D imaging, advanced Broadband Sounder™ features and much more with Simrad modules
  • Expand your views with Halo™ pulse compression radar, Broadband 3G™/4G™ and other Simrad radar solutions
  • Take full control of Simrad autopilot systems with the NSS evo3 touchscreen or keypad
  • NMEA 2000® connectivity module allows control of engine, sound system and much more
  • Navigate with precision thanks to the integrated high-gain 10 Hz GPS/GLONASS receiver
  • Enjoy easier route planning with TripIntel™ technology and compatibility with Navionics Autorouting and Jeppesen Easy Routing
  • Wi-Fi GoFree™ technology enables online features, monitoring and control via smartphones and tablets
  • Choose from a low-profile glass bridge flush-mount system or bracket mounting for installation virtually anywhere
  • Includes basic world map

16-inch SolarMAX™ Widescreen HD Display
SolarMAX™ HD display technology revolutionizes the way you view on-board electronics, with high-definition graphics and excellent visibility in all conditions. See the screen clearly from any position, sitting or standing, thanks to extra-wide viewing angles. Bright LED backlighting and an anti-reflective coating improve daytime visibility; SolarMAX™ HD displays are designed to withstand the heat of the summer sun with maximum reliability and are perfect for outdoor installations. These screens, suitable for all types of weather conditions, incorporate a protection glass to prevent condensation and never fog up. At all times, whatever the conditions, SolarMAX™ HD displays give you the best viewing quality.

Reliable control in all conditions
NSS evo3 displays let you control your boat your way. With them, you can seamlessly transition from intuitive touchscreen control with multi-touch gestures to a full embedded keyboard with a rotary control knob. All display functions can be controlled via touchscreen or keyboard, with the flexibility to use those controls that best suit the current conditions and the task at hand. NSS evo3's full keyboard controls also allow you to lock the touch screen and use the classic button-and-rotary interface without the need for a separate keyboard.

Integrated echo sounder
All NSS evo3 displays feature an integrated echosounder module with a host of Simrad sonar technologies tailored to many sport fishing and boating applications. HD StructureScan® imaging combines DownScan and SideScan sonar to generate photo-quality views of fish school structure, while award-winning ForwardScan® sonar offers a safer boating experience, with a clear view of the bottom you're looking for. in front of. Broadband Sounder™ technology provides CHIRP-enabled fish finding sonar that includes support for the TotalScan™ all-in-one transducer or dual-channel CHIRP transducers. Dual channel transducers cover multiple depth ranges and cone angles in a single unit, perfect for targeting specific parts of the water column in sportfishing applications. Two transducer ports allow StructureScan® HD or ForwardScan® and CHIRP or traditional sonar to be used simultaneously.

Compatible with Simrad expansion modules
NSS evo3 displays are compatible with Simrad expansion modules, including the revolutionary StructureScan® 3D imaging system, the advanced Broadband Sounder S5100 with CHIRP, and many other plug-and-play network modules. Module capabilities can be shared between multiple NSS evo3 displays and the ability to add modules at any time means the Simrad display system can easily grow and evolve with your navigational interests and technology needs.

Radar system control
Expand your views with Halo™ pulse compression radar, Broadband Radar™ or HD digital radar solutions. NSS evo3 displays integrate with these networked Simrad radar solutions to provide a complete radar interface with easy preset modes, custom manual tuning, MARPA target tracking, guard zones, overlay views and many other system dependent features radar of your choice.

Simrad autopilot integration
Take full control of the Simrad autopilot with the NSS evo3 touch screen or keypad. Set a course, hold against the odds, steer to a waypoint, or follow a complex route with simple on-screen controls. NSS evo3 displays can be used as the sole controller of a "black box" autopilot system or can be combined with dedicated autopilot controllers and wireless remote controls. A networked Simrad autopilot system can be controlled from any NSS evo3 display on board, a feature that is perfect for twin-helm vessels.

NMEA 2000® connectivity
NMEA 2000® connectivity, an industry standard, makes it possible to integrate a number of Simrad and third-party electronic systems, such as engine and fuel monitoring functions, digital instrumentation, AIS integration and control of the sound system, among many others.

Integrated 10Hz GPS receiver
All NSS evo3 displays include a built-in, high-speed, high-gain GPS/GLONASS receiver that updates its position ten times per second, a feature especially useful for effectively tracking the movement of very fast motorized vessels. For exterior bracket mount installations and flush mount installations on many fiberglass boats, this eliminates the need to purchase and install a separate GPS receiver. An optional external GPS receiver can be used as an auxiliary position source or in certain installations that prevent a clear GPS signal from reaching the integrated receiver.

Customizable function key
The NSS evo3 includes a user-programmable function key for on-the-fly access to chosen functions. With a single button, you have the possibility to access the function you use the most: navigation, autopilot or radar. You can also assign the button to a function you want close at hand, such as creating a MOB key for emergencies, a dedicated key to save sonar logs for Insight Genesis, or a key to lock the touch screen while using the keyboard or a controller external. You can select any two functions, one for a quick press and one for a long press.

TripIntel™ Technology
Designed for powerboats, TripIntel™ technology monitors and displays the key information you need to plan safe and enjoyable days at sea. Make smart decisions with fuel range overlays on charts, easily access current and future tide levels, and a detailed history of your past trips. While cruising, the cruise performance indicator makes it easy to adjust trim and throttle to achieve maximum fuel economy and stay in the 'green zone', thus maximizing distance and keeping fuel costs low.

Easier navigation thanks to automatic routing
Auto-routing brings the convenience of car navigation to your boat by helping you plot a route and get under way in less time. Simply select a destination and your NSS evo3 display will suggest the shortest and safest route taking into account currents and the dimensions of your boat. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Autorouting), and with Jeppesen CMAP MAX-N+ charts (Jeppesen Easy Routing).

Integrated GoFree™ Wi-Fi
Built-in GoFree™ Wi-Fi allows you to download charts from the Internet, create Insight Genesis maps, and easily update system-wide software. Find and purchase a wide variety of online charting resources at the GoFree™ Shop and download charts directly to your display's memory card while you're at the helm. Upload sonar logs saved on the display directly to the Insight Genesis cloud service to create detailed custom charts; a perfect way to explore your favorite inland and inshore fishing spots. GoFree™ Internet services can be used anywhere you have a Wi-Fi Internet connection.

Smartphone and tablet integration with GoFree™ Link
With the boat in the water, GoFree™ Wi-Fi and the free GoFree™ Link app allow you to view the NSS evo3 screen with an Apple iPhone or Android smartphone, as well as control it from an Apple iPad or Android tablet . Take the display with you anywhere on the boat to access charts, radar, sonar, engine data and much more, right where and when you need it.

Various mounting options
NSS evo3 displays can be easily bracket-mounted almost anywhere, or flush-mounted for the look of a fully integrated Glass Bridge system. These displays feature a low, flush-mount profile of just eight millimeters and the same sleek, contemporary styling as other Simrad Glass Bridge products such as multifunction displays, radar control units, fish finder, autopilot controllers, instruments and keypads. .

Maximum compatibility with mapping systems
Choose from a wide range of chart options to best suit your location and use with compatibility with C-MAP MAX-N+, Navionics, Insight, Insight Genesis and NV Digital charts. This model includes a basic world map.

General

Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Cartography included World basemap (no detailed charts)
Languages Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish
Other languages supported by Unlock:
Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi
Cartography supported Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Radar (inc. compatibility) Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar
External storage 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Weather SiriusXM via WM-3 (USA only), GRIB
Internal storage 16 GB
Sonar (inc. compatibility) Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 kHz, HDI. Sonar port 2: Single channel CHIRP, 50/200 kHz, TotalScan, LSS HD, ForwardScan.
Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
Gps Internal
AIS Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
Warranty Period 2 Years
Interface Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers, USB Mouse
Multimedia via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Autopilot Full auto pilot control and commissioning
Digital switching BEP C-Zone, Naviop

Network connections

N2K PGN's Receive only
59392 ISO Acknowledgment, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters , Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Sma ll Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,
Transmit and Receive:
61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs , 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect Configuration
Transmit only
65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
Ethernet 2 x 5 pin yellow connector x 1 Mbit
NMEA2000 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA0183 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
NMEA 0183 Sentences supported Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)
Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Video 2 x composite (RCA connectors) video inputs. Optional video/ data cable required (P/N 000-00129-001). HDMI out
Wifi Internal
Bluetooth Internal

Technical/environmental data

Dimensions (W x H x D) 437 x 256 x 98mm (117.19 x 10.08 x 3.82inch)
with bracket: 462 x 264 x 122 (18.19 x 10.39 x 4.80inch)
MountingType Bracket (Supplied) or panel mount
Weight 4.65kg (10.25lbs.)
Compliance CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002
EN 300 440-2, V1.4.2
Storage Temperature Range -20°C to +60°C (4°F to 140°F)
Waterproof rating IPX6 and 7
Operating Temperature Range -15°C to +55°C (5°F to 131°F)
Steering Modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Manoeuvres / Turn Patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

GPS navigation

Time to First Fix Cold start 50 sec, Satellite Reacquisition 5 sec
Correction WASS, MSAS, EGNOS, GLONASS
Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
GPS Receiver Channels 34 channels
Update rate 10Hz

Power

Supply Voltage 10 - 31.2V DC

Screen

Resolution 1920x1080
Screen Size and Type High Visibility SolarMax HD® IPS optically bonded TFT
Backlight Color White
Viewing Angles 80° top/bottom, 80° left/right

Read moreShow less
Product Details
942002415410

Data sheet

Product
GPS Plotter Sounder
Gama/family
IT'S ALL RIGHT
Size screen
16"
PMA Transductor
1 kW
