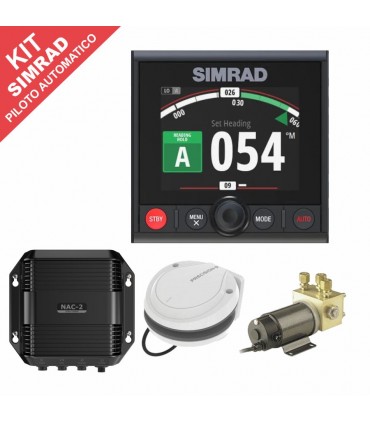

Simrad AP-44 VRF High Capacity Autopilot Pack 000-13562-001

Simrad AP44 VRF H Autopilot Pack consists of Simrad AP44 controller, Precision Compass 9, Simrad RPU160 hydraulic pump, NMEA 2000 wiring kit and Simrad NAC 3 processor. Complete Simrad autopilot pack for hydraulic steering designed for boats over 10 meters long. length (33 feet) . Suitable for power units that do not exceed 30 amps draw (50 amps peak). Includes Simrad RPU160 hydraulic pump.

Main features Simrad AP44 VRF H Autopilot Pack :

• New rotary control integrated in the Simrad AP44 display, very intuitive and easy to use. Very intuitive interface with only four buttons.
• 4.1-inch color screen
• Easy setup. Commissioning the Simrad AP44 autopilot has never been easier.
• Automatic tuning and calibration.
• Simrad Continuum steering technology based on Simrad software developed over sixty years in autopilots.
• Automated turn patterns that help us with fishing, diving or just making a quick and efficient "U" turn.
• Rudder heading sensor not required (optional)
• Autopilot tracking to seafloor contour
• Low profile design
• Low energy consumption
• Certified NMEA 2000 connectivity.

Simrad NAC 3 processor main features:

• Very reliable performance with new Simrad Continuum software steering technology.
• Recommended for boats over 10 meters in length (33 feet).
• Output for power unit 30 amps (Maximum 50 amps peak)
• Clutch output 3 amps maximum
• Compatible with power units, hydraulic, mechanical, hydraulic linear or low consumption solenoid valves.
• Virtual rudder sensor to simplify installation on boats with outboard motor, "Z" type tail, shafts...
• Compatible with Simrad RF25 helm sensors
• Plug and Play connectors for easy installation
• Certified NMEA2000 connectivity.

To properly choose the autopilot that can work with the hydraulic system of your boat, it is important to see the capacity of the hydraulic cylinder that is installed.

• Hydraulic cylinders from 80cc to 250cc can be operated with the Simrad Medium Capacity Autopilot pack (RPU80 hydraulic pump)
• Hydraulic cylinders from 160 to 550cc can be operated with the Simrad High Capacity Autopilot pack (RPU160 hydraulic pump)
• Hydraulic cylinders from 290 to 960cc can be operated with the Simrad High Capacity Autopilot pack (RPU300 hydraulic pump)

Simrad NAC 3 Processor Technical Data:

• Voltage: 12/24 volts
• Sealing/Protection: IPX7
• Weight: 0.7kg
• Dimensions: 211mm wide x 196mm high x 65.5mm deep.
• Maximum current for the power unit: 30A continuous and 50A peak
• Clutch output: 12/24 Vdc - min 10mA and max 3A
• Supports solenoids: Yes
• NMEA 2000: Yes (1 port)
• NMEA0183: Yes
• Compatible with Simrad multifunction display: Yes
• Dedicated Autopilot Control: Yes
• Virtual Rudder Feedback Unit: Yes
• Compatible with RF25N rudder sensor: Yes
• Compatible Simrad WR10 controls: Yes
• Compatible Simrad 80 series controls: Yes
• Compatible Simrad S35 controls: Yes
• External alarm: Yes

Simrad AP44 controller technical data:

• Dimensions: 118x115x28mm
• Weight: 0.32Kg
• Consumption: 1.8W (max.)
• Display size: 4.1"
• Colour: Black
• Resolution: 320x240 pixels
• Display type: Transflective TFT - LCD
• Lighting: White during the day and selectable at night: Red, Green, Blue...
• Sealing/Protection: IPX7

Simrad AP44 VRF High Capacity Autopilot Pack Includes:

• NAC-3 Control Box - Part Number 000-13250-001 (The brain of the Simrad autopilot)
• Simrad Precision-9 Compass - Part Number 000-12607-001 (High Precision Compass)
• Simrad AP44 Controller - Part Number 000-13289-001 (Autopilot Controller)
• Simrad RPU160 hydraulic pump 21118203 (For hydraulic cylinders from 160 to 390cc).
• NMEA 2000 wiring necessary for the connection of all the equipment of the pack
• Installation and operation manuals.
