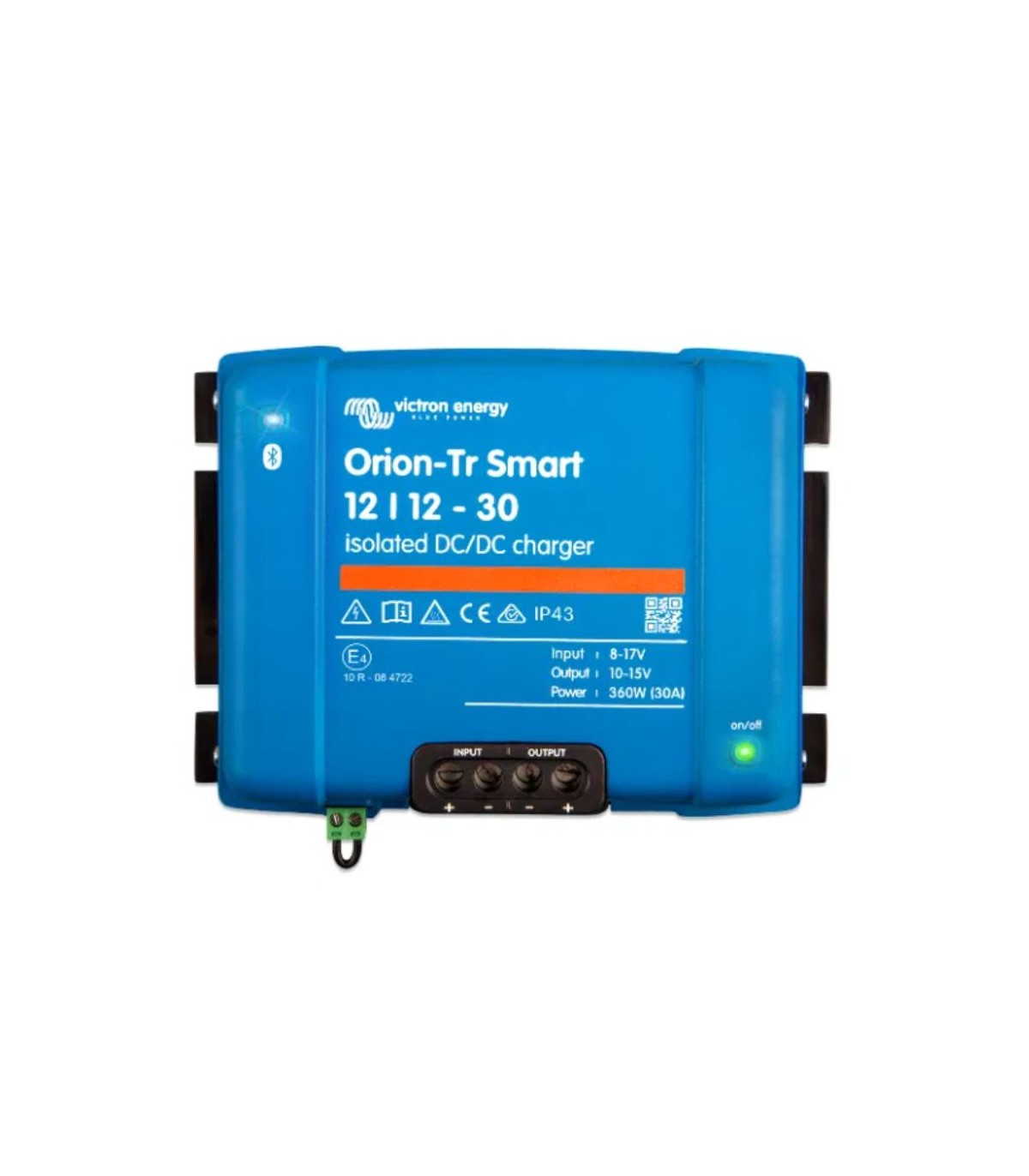

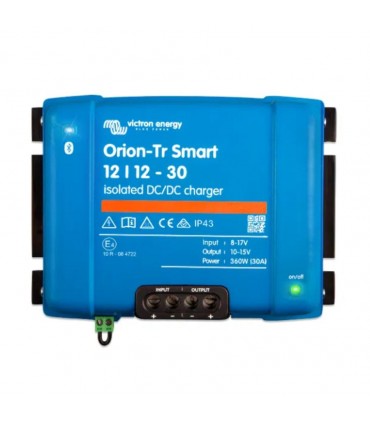

Cover Booster Charger Victron Orion-TR SMART 12 / 12-30A (360W) DC-DC Isolated
The ORION-TR SMART DC-DC charger is a professional 3-staged CC CC charger with built-in Bluetooth.
For use in double-battery systems in vehicles or ships where the alternator (smart) and the boot battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be controlled remotely using a remote on / off switch and has a motor detection mechanism.
The Orion TR-Smart charger can be used in 12V or 24V systems and is suitable for both lead and lithium batteries. There are models available up to 400W and multiple units can be connected in parallel to increase the output power.
Suitable for high temperatures up to 55 ° C with a full nominal output up to 40 ° C.
€261.00
(tax incl.)
Reference:
522302120320
Brand:
Love0
Add to compare0
Add to wishlist
Compatible with Bluetooth Smart
Any smartphone, tablet or other device with Bluetooth can be used to monitor, change the configuration and update the charger when there are new software features available.
Fully programmable
- Charging algorithm of the battery (configurable) or fixed output.
- Compatibility with the intelligent alternator: motor detection mechanism running.
3-stage adaptive load algorithm: Bulk - Absorption - Flotation
For lead-acid batteries it is important that during shallow discharges the absorption time is short to avoid battery overload. After a deep discharge, the absorption time is automatically increased to ensure that the battery is completely recharged.
For lithium batteries, the absorption time is fixed, by default 2 hours.
You can also choose a fixed output voltage.
On and remote shutdown
A remote power / off switch can be connected or a relay contact to a bipolar connector. Alternatively, the Herbal H (Law) of the Bipolar Connector can be connected to the positive of the battery, or the L (Left) terminal of the bipolar connector can be connected to the negative of the battery (or the chassis of a vehicle, for example).
All models are short-proof and can be parallel to increase the output current
An unlimited number of units can be connected in parallel.
Protected against high temperatures
The output current is reduced to an elevated room temperature.
IP43 Protection
When installed with the screw terminals facing down.
Screw terminals
No special tools are needed for installation.
Input fuse (not replaceable)
Brand: Victron Energy
Power (W): 360 W
Entrance voltage: 12 V
Exit voltage: 13.2 V
Output current:: 30 a
Entrance voltage: 8 - 17 VDC
Isolation: Isolated
Maximum efficiency (%): 87
BluetoothYes
ON / OFF remoteYes
Load function:
Input connections CA / CC: Screw terminals
Cables and other connections: 16 mm² (AWG6)
Dimensions and weight
Stop: 13
Width: 18.6
Long: 8
Weight: 1.8
