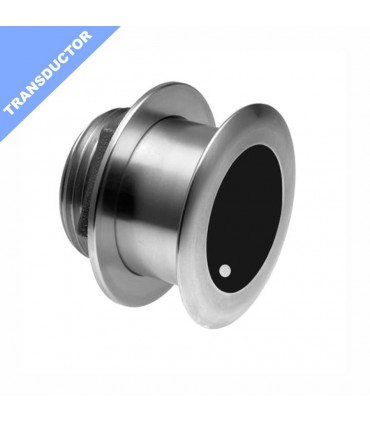

The low profile transducer models and compatible with Airmar Chirp are the perfect complement for smaller boats, such as the central consoles.The high frequency band offers a narrow beam width, excellent to locate fish that cling to shipwrecks, reefs and other structures.High frequency also offers an astounding separation of targets in bait fish and game fish.The SS75H transducer offers up to 80 kHz total bandwidth in one single installation to obtain amazing details of the bottom and resolution of fish targets.
SS75H transmits through the following bandwidth:
Transducers Tilted ElementTMhave the fixed element at an angle of 20°, 12° or 0° inside the housing.Because the transducer is installed almost to the hull, the inclination corrects the dead point of the hull.Orient the ceramic element horizontally to ensure that the echo returns to the transducer to the maximum. The SS75H is available in three tilted elements models:
|
Features
|
Data sheet
- Product
- transducer
- Transducing power
- 600w
- Transducing material
- Stainless steel
- Type of transducing assembly
- Under profile
- Angle transducing inclination
- 20th
- Tecnología/Transductores
- For the purposes of this Regulation:
- Depth approx.
- 200m
- Technology/Transducers
- Chirp high
- Transducing channels
- Monochannel
- Compatibilidades
- Elite FS-1Kw
Go-600W
HDS Live-1Kw
NSO-1Kw
NSS-1Kw
NSX-1Kw
S2000 to 1 kW
