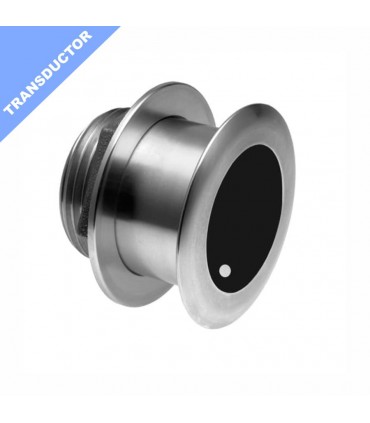

The low profile transducer models and compatible with Airmar Chirp are the perfect complement for smaller boats, such as the central consoles.The high frequency band offers a narrow beam width, excellent to locate fish that cling to shipwrecks, reefs and other structures.High frequency also offers an astounding separation of targets in bait fish and game fish.The SS175H offers up to 80 kHz total bandwidth in a single installation for superior performance in shallow waters and background details.
The SS175H transmits through the following bandwidth:
- High frequency 130 to 210 kHz
Transducers Tilted ElementTMhave the fixed element at an angle of 20°, 12° or 0° inside the housing.Because the transducer is installed almost to the hull, the inclination corrects the dead point of the hull.Orient the ceramic element horizontally to ensure that the echo returns to the transducer to the maximum.
The SS175H is available in three tilted elements models:
- Fixed tilted version of 20° for helmet trousers from 16° to 24°
- 12° fixed incline for helmet trousers from 8° to 15°
- 0° fixed tilted version for helmet trousers from 0° to 7o
Features
- Rapid response water depth and temperature sensor
- 1 kW with a maximum depth of 304 m (1000')
- High frequency: 130 to 210 kHz
- Width of beam from 10° to 6°
- 80 kHz total bandwidth of a transducer
- High frequency offers superior yield in shallow waters, bottom detail and fish separation and objectives
- The low profile housing provides a good resolution at high speed when properly installed
- Stainless steel housing for use in phased, planned or displacement helmet
Data sheet
- Product
- transducer
- Transducing power
- 600w
- Transducing material
- Stainless steel
- Type of transducing assembly
- Under profile
- Angle transducing inclination
- Twelfth
- Tecnología/Transductores
- For the purposes of this Regulation:
- Depth approx.
- 200m
- Technology/Transducers
- Chirp high
- Transducing channels
- Monochannel
- Compatibilidades
- Elite FS-1Kw
Go-600W
HDS Live-1Kw
NSO-1Kw
NSS-1Kw
NSX-1Kw
S2000 to 1 kW
