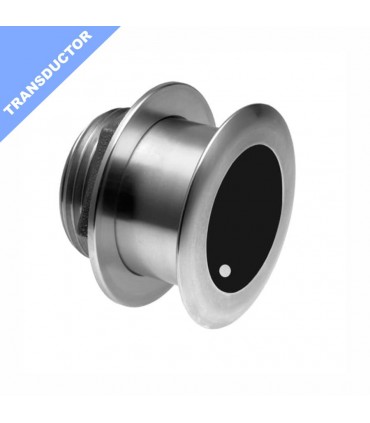

Airmar's Chirp-ready low profile transducer models are the perfect complement for smaller boats, such as the central consoles.The SS75M transducer offers up to 50 kHz total bandwidth in one single installation.It shows an incredible detail of the background in medium and shallow depths up to 274 m (900').
SS75M transmits through the following bandwidth:
Transducers Tilted ElementTMhave the fixed element at an angle of 20°, 12° or 0° inside the housing.The transducer is installed almost to the hull.The inclination of the element corrects the fall of the helmet by guiding the beam directly down.This ensures the maximum echo return to the transducer for more accurate depth readings. The SS75M is available in three tilted elements models:
|
Features
|
Inner coverage calculator
Data sheet
- Product
- transducer
- Transducing power
- 600w
- Transducing material
- Stainless steel
- Type of transducing assembly
- Under profile
- Angle transducing inclination
- Twelfth
- Tecnología/Transductores
- For the purposes of this Regulation:
- Depth approx.
- 270m
- Technology/Transducers
- Chirp medium
- Transducing channels
- Monochannel
- Compatibilidades
- Elite FS-1Kw
Go-600W
HDS Live-1Kw
NSO-1Kw
NSS-1Kw
NSX-1Kw
S2000 to 1 kW
