The average frequency offers the correct combination of coverage under the boat, extended depth range and the ability to produce returns of clean and accurate goals and structures in medium and deep waters.Operating in a frequency range of 85 to 135 kHz, this transducer detects fish at medium depths of up to 457 m (1500') and offers an ultra clear target resolution.

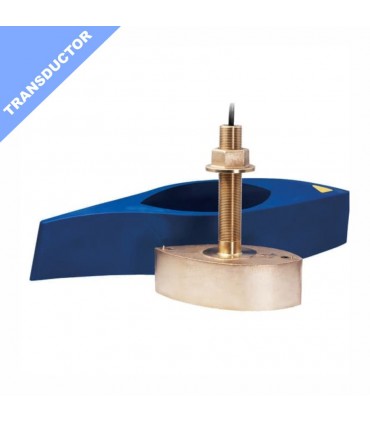

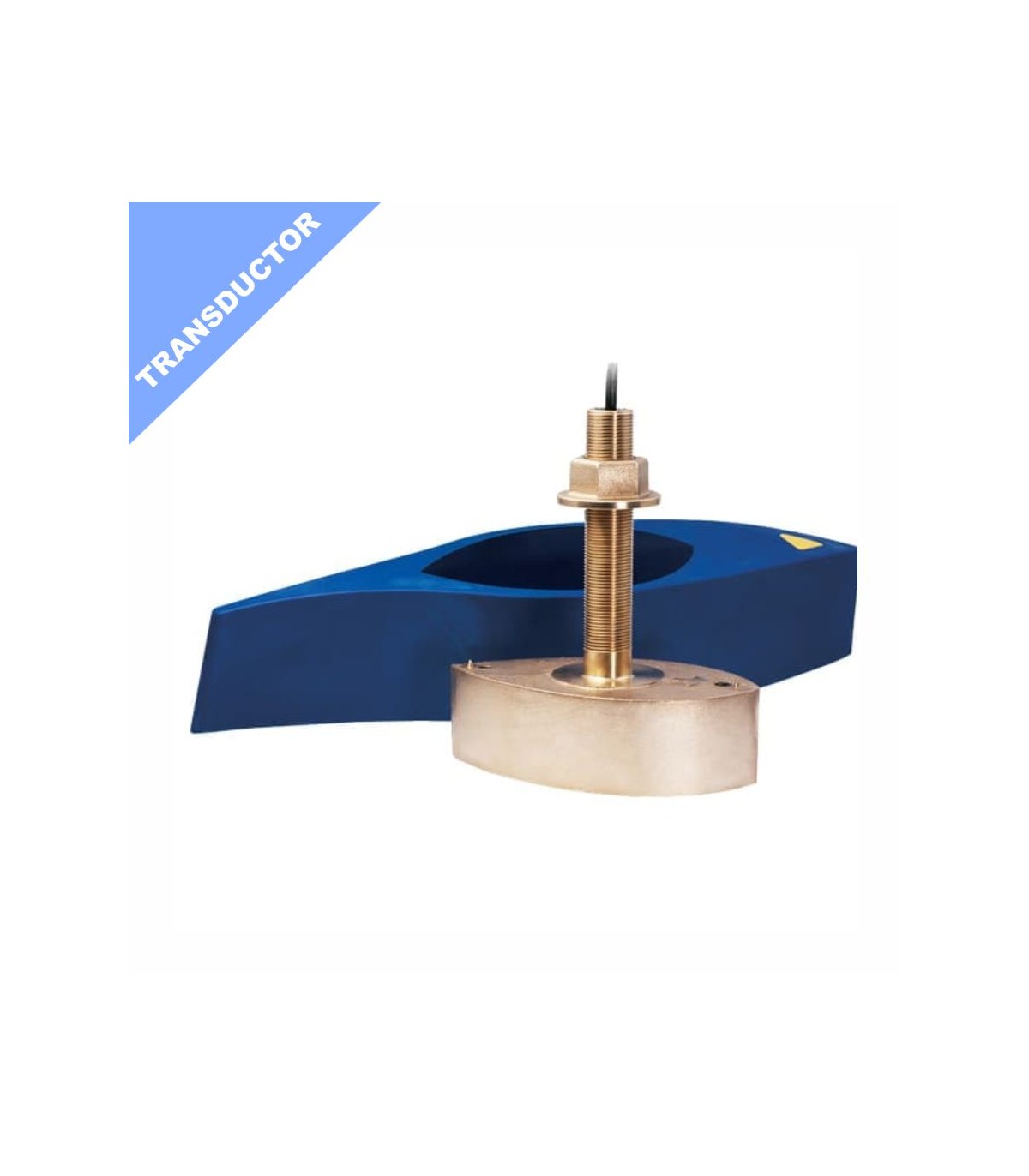

This model is also ideal for single channel probe applications where operating in Chirp mode provides a greater opportunity to see what is in the water column.Simply create preset settings for 85 and 135 kHz and alter between wide and narrow beams to explore an area and then identify the structure. High performance lacking included improves broadband performance at speeds above 30 knots (34 MPH). The B285M transmits through the medium frequency band from 85 to 135 kHz. |
Features
|
Data sheet
- Product
- transducer
- Transducing power
- 1 kW
- Transducing material
- Bronze
- Type of transducing assembly
- Cowboys with bark
- Angle transducing inclination
- No aplicable
- Tecnología/Transductores
- 85/135Khz
- Depth approx.
- 450m
- Technology/Transducers
- Chirp medium
- Transducing channels
- Monochannel
- Compatibilidades
- Elite FS-1Kw
Go-600W (limited)
HDS Live-1Kw
NSO-1Kw
NSS-1Kw
NSX-1Kw
S2000 to 1 kW
