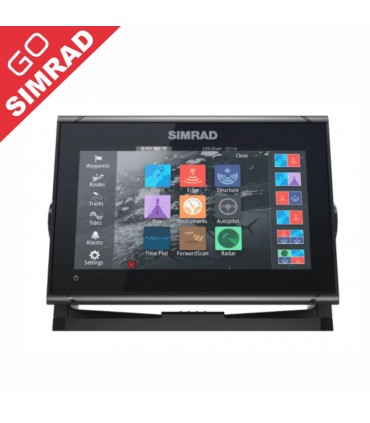

GPS Plotter Fishfinder Simrad GO9 XSE ROW NO XDCR without Transducer 000-14444-001

Add GPS navigation features, sonar compatibility, radar capabilities and more to your boat with the GO9 XSE – a perfect addition to smaller sport, center console and pleasure boats. Enjoy intuitive touchscreen control for a variety of optional accessories, from the autopilot to the on-board audio system. Take your screen anywhere on the boat with wireless mirroring capability on smartphones and tablets.

Read moreShow less
€894.52 (tax incl.) €1,016.50
Reference:
942002415367
Brand:

Recommended Accessories

Accesorios electronica

C-Map Discover L:Canaries, Madeira/Azores M-EW-Y209-MS

C-Map Discover L:Canaries, Madeira/Azores M-EW-Y209-MS

€124.22
Cartografia C-Map Reveal Larga - West of Europe M-EW-Y228-MS

Cartografia C-Map Reveal Larga - West of Europe M-EW-Y228-MS

€191.64
Briefcase waterproof box 361x289x120 c/foam 9"

Briefcase waterproof box 361x289x120 c/foam 9"

€64.20
Cartografia C-Map Reveal Larga - Southwest of Europe M-EM-Y076-MS

Cartografia C-Map Reveal Larga - Southwest of Europe M-EM-Y076-MS

€191.64
Cartografia C-Map Discover Norte de España M-EW-Y207-MS

Cartografia C-Map Discover Norte de España M-EW-Y207-MS

€125.10
Cartography C-Map Discover West Mediterranean M-EM-Y200-MS

Cartography C-Map Discover West Mediterranean M-EM-Y200-MS

€125.10
Complete battery kit Powerkit lithium 12V 10Ah

Complete battery kit Powerkit lithium 12V 10Ah

€108.90
Love0
Add to compare0
Add to wishlist
You may also like
No items
Description

Get more out of each day on your boat

Simrad's GO series displays are designed to help you get the most out of your time on the water and are a perfect addition to smaller sport, pleasure and center console boats. All of the exceptionally bright GO Series touchscreens come with a built-in GPS receiver and sonar, and feature wireless connectivity and industry-standard NMEA 2000® networking. Navigate, connect to mobile devices, control accessories like your own onboard sound system, and choose from a wide range of compatibility with built-in sonars to board with confidence or fish like a pro. The radar feature (available on GO7 and higher models) provides added safety and better fish-finding capabilities for when you're backcountry.

Multi-touch screen for intuitive tablet-like control

The GO series is very easy to use thanks to intuitive touch screen controls that will be very familiar to smartphone and tablet users. Personalize your home screen with the features you use the most and see all the data you need at a glance thanks to the adjustable split screen display. Mark waypoints on charts with just one touch and assign them names and symbols that are quick and easy to identify when planning your next trip.

Built-in GPS chartplotter keeps you on track

Every GO series display is a full-featured chartplotter and includes a built-in GPS receiver. Select from the wide variety of charts available in C-MAP and other options to get the best coverage of the roads in your area and your favorite recreational spots. Plus, you can also enjoy advanced chart features like C-MAP Easy Routing to make planning your next voyage as easy as planning a drive.

Both wired and wireless connectivity take your display beyond the helm

Built-in wireless connectivity lets you mirror your screen display on smartphones and tablets. Enjoy instant access to radar, charts and more from anywhere on the boat. The wireless connection also allows you to perform easy software updates using an Internet connection point. Industry-standard NMEA 2000® connectivity offers a wide range of expansion and integration options: monitor your boat's engine performance and fuel consumption, steer it with Simrad's autopilot capability, or control the in-flight entertainment system from the GO series screen.

Turn your screen into a sonar to locate fish

Add a sonar transducer (sold separately) and your GO series display acts as a powerful fish finder, complete with CHIRP technology for crystal-clear fish detection throughout the water column. Choose from the many options that best suit your boat: from traditional, cost-effective CHIRP transducers that offer classic fish-finding viewing, to StructureScan® HD imaging, where fishfinding structure in which the fish are found both around and under the boat is similar to that of a photograph.

3-in-1 Active Imaging Probe

3-in-1 Active Imaging™ sonar equipped with CHIRP, SideScan, and DownScan with FishReveal™ lets you see structure and the cover behind it in a new level of detail, sharper, and at a distance unthinkable with any other imaging technology. structures. The high degree of sharpness, target separation and detail of Active Imaging will help you locate more fish by quickly identifying the structures in which they are found, such as rocks, reefs, kelp beds and wrecks, at greater distance from the boat. Get the best out of CHIRP sonar and DownScan on one screen, with FishReveal™'s exclusive Smart Target view, which helps you easily recognize fish from structure and cover, thanks to DownScan images with a incredible level of detail.

HDI Skimmer® transducer locates fish and tracks depth

The transom-mounted HDI Skimmer® transducer serves as a fishfinder for the hobby fisherman and allows powerboat enthusiasts to keep an eye on depth. CHIRP technology allows you to clearly locate fish throughout the water column, while DownScan Imaging™ sonar generates a photo-like image of the fish structure below your boat. FishReveal™ technology brings these two special display modes together into a single image of fish and structure, with extraordinary sharpness.

TotalScan™ Transducer

Add the TotalScan transducer to your XSE GO system and get all your sonar technology in one package. TotalScan matches proven broadband Sounder™ and side-scan sonar with CHIRP and DownScan Imaging™ technology, making it possible to target fish and search for fish-holding structure with the same transducer.

Radar options

Radar compatibility increases voyage safety and fishing productivity. The GO7 XSR, GO9 XSE and GO12 XSE displays feature plug-and-play connectivity for Simrad's radar solutions for powerboats of all sizes, including Zodiacs and runabouts. Add a pulse-compression Broadband 3G™, Broadband 4G™, or Halo™ radar system to confidently navigate busy ports, navigate safely in low-visibility conditions, keep distant weather fronts in sight, and even locate flocks of feeding birds that lead you to fruitful fishing spots.

Main features

  • Widescreen display with bright LED backlight
  • Ease of use thanks to very simple, tablet-like touchscreen controls
  • Compatibility with Broadband 3G™/4G™ and Halo™ radars (GO7 models and above)
  • Compatibility with a wide variety of C-MAP charts and other options
  • View and control the screen from a compatible smartphone or tablet
  • Built-in support for CHIRP sonar, StructureScan® HD imaging, or ForwardScan™ sonar—just install a compatible transducer
Operating temperature range
"-15°C to +55°C (5°F to 131°F)
Storage temperature range
"-20°C to +60°C (4°F to 140°F)
Ethernet ports
1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
NMEA2000 connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
Weight
1.315kg (2.9lbs)
Supply voltage
10 - 17V DC
Update frequency
10Hz
Typical power consumption
12W
Brightness of the screen
1200 nits
SD card storage
2 Micro SD slots, max. 32GB each. >32GB format to NTFS
Warranty period
2 Years
Maximum power consumption
20W
Dimensions W x H x D
243mm x 171mm x 83mm (9.56" x 6.71" x 3.26") (no bracket)
GPS receiver channels
32 channels
Recommended fuse rating
3A
Waypoints, routes, tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Viewing angles
80° top/bottom, 80° left/right
Screen resolution
800x480
Internal storage
90MB
Government modes
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Autopilot
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Digital switching
BEP C-Zone
Mounting type
Bracket or Panel
Homologation Compliance
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Shock vibration
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Time to first repair
Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
NMEA 0183 sentences supported
Exports NMEA0183 over Wi-Fi
Radar Compatibility
Halo, Broadband, HD Radars
Position accuracy
Horizontal Accuracy 3 m (9.8 ft.)
Compatible Cards
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Probe Compatibility
Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
Wi-Fi for connectivity with articles
Internal
Bluetooth
Internal
Gps
Internal, 10Hz, WASS, MSAS, EGNOS
Degree of waterproofing
IPX 6 and 7
PC connectivity
None
Video
None
AIS
Receive AIS data over NMEA 2000 only
NMEA 2000 PGN
Receive only59392 ISO Acknowledgment, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters,Rapid Update,127489 Engine Parameters,Dynamic,127493 Transmission Parameters,Dynamic,127503 AC input status,127504 AC Output Status,127505 Fluid Level,127506 DC Detailed Status,127507 Charger Status,127508 Battery Status,127509 Inverter Status,129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure , 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage, Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Para meters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel28 Speed Configuration, 12990 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
Meteorology
SiriusXM via WM-3 (USA only), GRIB
Languages
Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic , German, Spanish, Farsi, French, Italian
Cartography included
TBD
Interface
Touch screen, OP40 or OP50 controller via NEA 2000
Maneuver turn patterns
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Multimedia
via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Correction
WASS, MSAS, EGNOS, GLONASS
Backlight color
White

Read moreShow less
Product Details
942002415367

Data sheet

Product
GPS Plotter Sounder
Gama/family
GO
Size screen
9"
PMA Transductor
600W
