copy of For the purposes of this Regulation, the following definitions shall apply:

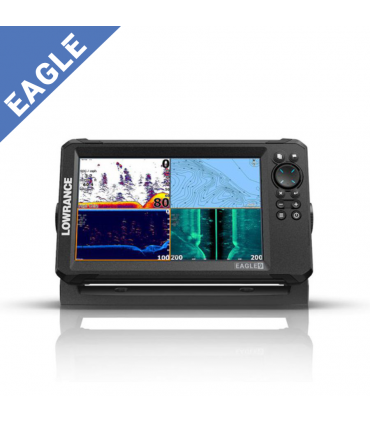

Eagle® was born to make fishing as easy and enjoyable as possible. Easy to use and install, this model features a newly designed SplitShotTM HD transducer with FishReveal technology and automatic adjustments for quick and optimal setup. A new IPS display provides higher resolution and visibility from all angles. In addition, this model includes a world base map and is compatible with CMAP®'s DISCOVERTM cards.

SplitShotTM HD transducer optimized with probe with automatic adjustment.
Basic world map.
IPS display, visible from all angles, even with polarized glasses.
New and reliable Twist-Lock connector system for easy installation on any boat or kayak.
SD card slot for software updates, recording add-ons and Genesis Live mapping.
FishRevealTM mode to better see hidden fish.
Increased contrast and visibility thanks to new image color palettes.


Read moreShow less
€564.04 €640.95
D Available at the end of April
Reference:
951012024269
Brand:

Recommended Accessories

Accesorios electronica

C-Map Discover L:Canaries, Madeira/Azores M-EW-Y209-MS

C-Map Discover L:Canaries, Madeira/Azores M-EW-Y209-MS

€124.22
Cartografia C-Map Reveal Larga - West of Europe M-EW-Y228-MS

Cartografia C-Map Reveal Larga - West of Europe M-EW-Y228-MS

€191.64
Complete battery kit Powerkit lithium 12V 10Ah

Complete battery kit Powerkit lithium 12V 10Ah

€108.90
Briefcase waterproof box 280X230X155 w/foam 7"

Briefcase waterproof box 280X230X155 w/foam 7"

€54.38
Cartografia C-Map Reveal Larga - Southwest of Europe M-EM-Y076-MS

Cartografia C-Map Reveal Larga - Southwest of Europe M-EM-Y076-MS

€191.64
Cartografia C-Map Discover Norte de España M-EW-Y207-MS

Cartografia C-Map Discover Norte de España M-EW-Y207-MS

€125.10
Cartography C-Map Discover West Mediterranean M-EM-Y200-MS

Cartography C-Map Discover West Mediterranean M-EM-Y200-MS

€125.10
Love0
Add to compare0
Add to wishlist
You may also like
No items
Description

EASY TO USE PROBE

Eagle® incorporates the legacy of the incredible Lowrance probes® to our most accessible and user-friendly probe to date.

New SplitShotTM HD Transducer is not available

Get the best views under the boat with SplitShot HD, which combines the high-frequency, wide-angle fish search capabilities of the CHIRP probe with the high-resolution images of fish structures provided by DownScan ImagingTM.

SOUNDING PROBE

The CHIRP probe provides high-resolution views of each fishing target, even when the targets are close to the bottom or suspended in narrow banks.

It's called DownScan Imaging


DownScan Imaging makes it easier to identify the position of fish in relation to a structure by providing images of rocks, trees and other underwater objects directly below the boat

FishRevealTM

Eliminates interpretation errors in fish identification with FishReveal, which combines DownScan with CHIRP to achieve unmatched separation and identification of targets.

Automatically adjusted

The simple probe with automatic adjustments gives you the optimal parameters right from the start so you don't have to waste time trying to find them yourself.

Detailed letters

With the base world map preinstalled, Eagle is compatible with DISCOVER® c-MAP or other card providers. Eagle gives you the options you need to discover the best fishing spots and navigate to them the way you want.

Compatible with C-MAP Discover®

Everything you need to make the most of your time on the water, with extensive coverage of coastal areas and inland waters in highly detailed and accurate maps. See things your way with C-MAP®.

It 's Genesis Live

Know your local waters better than anyone else thanks to the ability to create real-time custom contour maps with a bathymetric curve interval of just 15 cm (1/2 foot) from your local lake or unfamiliar waters.

New IPS SCREENS

See clearly wherever you go with the new IPS display, which offers improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.

NEW CONNECTOR SYSTEM

Installation in an instant thanks to Eagle's improved torsion lock connector, which ensures easy installation and disassembly at all times.


Technical specifications:

Screen Viewing angles 80° top/bottom, 80° left/right

Display brightness 1000 NITS

Color of the backlight Pure white LED

Resolution of the screen 800 x 480

Screen size 7 inches

Connectivity Storage of SD cards 1 slot (microSD® 32 GB maximum)

Mapmaking C-MAP® DISCOVERTM supported maps.

Electrical Recommended capacity of fuses 3A

Maximum power consumption 550 mA @ 12 V DC with backlight on full

Minimum power consumption 250 mA @ 12 V DC with backlight off

Typical power consumption 550 mA @ 12 V DC with backlight on full

The power supply voltage is 12v DC (10.8-17VDC)

Environment IPX7 with card door closed

Humidity 60°C, 95% relative humidity (RH) for 48 hours

Storage temperature range from 4°F to 140°F (-20°C to 60°C)

Operating temperature range 5°F to 131°F (-15°C to 55°C)

GPS correction SBAS

Time to first repair 45s

Multifunctional mapping included Worldwide basemap chart

Waypoints, routes, tracks 3000 Waypoints 100 Routes 100 Trails

Physical features Dimensions An. x Al. x Pr. for the purposes of this regulation, the following definitions apply:

Weight 0.67 kg (1.48 lb)

Compass safety 12" (300 mm)

Type of mount Gimbal bracket or dash mount

Other Interface Keypad: 8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power or backlight

Read moreShow less
Product Details
951012024269

Data sheet

Product
GPS Plotter Sounder
Gama/family
Eagle
Size screen
9"
Transducing power
600w
PMA Transductor
600W
