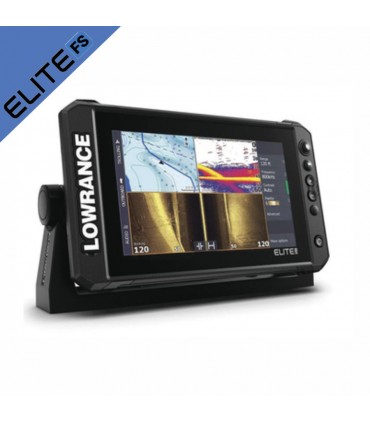

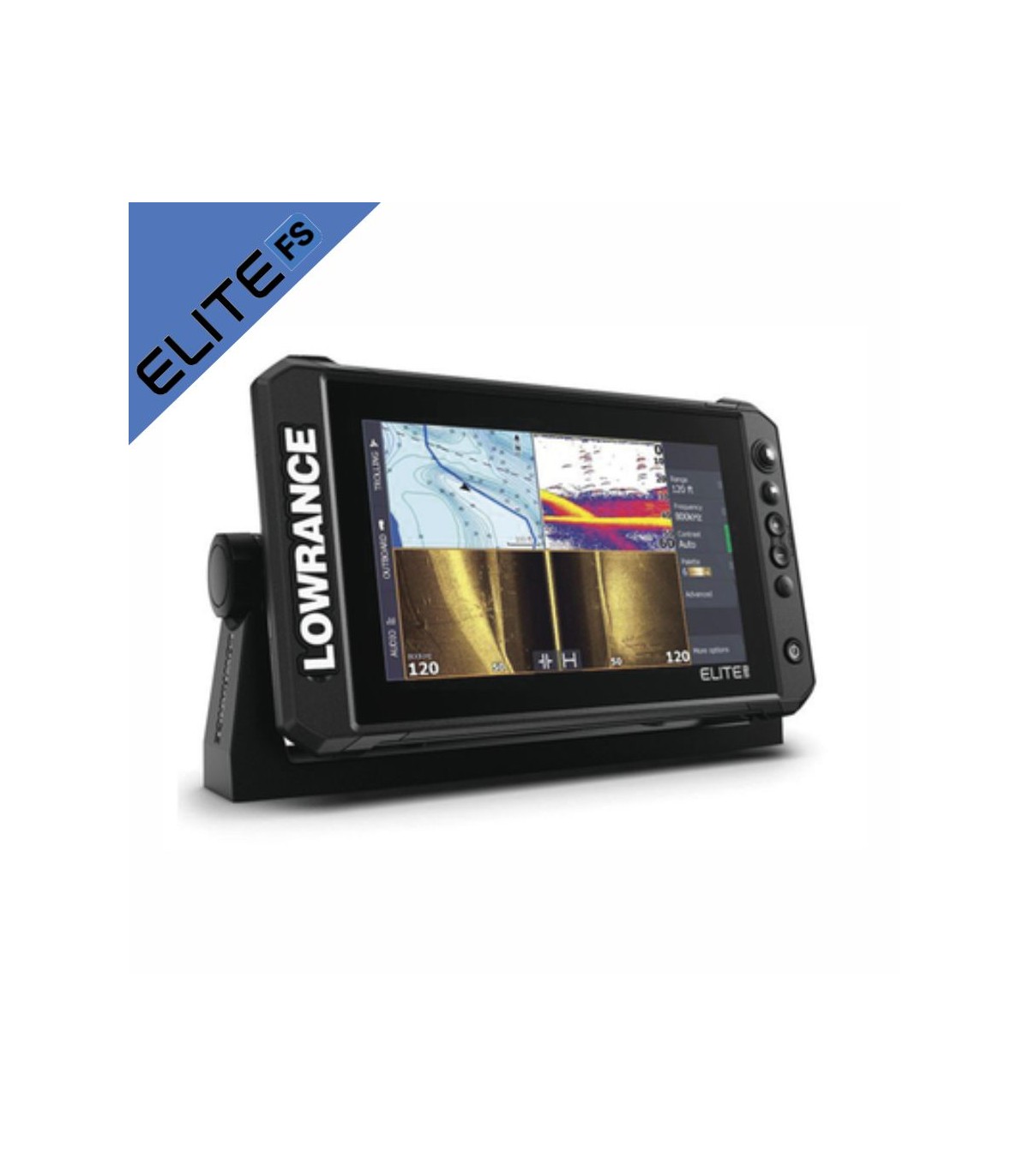

Sonda Plotter GPS Elite FS9 Black Edition without transducer 000-15693-BLACK
The new fishing system (FS) Elite gives you access to the full line of Lowrance Fish Search Tool, including the ActiveTargetTM, Active ImagingTM real-time probe and compatibility with a wide range of card options, so that you can get the most out of it while passing in the water.
000-15693-BLACK
Recommended Accessories
Accesorios electronica
C-MAP Discover has the best of C-MAP high-resolution blending, including Genesis's integrated data, along with vector graphics with all functions, personalized depth shading, tides and currents and Easy Routing without subscription. |
C-Map Discover L:Canaries, Madeira/Azores M-EW-Y209-MS |
|
The C-MAP REVEAL cartography features high-quality Premium graphics, including all REVEAL functions and data, as well as the new global shaded relief, satellite images, air photographs and plot graphics. Ideada para Lowrance, Simrad and B fakeG. Whether you are a sailor or an experienced fisherman these extraordinary cards will improve your fishing or sailing days. |
Cartografia C-Map Reveal Larga - West of Europe M-EW-Y228-MS |
|
The MAX Pro suitcase is made of high impact resistant ABS and has an IP67 certified outer shell, which means that it is 100% protected against dust and completely submerged in water at less than 1 meter for up to 30 minutes. The case guarantees great durability and can be used in different applications, from marine uses to photography, fishing, mountain activities or to transport your electronic devices. |
Briefcase waterproof box 361x289x120 c/foam 9" |
|
The C-MAP REVEAL cartography features high-quality Premium graphics, including all REVEAL functions and data, as well as the new global shaded relief, satellite images, air photographs and plot graphics. Ideada para Lowrance, Simrad and B fakeG. Whether you are a sailor or an experienced fisherman these extraordinary cards will improve your fishing or sailing days. |
Cartografia C-Map Reveal Larga - Southwest of Europe M-EM-Y076-MS |
|
C-MAP Discover has the best of C-MAP high-resolution blending, including Genesis's integrated data, along with vector graphics with all functions, personalized depth shading, tides and currents and Easy Routing without subscription. |
Cartografia C-Map Discover Norte de España M-EW-Y207-MS |
|
C-MAP Discover has the best of C-MAP high-resolution blending, including Genesis's integrated data, along with vector graphics with all functions, personalized depth shading, tides and currents and Easy Routing without subscription. |
Cartography C-Map Discover West Mediterranean M-EM-Y200-MS |
|
High performance battery based on a soul of Lithium Ion cells of the highest quality, Power kit presents this product under the criteria of maximum efficiency and utility with a weight of only 650 gr you can take it anywhere. The main characteristics are its lightness, safety, durability and reliability, which together with its resistance to the marine environment (waterproof) make it one of the best options on the market.
Powerymax |
Complete battery kit Powerkit lithium 12V 10Ah |
The Elite Fishing SystemTM (FS) combines the power of the latest in Lowrance probe features with a more affordable screen that is easier to use and install. From the ActiveTargetTM real-time probe and the impressive high-resolution Active ImagingTM with lowrance CHIRP, SideScan and DownScan ImagingTM probe, to compatibility with a wide variety of cartography options, Elite FS offers you all the tools you need to find and catch more fish.
Find more fish with the exclusive Lowrance probe technology
Watch the structure and coverage with a new level of detail and at an unrivalled range thanks to the Active ImagingTM 3 1 probe, equipped with CHIRP, SideScan and DownScan with FishRevealTM. Get the best match possible from the CHIRP and DownScan ImagingTM probe on a single screen with FishReveal, an exclusive feature of Lowrance, which helps you to easily differentiate the fish from the structure and coverage thanks to the DownScan images with an incredible level of detail.
Localizes real-time fish with the new ActiveTargetTM real-time probe
With the ActiveTargetTM real-time probe you will fish in a smarter way by knowing exactly what fish are doing in real time. Enjoy high-resolution views of the fish movements that will allow you to track them while they enter the coverage and swim around them. Watch your response to bait in real time and you will know if your current technique works or if it is time to change strategy.
A lot of cartography options
The Elite FS screens, which include a preloaded world map, offer compatibility with a wide range of cartography options, including C-MAP®, Navionics® and more.
Main features
- Real-time Probe Compatible ActiveTargetTM
- Compatible with Active Imaging 3 in 1
- Includes HDI transducer with CHIRP probe and Lowrance ImagingTM DownScan
- FishRevealTM
- With a basic global map, in addition to a wide range of card options, including C-MAP, Navionics® and more
- Compatibility with C-MAP® Easy Routing and Navionics® Authorouting
- C-MAP Genesis Live Cartography on screen
- High resolution multitouch screen
- Wireless Connectivity, NMEA 2000® and Integrated Ethernet
- Total control by touch screen of the Power Pole® anchors and the Ghost® electric motor
Electrical
| Power Consumption, max. | 2.0A @ 13VDC with backlight on full |
|---|---|
| Power Consumption, min. | 2.0A @ 13VDC with backlight on full |
| Power Consumption, typical | 2.0A @ 13VDC with backlight on full |
| Recommended Fuse Rating | 3A |
| Supply Voltage | 12v DC (10.8-17VDC) |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
Environment
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
|---|---|
| Shock and Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Waterproof rating | IPX7 with card door closed |
GPS
| Correction | DGPSWAASMSASEGNOSGLONASS |
|---|---|
| GPS Receiver Channels | 16 |
| Position Accuracy | 20m RMS |
| Time to First Fix | 30s |
| Update rate | 10 Hz |
MFD
| AIS | AIS Chart overlay. Target vessel details. |
|---|---|
| Autopilot | Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **Requires Motorguide PinPoint Gateway |
| Cartography included | C-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models) |
| Cartography supported | C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners |
| Digital Switching | None |
| External Storage | 1 micro SD card up to 32GB |
| GPS | 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS |
| Internal Storage | None |
| Multimedia | SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products |
| Radar (inc. compatibility) | 4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar) |
| Sonar (inc. compatibility) | Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target |
| Weather | SiriusXM via WM-4 (USA only) |
| Waypoints, Routes, Tracks | 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail |
| Compas Safe Distance - Metric, imperial | 12" (300mm) |
Physical
| Mounting Type | Gimbal Bracket or Dash Flush Mount |
|---|---|
| Weight | 2.7 lbs (1.2 kg) |
Other
English/French, English/French| Warranty Period | 1 Year + 4 additional years ofupgrade optionsTotaling 5 years |
|---|---|
| Interface | Multi-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power |
| Languages |
| Backlight Color | Pure White LED |
|---|---|
| Resolution | 800x480 |
| Screen Brightness | 1200 |
| Size and Type | 9.00" (228mm) WVGA color TFT LCD |
| Viewing Angles | 50° top60°bottom70° left/right |
Data sheet
- Product
- GPS Plotter Sounder
- Gama/family
- Elite FS
- Size screen
- 9"
- PMA Transductor
- 1 kW
