Enjoy ultra high-definition SideVü and ClearVü exploration tubes integrated with bright and high-contrast pallets to distinguish the fish from the structure. The GPSMAP series® X3 also supports traditional 1 kW CHIRP probe capabilities. Integrated probe compatibility is only available in xsv models.
Link it to the satellite communicator Panoptix or LiveScopeTM a live probe easy to interpret (the necessary transducer is sold separately), to see what surrounds the boat in real time.

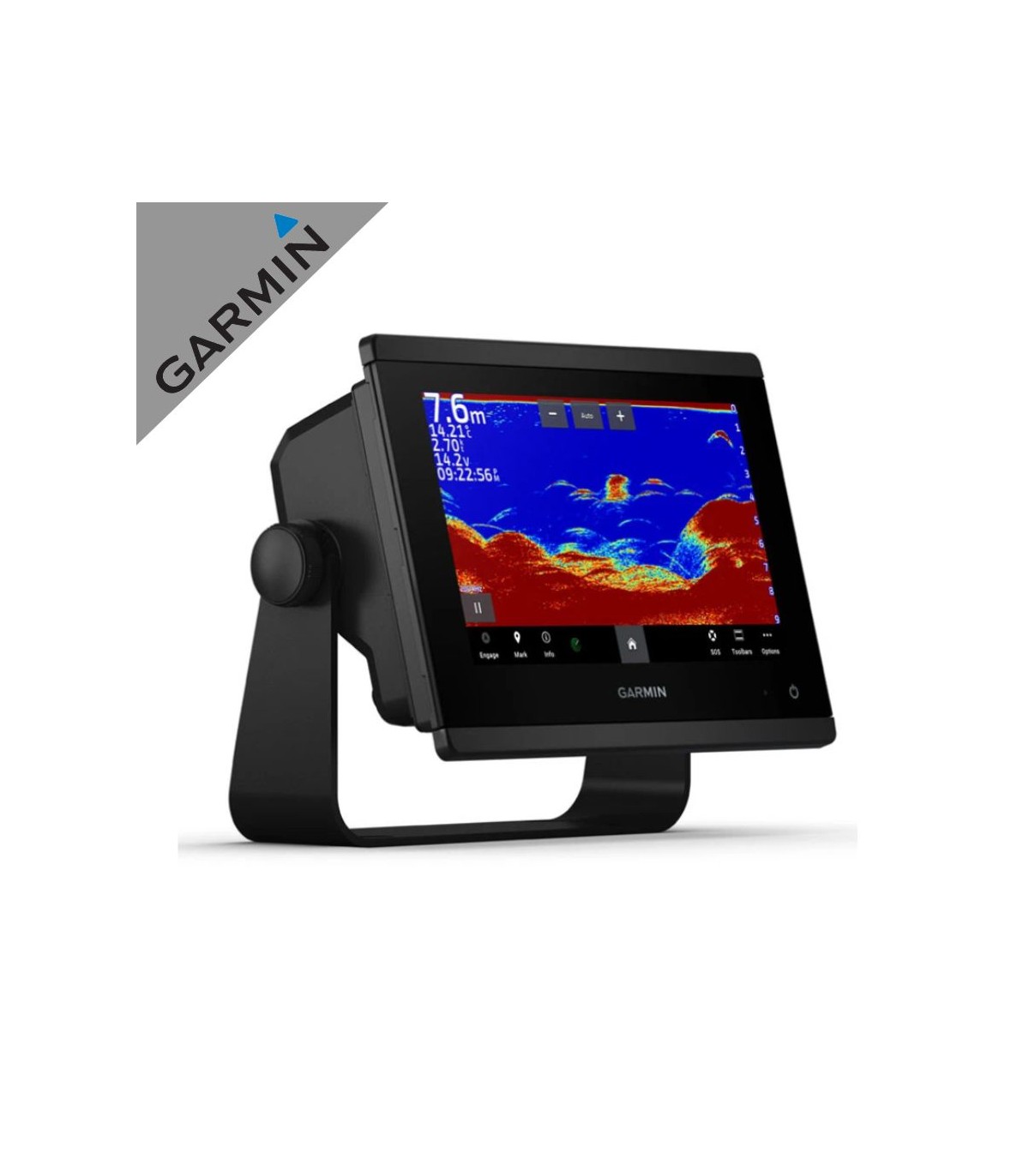

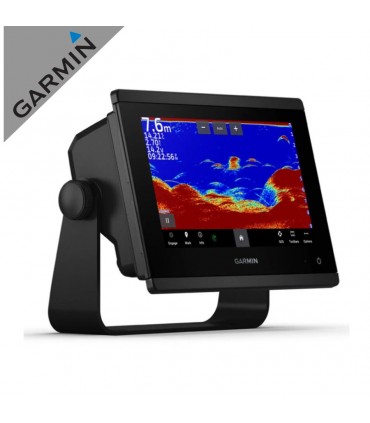

010-02365-02
Dimensions of the unit (Ancho/Alto/Depth) 19,2 x 14,0 x 7,4 cm (7.6" x 5.5" x 2.9")
Weight 1.3 kg (2.8 lb)
Water resistance classification IPX7
Touch screen
Screen type Screen WSVGA
Screen size (Ancho/high 6,1" x 3.5"; 7.0" in diagonal (15,4 x 9,1 cm; 17.8 cm in diagonal)
Screen resolution (Ancho/Alto) 1024 x 600 (pixels)
Mounting options Surface, rinse or scrap
Screen keys Touch screen
Polarized lens viewability
Maps and memory
Supports data cards 2 microSDTM cards (at the back of the unit)
Waypoints 5,000
Track points 50,000
Tracks 50 saved tracks
Routes 100
Sensors
GPS
GLONASS
Galileo
Built-in receiver
Receptor High sensitivity of 10 Hz
Compatible with NMEA 2000®
Compatible with NMEA 0183
WAAS Compatible
Built-in maps
Tide prediction
Optional map support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+TM
Garmin Navionics Vision+TM
TOPO 100K
Standard maps
Garmin Quickdraw Contours
Compatibility with Raster Cards
Functions of the plotter
Compatible with Garmin SmartMode (default customizable monitor settings)
Supports AIS (track the position of target ships)
Amite DSC (via the position data to the DSC-compatible VHF)
Support compatible FUSION-LinkTM radios
GSDTM Black Box -luotaimen tuki
GCVTM Black Box -luotaimen tuki
ActiveCaptain-yhteensopiva yes
Compatible with GRIDTM (Garmin Remote Input Device)
Wireless control
Navigation functions
Audio alerts by voice
Compatibility with OneHelmTM
Electricians
ELÉCTRICA 10 to 32 Vdc
Typical current consumption to 12 V DC 1.18 A
Maximum current consumption to 12 V DC 2.96 A
Maximum electric consumption to 10 V DC 35.9W
Specifications and probe functions
Show the probe
Power supply 1 kW
Traditional probe (dual gain/frequency) Integrated (CHIRP of a channel, 70/83/200 kHz, L, M, H CHIRP)
ClearVü 260/455/800/1000/1200 kHz integrated
SideVü 260/455/800/1000/1200 kHz integrated
PanoptixTM sonar
LiveScope
Connections
NMEA 2000® ports 1
Ports of entry NMEA 0183 1 (differential)
Output ports (Tx) NMEA 0183 1
Video input ports 1 BNC
Ports J1939 1
Garmin Marine NetworkTM Ports 1
12 pin transducer ports 1
USB ports
Bluetooth® calls
ANT+TM (connectivity)
Garmin Wi-Fi® Network (Local Connection)
