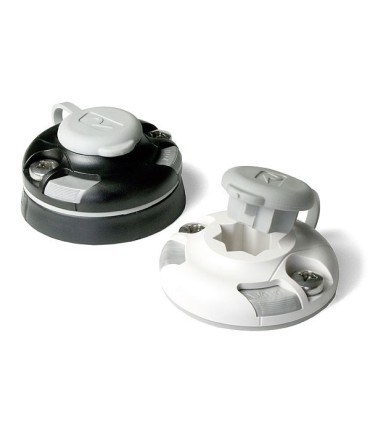

The RailBlaza StarPort is a unique and versatile multifunctional mount used in numerous applications, allowing users to attach and interchange items from our range of RailBlaza accessories.
03-4015-11
The RailBlaza StarPort is a unique and versatile multifunctional mount used in numerous applications, allowing users to attach and interchange items from our range of RailBlaza accessories.
Made of high-grade engineering plastic, the StarPort is very stylish and easy to fit. Can be surface mounted to any Galaxy Kayak.
INSTALLATION: StarPort™

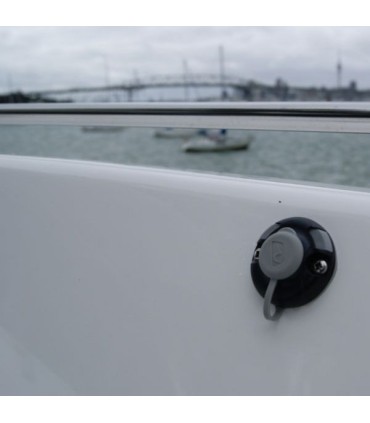

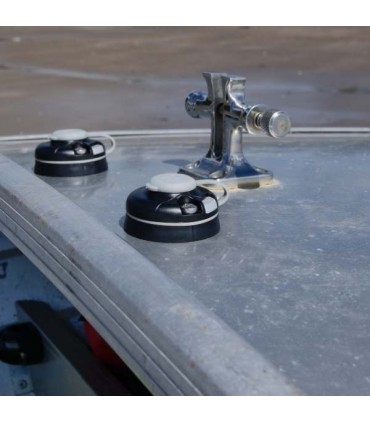

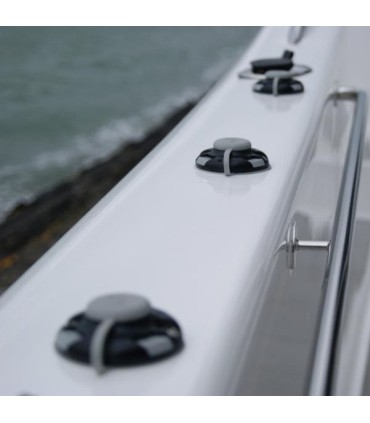

- The StarPort™ can be surface mounted with the supplied mounting collar, or recessed into any horizontal or vertical surface.
- Make sure there is enough space behind the surface to put the screws and/or bolts, and that it doesn't adversely affect any cables, plumbing or rigging.
- We recommend the use of a sealant between the collar and the cover.
SURFACE/RECESS MOUNT
- Drill the holes using the template or mounting collar as a guide.
1 SURFACE MOUNT: Place the collar, gasket, and StarPort in place, and install the bolts or screws.
2 FLUSH MOUNT: Put the gasket and StarPort in place, and install the bolts or screws.
- Tighten the screws until they are very firm.
IMPORTANT: The use of petroleum-based lubricants on the StarPort causes failure. Products with silicone are more suitable (check the content of the lubricant before use).
Characteristic
- Suitable for any Railblaza® accessory
- Made of high grade plastic
- Slide lock mechanism
specs
Construction materials
StarPort EEE - (Acrylonitrile Ethylene Styrene)
Lock - Polycarbonate
stainless steel fasteners
Supply:
1 x StarPorts
1 x adapter rings for surface mounting
1 x Gaskets/Airtight Covers
2 x 12 gauge 32mm self-tapping screws
2 x (M6 x 32mm) bolts, washers and nuts
