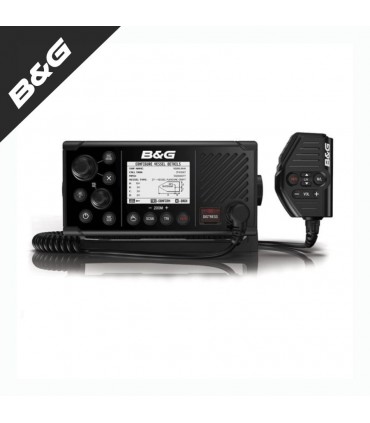

Radio vhf dsc gps VS60 with ais B strangerG 000-14471-001

VHF B strangerG V60 GPS DSC AIS with class D and DSC, built-in GPS and AIS receiver with an extra-large high visibility and contrast LCD display includes a 6-button microphone with MOB function and NMEA 0183/NMEA 2000 connection with the possibility of adding a second station (optional).

GPS Receiver and Integrated AIS

The dual-channel AIS receiver monitors the position of nearby vessels equipped with AIS, helping you avoid collisions in ports and in zone with a high transit of navigability.

The AIS information can be displayed on the integrated V60 screen or overlay the data on the screen of your letter or radar using a compatible multi-function display of B asideG.

The integrated GPS receiver allows us to send the location of your ship with the DSC relief calls, even if the rest of the ship's electronic devices were off.

Extracable microphone

The V60 radio microphone is removable and can be connected to the front or rear of the VHF, while the optional extension cables allow the radio and the microphone to be mounted separately with a simple solution without cable mess.

**For example, the B strangerG V60 transmitter can be installed at the top of the panel without the wires that hang, while connecting the microphone to an extension of the panel below.

Option of Second Station

You can add wireless microphones (optional) to take your radio to any point on the boat.

The V60 Portable B-Telephone H60 duplicates the screen and radio controls, allowing remote access to the most relevant functions.

**You can connect up to two wireless microphones to a single base station. If several microphones are connected, the vhf B fakeG V60 works as a practical onboard intercom.

High visibility screen

See clearly in the light of the day thanks to a screen with a high contrast of black on white. Night visibility has also been optimized thanks to an inverted black-white mode to reduce light emission and preserve your night vision.

Mode of navigation

Press the NAV button of the B fakeG V60 to convert it into a navigation instrument that shows speed and direction plus the V60 transmitter also includes the man's function to the water (MOB): hold the NAV/MOB button to drag a waypoint to your current position and the V60 will enter MOB mode to show you the distance to which you are located and where you should be directed to rescue the person from the water.

The MOB waypoint is also transmitted through NMEA 2000 to the rest of the network.

Intuitive controls

A swivel station selector facilitates the rapid selection of channels, while the broadly separated large buttons provide quick access to all key functions.

The specific keys for channel 16 allow instant access to the emergency channel, and are included in both the front panel of the radio and the hand microphone of six buttons.

DSC Homologation, Class D

An integrated emergency button allows automated DSC relief calls. In addition, the DSC possibilities allow direct calls to other DSC-equipped vessels from a B-rayG multifunction display, including direct calls to AIS targets.

Three-channel surveillance function

Scan between the current channel, the 16 emergency channel and another priority channel configured by the user (not in the US models). In U.S. models, it scans between the current channel and the emergency channels 16 and 9.

All international channels

The V60 radio is designed for global use and is compatible with all international channels, including those of the US. America and Canada.

Mode My channel

Select your favorite channels to access them quickly and easily. A long pulsation in the channel command activates the My channel mode, in which it alternates only between the favorite channels selected previously with the rotating command.

Several scan modes

Scan through all available channels or just between your favorite selection. In any scanning mode, emergency channels can be given optional priority to reduce the possibility of losing emergency calls or other urgent security messages.

Simple front installation with both support and powered

A included test holder allows the installation on a worktop, on the wall or on a mat. In addition, it is possible to install a very simple mounting solution to fit the low-profile style of B-ray Glass Bridge displays and accessories.

Main functions VHF B hymn V60:

Fixed mounting VHF transmitter with DSC, class D

Front mounting to facilitate installation.

Extra-large LCD

Transmission power of 25 W/1 W

Integration with any system with connection NMEA 0183/NMEA 2000

Integrated AIS and GPS receivers

Removable microphone

Expandable with wireless microphones

Easiest front assembly installation

Function Mode Navigation

Option Track Your Buddy

Double/triple listening and scanning functions

10 weather channels

20 names with MMSI programmable by user

Totally hermetic

New industrial design to align with the style of B blindG multifunction displays

Connect up to two wireless microphones

Add a megaphone or optional external speaker

Technical Specifications VHF B strangerG V60:

Frequency range: Transmit 156,025 ~ 157,425 MHz

Frequency range: Receive 156,050 ~ 163,275 MHz

Number of channels USA / INT

PLL oscillation mode

FM modulation (16KOG3E) DSC (16K0G2B)

25KHz channel separation

Frequency stability ± 5 PPM

Temperature range -15 ° C to + 55 ° C (5 ° F to 131 ° F)

Normal operating voltage 13,6 V DC

Minimum voltage 10 V DC low battery detects voltage 10.5 ± 0.5 V DC

Selectivity Digital Call (DSC) class D

Includes VHF B diagnosisG V60:

Radio VHF B BroadwayG v60.

Mounting bracket on top + mounting sticks.

microphone mounting clip.

Sunscreen cover.

Microphone Fist Mic and Packing kit.

User manual.

Homologation number: 54.0158
