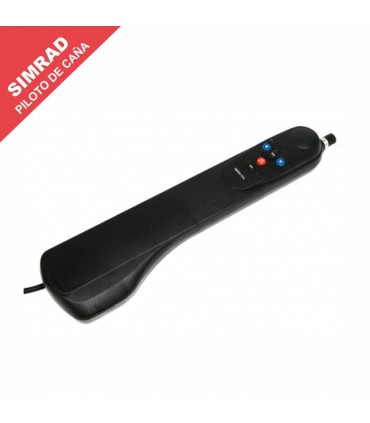

The Simrad TP32 Tiller Pilot is a rugged and reliable autopilot optimized for minimal power consumption and quiet operation—ideal for sailboats up to 37ft.
Simrad TP32 Tiller Autopilot. Simrad Rod Pilots are designed according to three principles: high precision, reliability and low consumption. The casings are extremely resistant and watertight; They incorporate the controls and have been subjected to harsh total immersion tests for hours. These pilots are exceptionally quiet, their response is fast and their performance very high, whatever the conditions of navigation, sea and wind conditions.
This range of pilots is perfectly adapted to sailboats of small and medium length. The TP22 and TP32 pilots easily connect with external devices via SimNet, thanks to which their features are extended, allowing functions such as: Navigate according to Wind and Navigate to Waypoint. These pilots are suitable for coastal navigation. When long voyages are made or the sea conditions are expected to be very rough, it is better to install a Simrad pilot of superior range, of the installation type below deck.
Characteristics Simrad TP32 Rod Autopilot :
- Watertight seal for protection of internal elements and reliability of use.
- Extremely quiet; enjoy the silence while sailing.
- SimNet compatible, just plug and play TP22 and TP32.
- Simple to handle.
AUTOPILOT / AUTOSTEERING
spike thrust | 85kg |
Max Displacement ship's | 6.3 tons |
length max. ship's | 12m 39ft |
government system | recirculating |
Smart Government | And it is |
Fluxgate compass | And it is |
Mounting to select: port or starboard | And it is |
Government with GPS | And it is |
Government according to Wind | And it is |
NETWORKING / CONNECTORS
NMEA0183 input | And it is |
SimNet Control | And it is |
POWER
Feeding | 12Vdc vDC |
Car Consumption | 0.05A |
Standby Consumption | 0.06A |
OTHER
adjustable gain | And it is |
Alarm: Acoustic and Visual | And it is |
State of the Sea-Auto | And it is |
Auto Trim | And it is |
Automatic Tracking | And it is |
Revenue | 1-9 |
night lighting | And it is |
nonvolatile memory | And it is |
working temperature | -10° to +55°C |
Stored working temperature | -10° to +55°C |
Remote Control Option | And it is |
storm proof | And it is |
