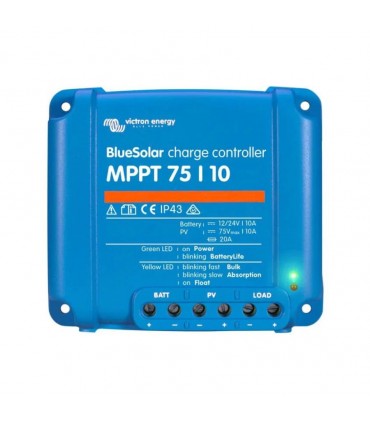

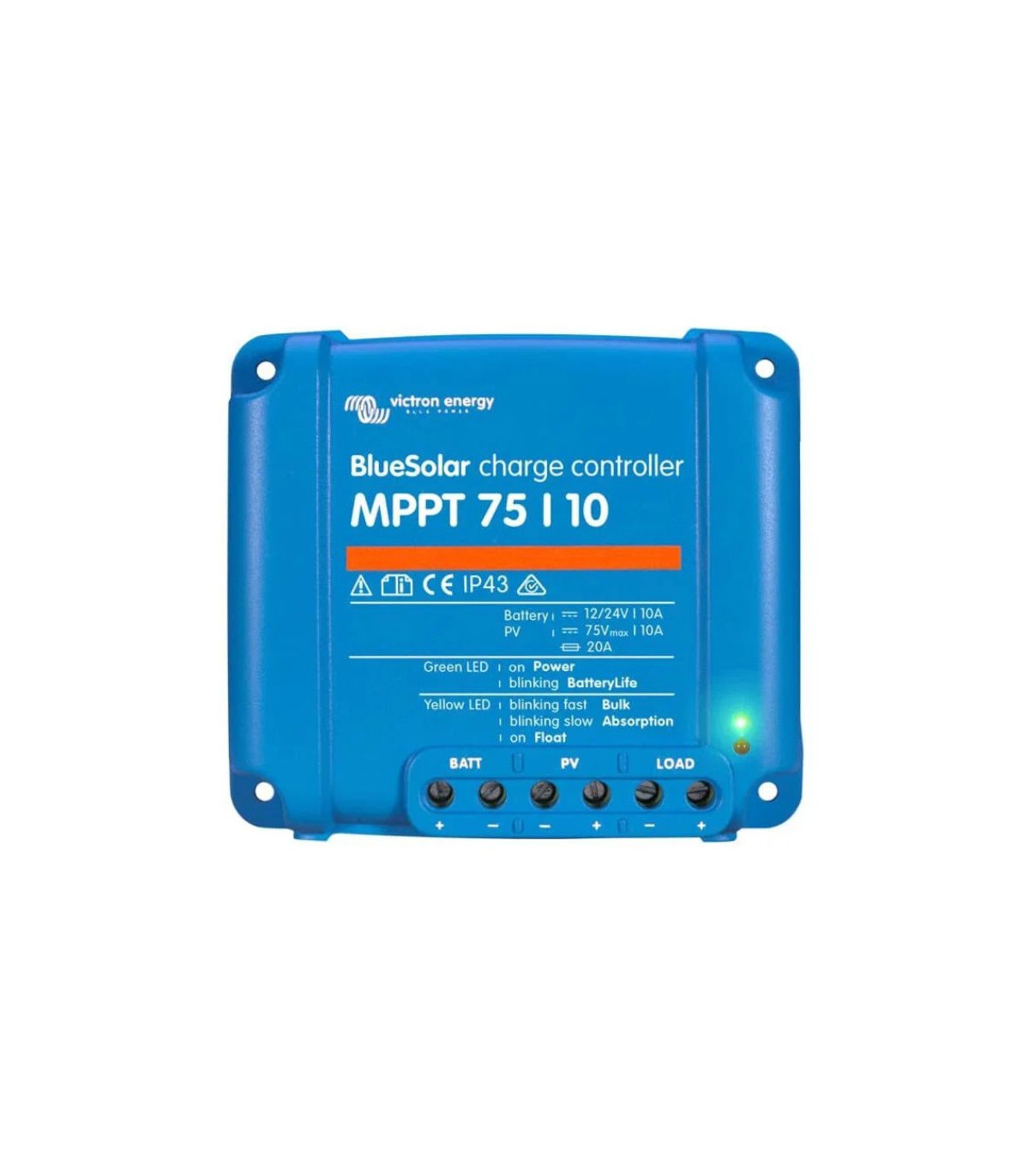

Victron Blue Solar MPPT 75/10 load controller (12 / 24V-10A) - SCC010010050R

Ultrafast tracking of the maximum power point (MPPT, for its acronym in English)

Especially with cloudy skies, when the light intensity changes continuously, an ultra-fast MPPT controller will improve energy collection by up to 30%, compared to PWM load controllers, and up to 10% compared to MPPT controllers slower.

• Loading

It can be avoided that the battery is excessively discharged by connecting all loads to the load output. This output will disconnect the load when the battery has been downloaded, when it reaches a pre-established voltage.

You can also choose to set a smart battery management algorithm: see BatteryLife. The load output is short-circuit proof.

Some loads (especially inverters) can be connected directly to the battery, and the remote control of the inverter to the load output. A special interface cable may be needed; Please, check the manual.

• BatteryLife: Intelligent Battery Management

When a solar load controller is not capable of recharging the battery at full capacity in a day, what happens is that the battery cycle changes continuously between the "partially charged" and "final discharge" states. This mode of operation (without periodic full recharge) will destroy a lead-acid battery in weeks or months.

The batterylife algorithm will control the battery charge status and, if necessary, it will increase the level of disconnection of the load (that is, will disconnect the load before) until the solar energy collected is enough to be for Reload the battery until almost 100%. From that point, the level of disconnection of the load will be modulated so that a recharge is rearmed almost 100% around once a week.

• Programmable battery charging algorithm

See the Assistance and Downloads section> Software on the page of Victron.

• Timer day / night and option of luminosity regulator

See the Assistance and Downloads section> Software on the page of Victron.

• Data options on display in real time

Smartphones, Tablets and other Apple and Android devices:

Accurate a connecting cable sees. Direct to Bluetooth Smart Dongle

Color Control Panel or Venus GX through a cable VE.Direct.

Net weight 0.5 kg

Measures 100 x 113 x 40 mm

Battery tension 12/24 V

Nominal loading current 10-14

Automatic voltage selection Yes

MPPT (monitoring of the maximum power point) Yes

Digital Display Not

Protection class IP43 (Electronic Components), IP22 (Connection Area)

See. Direct Yes
