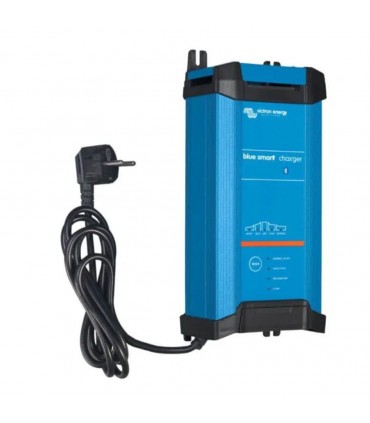

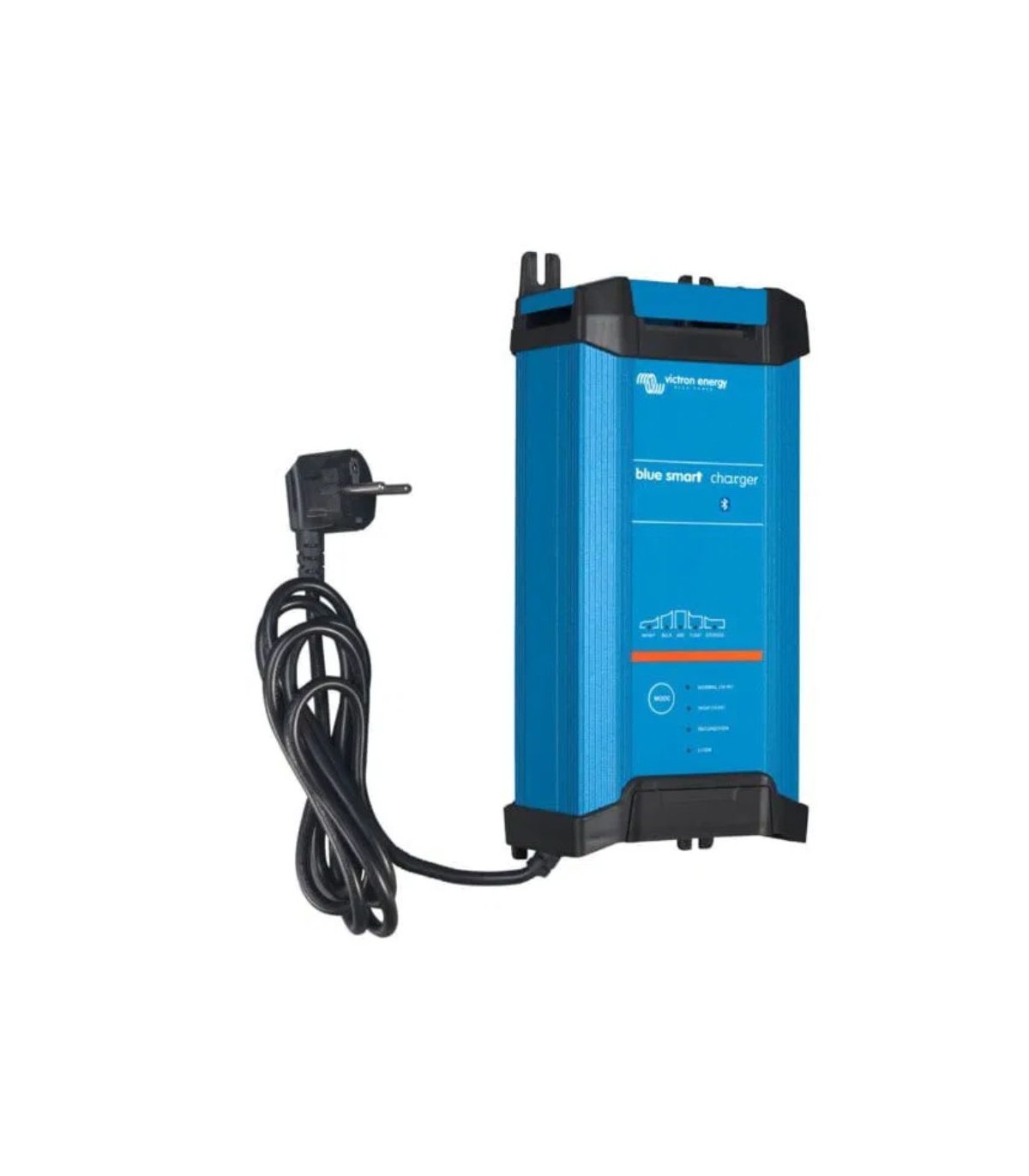

VICTRON BLUE SMART IP22 12/20 (1) 230V EEC 7/7 - BPC122042002

The BLUE SMART charger has "adaptive" management of the microprocessor controlled battery. Its "adaptive" function will automatically optimize the loading process based on the use given to the battery.

• Storage mode: Less aging and need for maintenance when the battery is not being used.

The storage mode is activated when the battery has not suffered any download in 24 hours. In storage mode, the flotation voltage is reduced to 2.2 V / cell (13.2 V for 12 V batteries) to reduce the gasy and corrosion of positive plates. Once a week, the tension at the absorption level is uploaded again to "match" the battery. This function avoids stratification of electrolyte and sulfation, the main causes of battery failures.

• Also load Li-ion batteries (lifepo₄)

Lifepo₄ batteries are loaded with a simple initial load algorithm -absorption - flotation.

• Night adjustment (night) and low (bass)

When Night or Low modes are active, the output current is reduced to a maximum of 50% of the nominal output and the charger will be totally silent. Night mode automatically ends past 8 hours. Low mode can be completed manually.

• Protection against overheating

The output current will be reduced as the temperature increases up to 50 ° C, but the Blue Smart charger will not fail.

• Eleven LED State Indicators

Loading algorithm: Test (check) / Bulk (Initial load) / Absorption (Absorption) / Float (Reconditioning) / Float (Floating) / Storage (Storage) / Ready (Ready)

MODE button To adjust: Normal (14.4 V) / High (14.7 V) / Recondition / Li-ion
