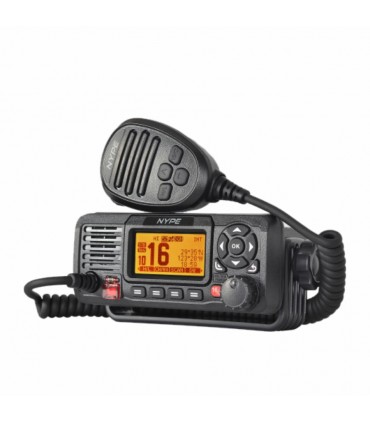

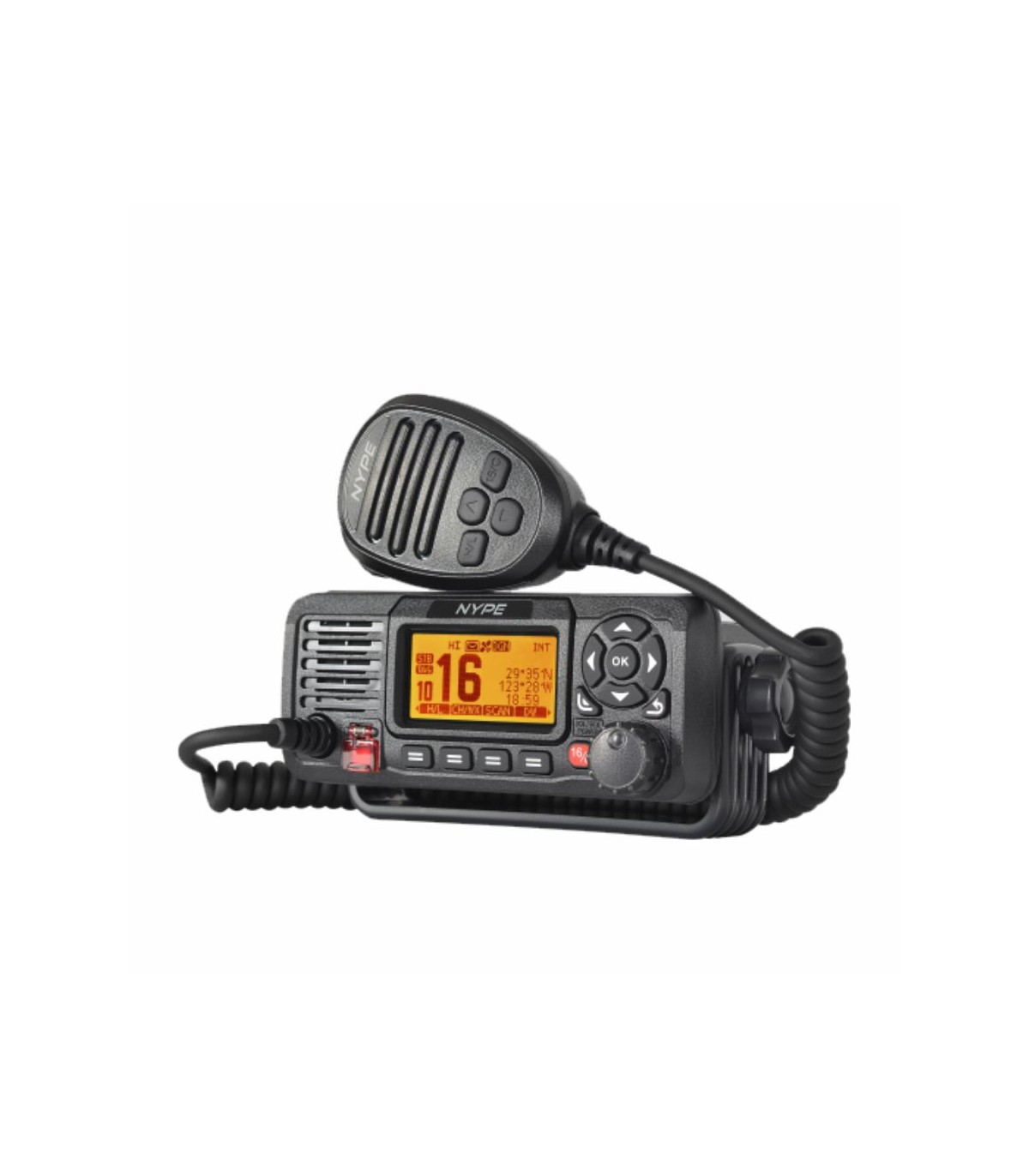

VHF fix NYPE CAL101 with DSC and GPS

The built-in GPS antenna provides date, time, current position, direction and speed.

Class D with dedicated DSC reception channel

The independent DSC surveillance function that incorporates allows us to monitor channel 70 activity (DSC channel), even while it is receiving on another channel. The DSC functions include: relief calls, individual, group calls to all ships, individual, group, urgency, security, request/position report, and DSC test.

The station is based on the technical characteristics of ICC 493-4 and the operational characteristics of ICC 541-3 of the International Consultative Committee on Radiocommunications, and the resolutions of recommendation A.803 (19) of the International Telecommunication Union, complying with national regulations and combined with practical use, gives rise to a versatile marine VHF radio station with Class D CSD with dedicated DSC reception channel.

Speaker with Drainage Function

Powerful external speaker with vibrational water drainage functions that allows us to remove the needle from the speaker grill.

Vibration helps drain the water from the speaker housing (water that could otherwise cushion the sound from the speaker). The transmitter makes a vibration noise when using this function. Notice: Do not use the vibration water drain function when connecting an external speaker.

Simple and intuitive menu

The menu that incorporates this vhf class D transmitter is simple and intuitive, with a quick access to all our functions and with rotating dial

Compact and lightweight size

The NYPE CAL 101 station measures only 155mm x 68mm x 86mm its size is ideal for small cabin spaces.

IPX7 waterproof construction.

The NYPE CAL 101 broadcaster is catalogued by a high degree of IPX7 seal for severe marine environments.

Main Features NYPE CAL 101:

Built-in GPS receiver (Supplied GPS antenna).

Dedicated DSC Receptor Class D

Simple and intuitive user interface

Revolving dial with specific keys

Waterproof IPX7 waterproof construction.

Connection NMEA 0183 for connection with GPS/NAV input and output.

Drainage function in speaker

Output for external speaker

Includes NYPE CAL 101 VHF Emission:

NYPE CAL 101

Hand microphone

DC power supply

Passive external GPS antenna

Mounting support kit
