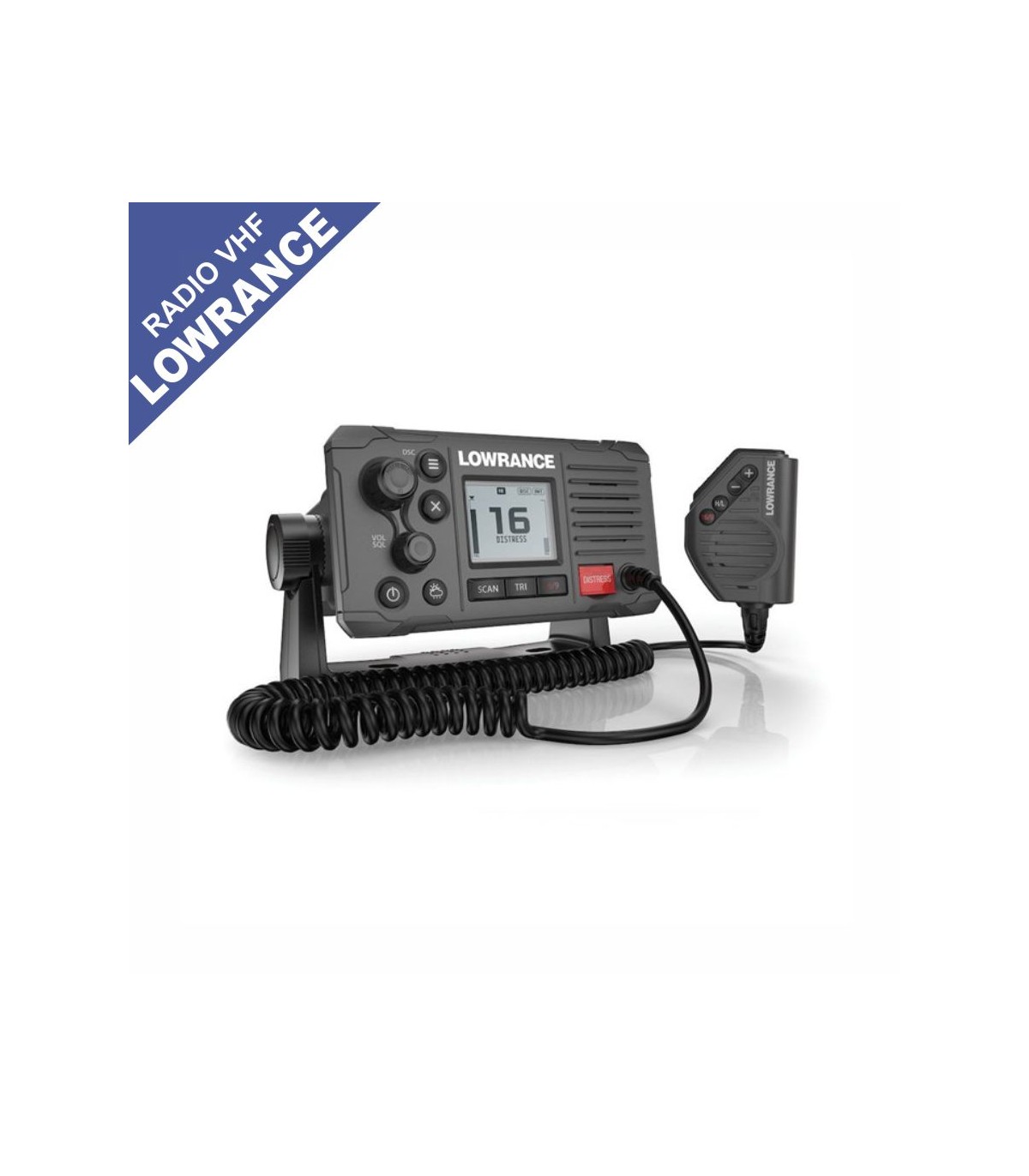

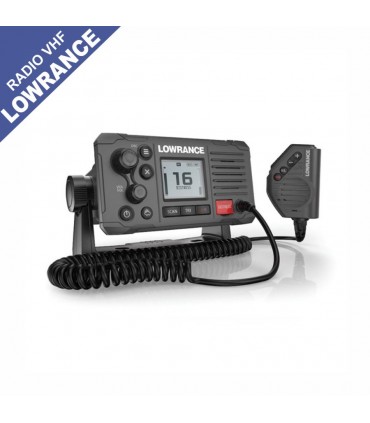

VHF-DSC Lowrance Link-6 black 000-13543-001
High visibility LCD display: With the daylight, it allows you to see clearly as it has a high black contrast on the screen; and for the night, it incorporates a white night mode on black invested to reduce the light emission and preserve its night vision.
4 button microphone: large and widely spaced buttons provide quick access to all key functions.
Rotary controls: facilitates the selection of channels quickly.
€225.05
€255.73
Reference:
942002415748
Brand:
Love0
Add to compare0
Add to wishlist
More intuitive keyboard: Channel 16 keys allow immediate access to the emergency channel, and are included in both the front panel of the radio and its four-button microphone.
Class D VHF Emitter: Class D-certified transmitter with digital selective call connected a computer to a compatible GPS and entering the MMSI number of your boat.
Tri-Canal Listening Function: very practice of exploration between the current channel, emergency channel16 and another channel that we want to give you configurable priority by the user.
My Channel Mode: allows you to select your favorite channels for quick and easy access. With a long pulsation in the channel selection dial enters the Mi Canal mode, where you can travel only the selected favorite channels.
Multiple Scan modes: Exploration through all available channels or simply through your selected favorite channels. We can also give priority to the emergency channel optionally so as not to lose any security message or distress call.
Easy Installation: A included cardan support allows the installation on top or can also be installed in a very easy way thanks to its detachable front panel.
Frequency range: Transmit 156,025 ~ 157,425 MHz
Frequency range: Receive 156,050 ~ 163,275 MHz
Number of channels USA / INT
PLL oscillation mode
FM modulation (16KOG3E) DSC (16K0G2B)
Separation between 25KHz channels
Frequency stability ± 5 PPM
Temperature range -15 ° C to + 55 ° C (5 ° F to 131 ° F)
Normal operating voltage 13,6 V DC
Minimum voltage 10 V DC low battery detects voltage 10.5 ± 0.5 V DC
Selectivity Digital Call (DSC) class D
Receiver:
Average frequency : 1 to 38.85/21.7 MHz
Intermediate frequency : 2a 450 Khz
Sensitivity : 12dB SINAD -6 dBuV(EMF)
Sensitivity silencer: at tight 6 dBuV(EMF)
Adjacent channel selectivity: 70 dB
Intermodulation Response 68 dB
S/N to 3KHz Dev. 40 dB
Audio output power: to THD 10% 2.5 W
Audio distortion: 10%
Audio response: +1 to -3dB of 6dB/octave from 300hz to 3kHz dB
Current consumption: Maximum audio power 1.5 A
Current consumption : Stand-By 0.5 A
2ND RX sensitivity 0 for 12dB SINAD 0 dBuV(EMF)
2ND RX bit error ratio@-107dBm 10-2
Transmitter:
Frequency error ±1.5KHz
Power RF Hi23W ± 2W : 0.8W ± 0.2W
Maximum deviation ± 5 Khz
S/N to 3KHz Dev. 40 dB
Modulation distortion ±3KHz 10%
Audio response in 1KHz Dev. +1 to -3dB of 6dB/octave from 300hz to 3KHz
Sensitivity of modulation 15 mV
Current consumption: 12V DC High power 6A: Low power 1.5A
DSC TX diversion at 1.3K 2.6±0.26 KHz
DSC TX diversion in 2.1K 4.2±0.42KHz
ATIS TX deviation at 1.3 KHz 1.3±0.13 KHz
ATIS TX diversion at 2.1 KHz 2.1±0.21 KHz
