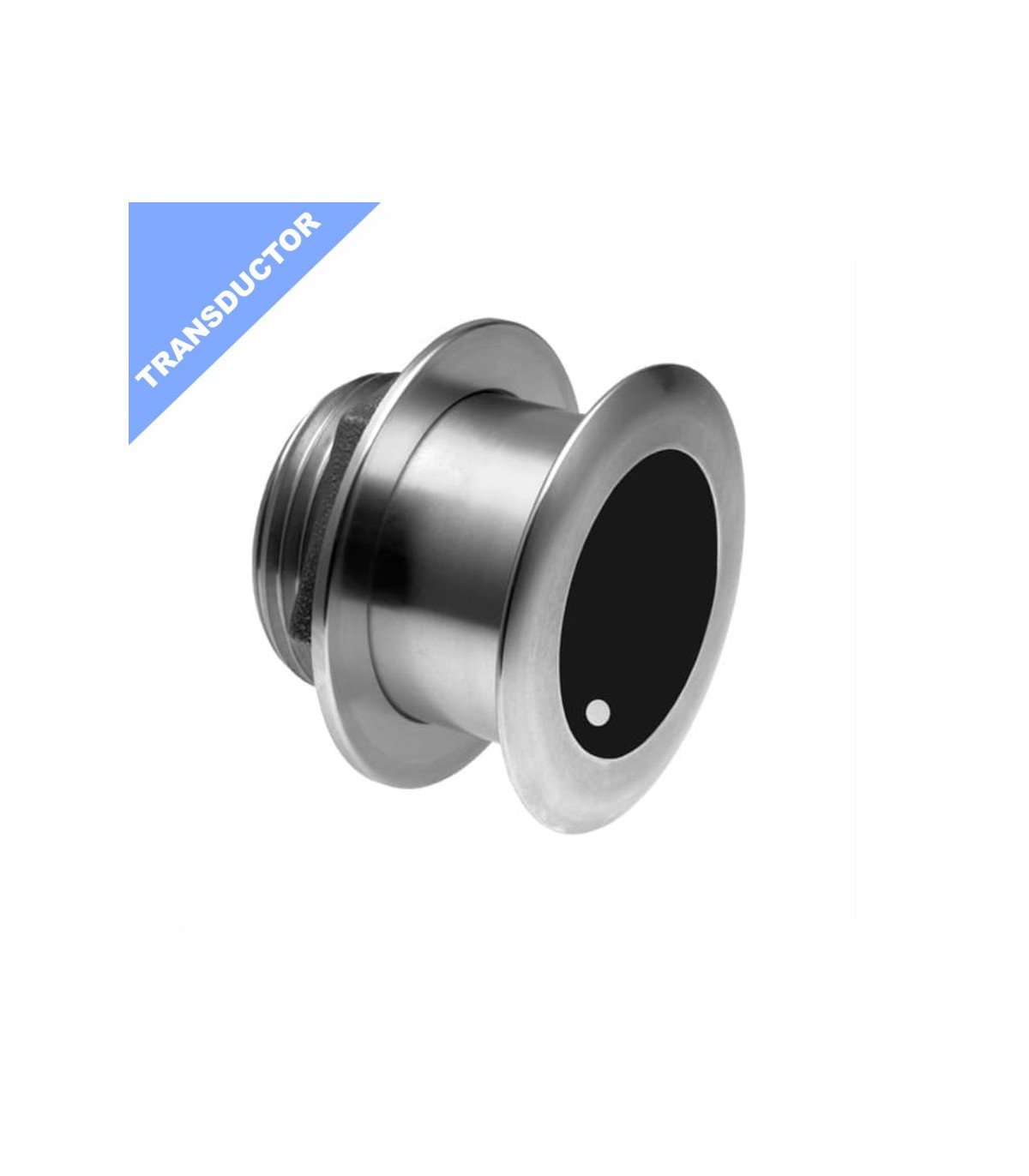

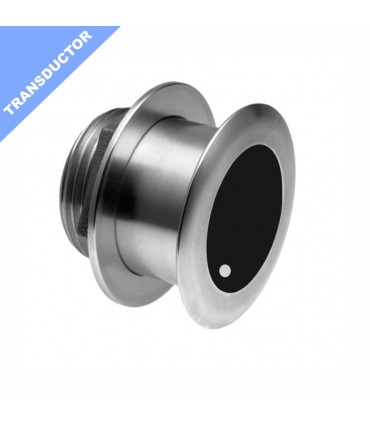

Ascent to 1 kW,without care!The innovative technology Tilted ElementTMof Airmar has taken to a higher power.This 1 kW built-in assembly transducer is perfect for fast, towed, competition and sport fishing boats that cannot accommodate a high performance lacking.The stainless steel housing mounted to the scrap stands out less than 6.35 mm (1/4") outside the helmet, so it can be placed on the rollers and the towing bunks. Ceramic matrices are tilted into the housing, which provides the perfect vertical beam with maximum energy. in what is directly under the boat.
€1,270.22
(tax incl.)
€1,443.43
Reference:
942002416271
Brand:
Love0
Add to compare0
Add to wishlist
Available in three models of tilted elements:
- Fixed tilted version of 20° for helmet trousers from 16° to 24°
- 12° fixed incline for helmet trousers from 8° to 15°
- 0° fixed tilted version for helmet trousers from 0° to 7°
Features
- Rapid response water depth and temperature sensor
- 1 kW power for depth performance at 500 m (1,640'):
- 50 kHz with a 22° wide beam
- 200 kHz with a 6° beam
- Connects to any echo sound of 600 W or 1 kW
- Designed for boats with central console and tow
- The low profile design stands out less than 6.35 mm (1/4") out of the helmet
- No effect on boat navigation performance
- Stainless steel housing for use in all helmet materials
- Also available in a bronze housing (B164) for use in a fiberglass or wood helmet
942002416271
Data sheet
- Product
- transducer
- Transducing power
- 1 kW
- Transducing material
- Stainless steel
- Type of transducing assembly
- Under profile
- Angle transducing inclination
- 0o
- Tecnología/Transductores
- 50/200 khz
- Depth approx.
- 500m
- Technology/Transducers
- Frecuencia fija
- Transducing channels
- Monochannel
- Compatibilidades
- Elite FS-1Kw
Go-600W (limited)
HDS Live-1Kw
NSO-1Kw
NSS-1Kw
NSX-1Kw
S2000 to 1 kW
