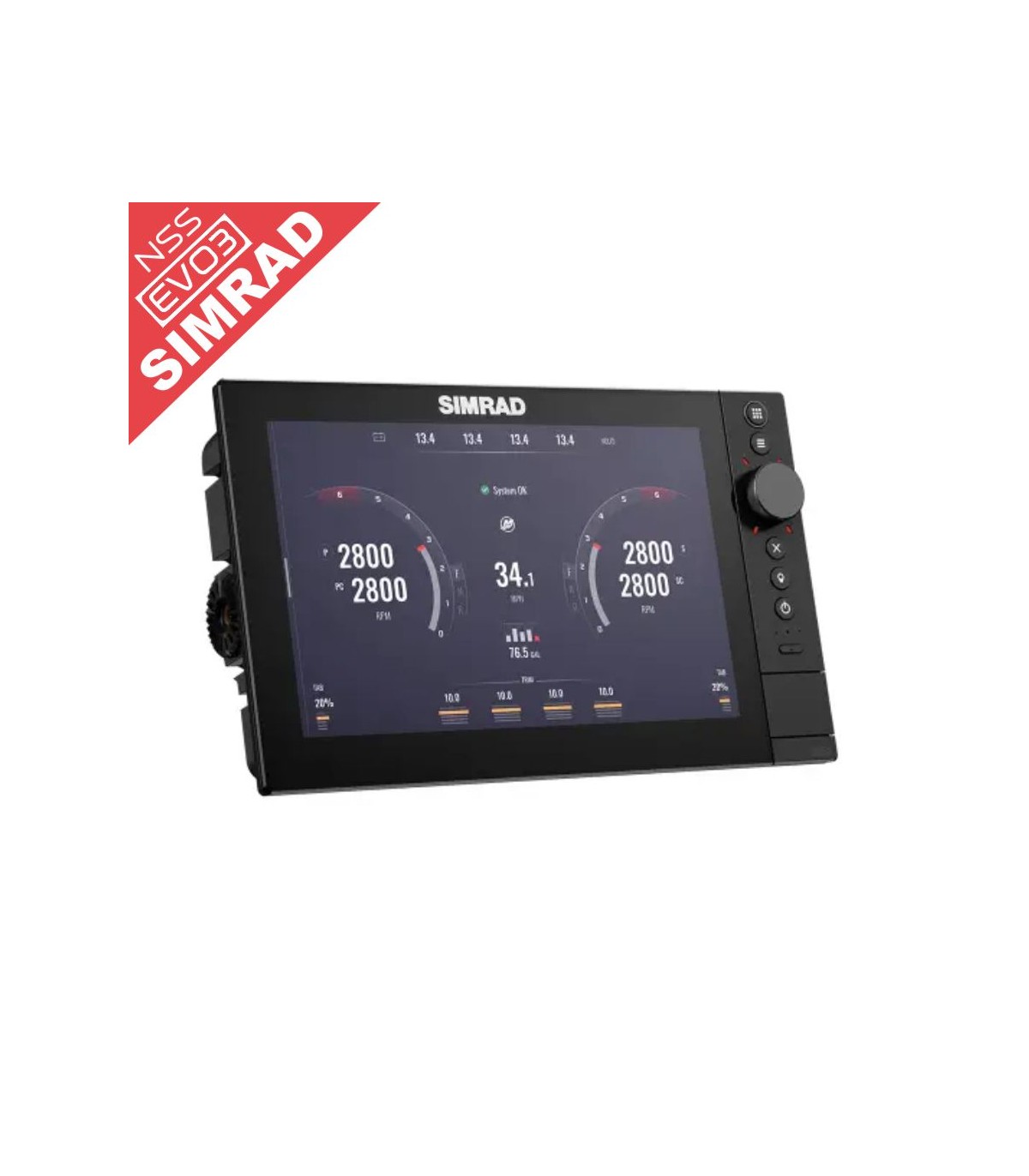

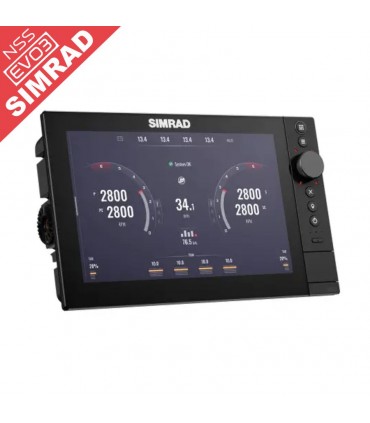

Sonda Plotter GPS Simrad NSS 4-10 no transducer 000-16013-001
The NSS® 4, redesigned inside and outside, is more elegant, faster and smarter. The touch screen, the rotary control and the keyboard work in perfect harmony to provide superior control. Inside, our 8-core Qualcomm® processor offers more fluid page transitions and faster updates. In addition, advanced fish-seeking functions, such as dual-channel CHIRP 1 kW probe, Active ImagingTM HD compatibility and improved customization complete the package of our sport chartplotter with all-in-one high-quality probe.
Recommended Accessories
Accesorios electronica
Cartography C-MAP MAX-N+ LOCAL Madeira Azores and Canary Islands unifies the reliability of C-MAP data with advanced cartography functions and puts it in the hands of users of Lowrance, Simrad and B&G equipment. It is a Nautical chart with advanced functions for our medium and long distance navigation or fishermen who seek to get the most out of their fishing days, with functions such as easy routing, seas and currents, port details, high resolution bathymetry. 000-12006-001 |
C-Map Discover X West Europe Large M-EW-T-228-D-MS |
|
C-MAP DISCOVER X EW-T-228-D-MS - West European Coasts. High quality graphics that includes all the functions and data of C-Map DISCOVER X, in addition to the new global shaded relief, satellite images, aerial photographs and plot graphics. Designed for SIMRAD NSX. COMPATIBLE with SIMRAD NSXTM |
Cartography C-Map Discover X Extended Central, Western and Southern Europe M-EW-T-060-D-MS |
|
C-MAP Reveal X. High quality graphics that includes all the functions and data of C-Map DISCOVER X, in addition to the new global shaded relief, satellite images, aerial photographs and plot graphics. Designed for SIMRAD NSX. COMPATIBLE with SIMRAD NSXTM |
C-Map Reveal X West Europe Large EW-T-228-R-MS |
|
C-MAP Reveal X. High quality graphics that includes all the functions and data of C-Map DISCOVER X, in addition to the new global shaded relief, satellite images, aerial photographs and plot graphics. Designed for SIMRAD NSX. COMPATIBLE with SIMRAD NSXTM |
Map C-Map Reveal X Long Mediterranean Canary Islands and the Azores |
|
The MAX Pro suitcase is made of high impact resistant ABS and has an IP67 certified outer shell, which means that it is 100% protected against dust and completely submerged in water at less than 1 meter for up to 30 minutes. The case guarantees great durability and can be used in different applications, from marine uses to photography, fishing, mountain activities or to transport your electronic devices. |
Briefcase waterproof box 390X285X120 w/foam 12" |
Display View angles 80° top/bottom, 80° left/right
Bright screen 1200 nits
White Backlight Color
Screen resolution 1280 x 800
Screen size 10 inches
Physical characteristics Dimensions An. x Al. x Pr. Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33′ x 6.93′′ x 3.13′′)With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43′ x 7.73′′ x 3.13′′′′)
Weight 1.8 kg (3.97 lb)
Insurance for compass 35 cm (1.15 ft)
Bracket mount mount type (bracket supplied). Rear mount (brackets supplied)
Electrical Recommended capacity of fuses 5 A
Maximum energy consumption 28 W
Power voltage 12/24 V DC (10 - 31.2 V DC min - max)
Environment IPX6 and IPX7 waterproofing
Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Storage temperature range -20°C to 60°C (-4°F to 140°F)
Operating temperature range -15°C to 55°C (5°F to 131°F)
Clash vibration 100,000 cycles of 20 G
Connectivity SD 2x card storage (microSD®, SDHC®)
Bluetooth 4.0 with support for Bluetooth Classic (currently not used)
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
Connectivity for PC No
Ethernet ports 1 port (X-Coded M12 GbE)1 port (yellow, 5-pin)
Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera
W- Fi for connectivity with articles Wi-Fi 5 (IEEE 802.11ax)
Multifunction AIS Receive AIS data over NMEA 2000
Cartography included World wide basemap (not for navigation).Detailed chart card required
Compatibility with probes Two 9 pin Xsonic 1 kW Sonar ports. Sonar port: Low, Medium, and High Chirp up to 1kW RMS: Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Imaging port: Sonar: Low, Medium, and High Chirp up to 1kW RMS. Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Sidescan: 455 kHz, 800 kHz, 455 kHz CHIRP, 1200 kHz CHIRPNetwork Sonar modules S3100, S1005
Digital switching Czone / DDS
GPS 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS)
Autopilot NAC-1, NAC-2, NAC3, NAC-D compatible
Waypoints, routes, tracks 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
GPS Receiver Channels GPS 32 Channels
Correction 10 Hz high speed update (internal)
Update frequency 10Hz
Horizontal Accuracy 3 m (9.8 ft)
Automatic Pilot Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav
U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth
Cartography Compatible letters C-MAP DiscoverTM X, C-MAP RevealTM X. Third party charts CMOR, StikeLines (check with provider for available content)
Card format C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X
Other Languages -German (Deutsch)-English (English)-Dutch (Nederlands)-Danish (Dansk)-Spanish (Français)-Italian (Italian)-Norwegian (Norsk)-Portuguese (Português
Interfaz Hybrid multi-touch screen, buttons, and rotary knob
