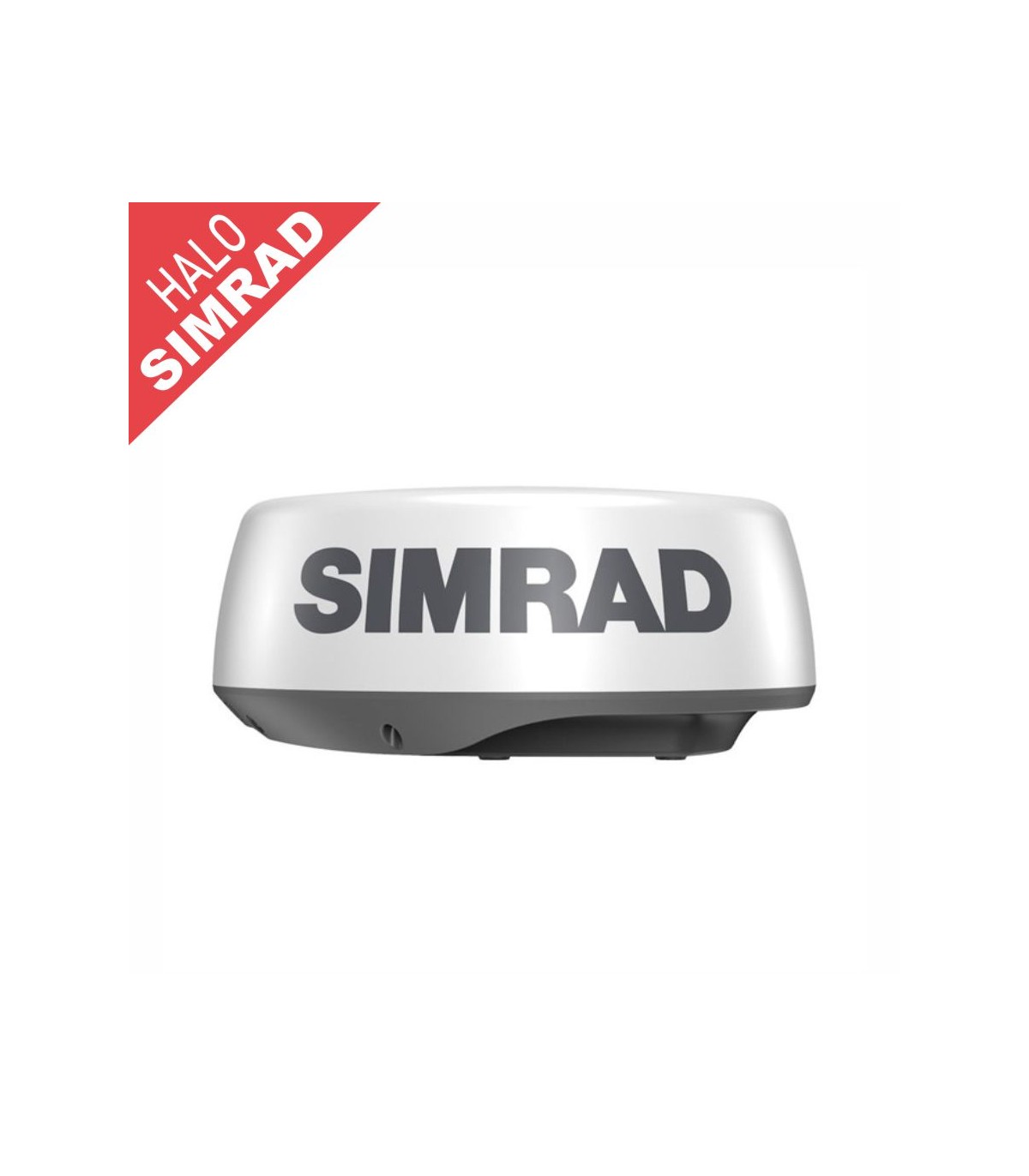

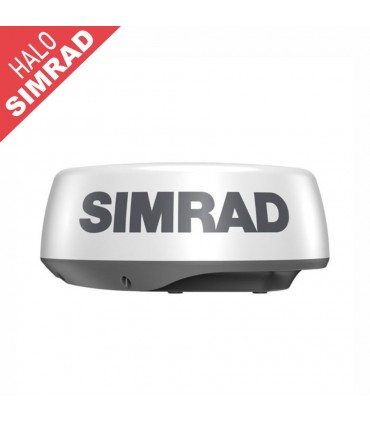

Halo20 Compressor Radar Simrad 000-14537-001
A cost-effective way to increase the perception of the geographical location and avoid collisions: HALO20 is a compact dome-type radar with pulse compression technology, which detects collision risks and other targets, both closely, and up to 24 nautical miles away. With its small size and low profile, the HALO20 is the perfect radar solution for sailors with tight budgets, owners of small recreational and fishing boats.
Its compact low profile size of the models Simrad HALO20, HALO20+ and HALO24 is the ideal marine radar for sailors with recreational and fishing boats with a lower budget.
Features Radar Simrad HALO20
10 W pulse compression
Scope of 24 miles with closed dome antenna of 61 cm (20 inches).
There is no competition in the field in short-range sharpness
It does not produce radiation
Simple operation thanks to the different modes for port, high-mar and meteo
Target monitoring MARPA
InstantOnTM
energy consumption
Customizable ranges
Greater sharpness to avoid collisions
The Simrad HALO20 radar incorporates a full range of functions and monitors the selected collision risks, thanks to the MARPA target tracking, which allows you to track up to 10 targets or 20 in Dual Range mode.
As much as you navigate on transient routes, as if you are facing poor visibility, the HALO20 radar allows you to have a clear, real and up-to-date idea of your environment.
Technical specifications Radar Simrad Halo20:
Food voltage: 10.5 - 31.2 VDC (12/24V systems)
Maximum wind speed: 100 knots (51 m/s)
Typical energy consumption: 18W
Warranty period: 2 years
Maximum energy consumption: 20W
Maximum range, scale: 24 NM
Turn speed: 24 RPM
Operating temperature range: -25° to + 55°C (-13° to +130°F)
Width of the beam: 4.9° H x 25° V
Weight: 5.9 kg (13 lbs)
Minimum range, scale: 50 m / 200 ft / 50 yd
Diameter: 510mm (20")
Dimensions: 510mm diameter x 223 mm High
Recommended capacity of fuses: 5A
Humidity: 95% RH at 35°C (95°F)
Compliance with the approval: FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
Radar modes: Harbour, Offshore, Weather, North Up, Course Up, Relative motion, True Motion
Waterproofing Degree: IPX6
Radar technology: Pulse Compression
Interface: Simrad MFD
The Simrad HALO 20 box includes:
Radar Simrad HALO20
RJ45 5 Pin 1.5m cable
10m Antenna Cable
Compatible with:
Lowrance Simrad BlopG
HDS GEN3 GO9 / 12 XSE Vulcan R
HDS carbon GO7 XSR Zeus2
HDS LIVE NSS evo2 Zeus3
NSS evo3 Zeus2 GH
NSO evo2 Zeus3 GH
NSO evo3
