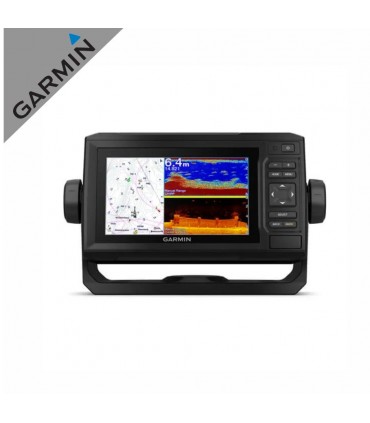

- 6-inch chartplotter/sounder with sunlight-readable display and keys
- Includes the GT-20 transducer for Garmin CHIRP traditional sonar, CHIRP ClearVü ™ sonar, and transom and trolling motor mounts.
- Pre-installed world basemap; compatible with advanced BlueChart ® g3 and BlueChart ® g3 Vision coastal charts with integrated Navionics ® data and Auto Guidance 1 technology
€561.15
(tax incl.)
€645.00
Reference:
522300027760
Brand:
Love0
Add to compare0
Add to wishlist
The chartplotter/sonar that keeps you connected
- 6-inch chartplotter/sounder with sunlight-readable display and keys
- Includes the GT-20 transducer for Garmin CHIRP traditional sonar, CHIRP ClearVü ™ sonar, and transom and trolling motor mounts.
- Pre-installed world basemap; compatible with advanced BlueChart ® g3 and BlueChart ® g3 Vision coastal charts with integrated Navionics ® data and Auto Guidance 1 technology
- Built-in Quickdraw Contours mapping software creates custom fishing maps instantly on screen as you fish, with 12-inch contours.
- Use built-in Wi-Fi ® connectivity to pair with the free ActiveCaptain ™ app for access to OneChart ™ , smart notifications¹, Garmin Quickdraw ™ Community data and more
- Share waypoints and routes with other ECHOMAP ™ or STRIKER ™ units
Maps and memory |
|
pre-installed maps | None |
---|---|
Supports data cards | 1 microSD ™ card; 32 GB maximum card size |
Waypoints |
5,000 |
Routes | 100 |
tracks | 50,000 points; 50 saved tracks |
Outdoor entertainment features |
|
tide prediction |
---|
plotter functions |
|
Garmin sonar compatible | Yes |
---|---|
Support AIS (track the position of target ships) | |
Amite DSC (sends position data to DSC compatible VHF) |
Sonar specifications and functions |
|
Compatible with dual frequency sonar | |
---|---|
Dual beam sonar compatible | |
Potency of transmission | 500W (RMS) / 4,000W (peak-to-peak) |
CHIRP technology | Yes (Built-in) |
ClearVü |
Yes with CHIRP (built-in) |
SideVü |
Do not |
Max deep |
2,300ft @ 77kHz, freshwater 1,100ft @ 77kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
Bottom lock (shows the signals it returns from the bottom to the surface) | |
Water temperature graph and record | |
sonar recording | |
Sonar history rollback function |
connections |
|
NMEA 2000® Compliant | |
---|---|
Transducer Pin Numbers | 4 |
NMEA 0183 input ports |
one |
NMEA 0183 output ports |
one |
Video input ports | None |
Video Out Ports - None | None |
wireless connectivity |
And it is |
Unit Dimensions (Width/Height/Depth) | 21.8 x 13.0 x 6.2cm (8.6" x 5.1" x 2.6") |
---|---|
Screen size (Width/Height) | 13.7 x 7.7cm; 15.2 cm diagonal (5.4" x 3.1"; 6" diagonal) |
Screen Resolution (Width/Height) | 400 x 800 pixels |
screen type | WVGA display |
Weight | 0.7kg (1.6lbs) |
Water resistance rating | IPX7 |
Energy consumption | 12W |
Antenna | Internal or external via NMEA 2000 |
mounting options | On surface or recessed |
receiver | 5Hz |
Garmin Marine Network™ Ports |
None |
