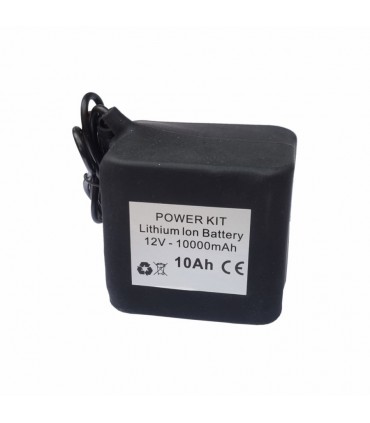

Powerkit lithium 12V 10Ah battery without case (not including charger)

High-performance battery based on a lithium-ion cell core of the highest quality, Power kit presents this product under the criterion of maximum efficiency and utility with a weight of only 650 grams you can take it anywhere. The main characteristics are its lightness, safety, durability and reliability which together with its resistance to the marine environment (waterproof) make it one of the best options on the market.

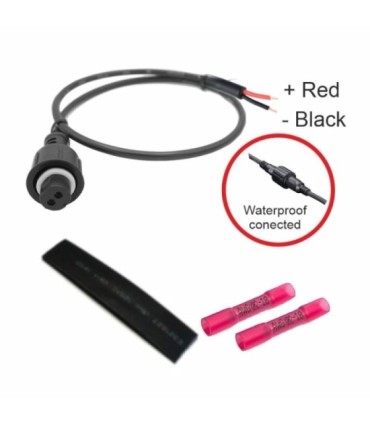

Content of the kit:
1 - Portable battery
1 - Connector cable to device
2 - Watertight connectors
1 - Thermorefractory backing

All Battery Power kits are duly tested and verified. They are designed for use in all types of sports and work spaces. With this Powe kit you will be able to feed continuously and for a set duration:

Soda - Plotter - GPS - Video and photographic cameras - Mobile phones - Tablets and Ipad among other devices.

It is fully compatible with any Brand or Model of Probe or EcoSonda Lowrance, Garmin, Simrad, Humminbird, Raymarine, Eagle, etc.

Its internal cells and protective system are protected from inclement weather in a silicone-based cover fully sealed and wrapped in a portable case that will allow you to carry it without fear of getting wet, its wiring is fully watertight thanks to the use of seals and threaded connectors of the latest generation.

Weight (gr) 650.
Measurements (cm): 7.5 x 7.5 x 6.0
The output voltage (V): 12
Maximum charging time (h): 6 (depends on actual consumption)

Example on a Lowrance Elite-5 Ti with Mid/High/DownScan transducer under normal conditions is greater than 15 hours of continuous use.

Calculating the autonomy is very simple, you have to divide the capacity by the consumption of your electronic equipment and you will get the hours of use. Consider setting amps (10ah) or milliamps (10.000mah) to do the math right.

It is recommended to use a protective fuse before connecting our device and to fully charge the Power kit before use, as well as not to leave it fully charged if we expect long periods of inactivity. The charger can be left on even after being fully charged because it has a protective system, but it is not recommended to leave it on for long periods of inactivity

It is recommended to clean the connectors after use, especially in salt water.

PRE-ASSEMBLY INSTRUCTIONS:

You should consider the polarity, RED (+) and BLACK (-) when connecting the device to the battery.
The Power Kit must be fully charged before first use.

MOUNTING

1. Cut the thermosetting strip in the middle and run each of the wires through it leaving enough wire to work comfortably.
Our connecting cable is pre-peeled leaving part of the end uncovered, do the same with the cable of the device to be connected in approximately the same length, winding the wires of the cable to prevent part from coming out when inserted into the splice connector.
3. Be clear that cable is positive (+) and negative (–) of the device before moving on to the next point, usually BLACK is (-) and RED (+)
4. Place at each end of the splice connector the end of the peeled cable ensuring that the central inner metal part touches the ends of both cables, using pliers tighten this central metal part leaving the cables fixed to it, once done the first repeat the operation with the other cable.
5. Pass a heat source (a simple lighter is sufficient) from the center outward evenly into each of the splice connectors until the tube fits the cable and waits for it to cool before moving on to the next step.
Put the piece of thermorefractory covering the connector completely and reapply heat to this second layer of protection, leaving the joint completely sealed we avoid moisture inputs that would shorten the life of our Power Kit.

IMPORTANT PRECAUTIONS

Failure to follow the instructions for use or mounting properly can result in damage to the Power Kit, connected equipment or even serious personal injury.
Never use a charger other than the one supplied. (danger of damage and/or fire)
Although the Power Kit is moisture resistant, under no circumstances should it be submerged.
The rated delivery capacity of the Power kit is 5A with peaks up to 10A. Making use of higher consumption could irreversibly damage the Power Kit and even produce damage or fire.

WARRANTY

Power Kit is guaranteed against manufacturing defects for a period of one year under the Consumer Goods Sale Act 23 of 10 July 2003.
Damage caused by improper use of the product, physical damage or wear and tear is excluded from the warranty.
The durability of this product is calculated at approximately 500 loading/unloading cycles.
The use of this product in extreme temperature conditions significantly reduces performance.
