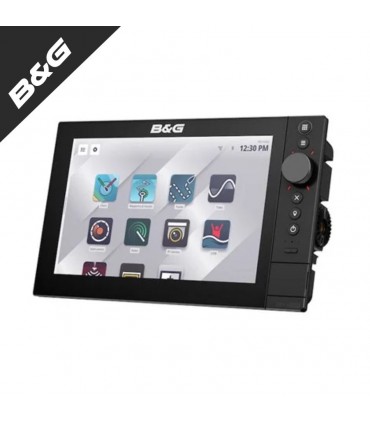

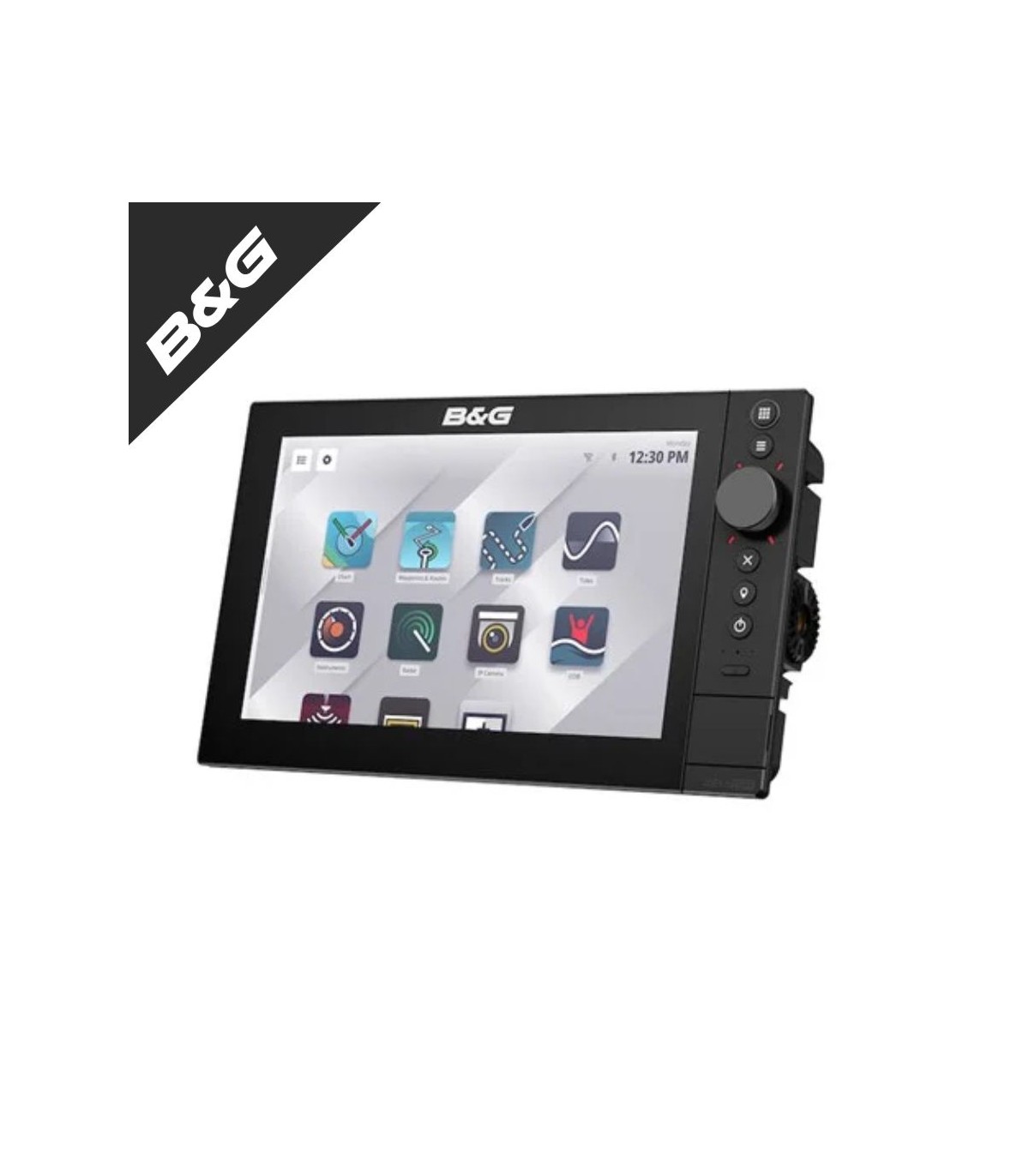

Plotter GPS B fakeG Zeus SR - 10 no probe 000-16022-001
Power your instincts with the Zeus® SR chartplotter that features our most powerful eight-core processor and offers a faster and smoother navigation experience thanks to a redesigned interface that facilitates the search for the tools you need, with custom navigation, racing and anchoring screens. In addition, it offers a wide range of control options for you to enjoy all the power to the rudder regardless of the conditions.
Our last operating system has in integration its fundamental characteristic, so it creates a perfect and fluid network throughout the boat. Connect to HALO radars® for greater security and deeper knowledge of the situation. Enjoy superior performance with our Triton Edge and Hercules sailing processors. And it has the best data to the rudder with our famous wind sensors, which are integrated into our range of Triton and Nemesis instruments®.
Display View angles 80° top/bottom, 80° left/right
Brightness of the screen
White Backlight Color
Screen resolution 1280 x 800
Screen size 10 inches
Connectivity SD 2x card storage (microSD®, SDHC®)
Bluetooth 4.0 with support for Bluetooth Classic (currently not used)
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
Connectivity for PC No
Ethernet ports 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)
Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera
W- Fi for connectivity with articles Wi-Fi 5 (IEEE 802.11ax)
Cartography Compatible letters C-MAP DiscoverTM X, C-MAP RevealTM X. Third party charts CMOR, StikeLines (check with provider for available content)
Card format C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X
Automatic Pilot Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav
U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth
Electrical Recommended capacity of fuses 5 A
Maximum energy consumption 28 W
Power voltage 12/24 V DC (10 - 31.2 V DC min - max)
Environment IPX6 and IPX7 waterproofing
Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Storage temperature range -20°C to 60°C (-4°F to 140°F)
Operating temperature range -15°C to 55°C (5°F to 131°F)
Clash vibration 100,000 cycles of 20 G
GPS Receiver Channels GPS 32 Channels
Correction 10 Hz high speed update (internal)
Update frequency 10Hz
Horizontal Accuracy 3 m (9.8 ft)
Multifunction AIS Receive AIS data over NMEA 2000
Cartography included World wide basemap (not for navigation).Detailed chart card required
Compatibility with probes No built-in Echosounder ports. Compaible with Network Sonar modules S3100, S5100, Other MFDs with echosounder ports
Digital switching Czone / DDS
GPS 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS)
Autopilot NAC-1, NAC-2, NAC3, NAC-D compatible
Waypoints, routes, tracks 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: Zeus3, Zeus3 GH maximums will apply if on the same network
Physical characteristics Dimensions An. x Al. x Pr. Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33′ x 6.93′′ x 3.13′′) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43′ x 7.73′′ x 3.13′′′′
Weight 1.8 kg (3.97 lb)
Insurance for compass 35 cm (1.15 ft)
Bracket mount mount type (bracket supplied). Rear mount (brackets supplied)
Other Languages -German (Deutsch) -English (English) -Dutch (Nederlands) -Danish (Dansk) -Spanish (Français) -Italian (Italian) -Norwegian (Norsk) -Portuguese (Português) -Finish (Suomi)
Interfaz Hybrid multi-touch screen, buttons, and rotary knob
Data sheet
- Product
- Plotter GPS sin sonda
- Gama/family
- Zeus
- Size screen
- 10"
