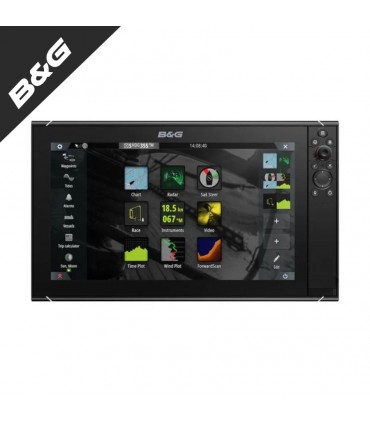

Sonda plotter gps zeus3s - 16 with world map without transducer 000-15412-002

The Zeus 3S series chartplotters are complete navigation systems for both recreational and regatta vessels. Enjoy exceptionally fast processors with which you can visualize up to 6 different information panels at the same time on your SolarMax IPS touch screen, extraordinarily clear and suitable for all weather conditions, and which has a rotating command and a keyboard to offer you the maximum control whatever the conditions are.

They are very simple to use and are equipped with all the exclusive features of B strangerG, such as SailSteer, Laylines and RacePanel, and are perfectly integrated with a wide range of instruments and accessories to offer you greater safety, better performance and the maximum enjoyment of your browsing time.

Enjoy exceptional information about your location thanks to the Zeus 3S high-performance processor. They have a high processing capacity to display cards, radar, autopilot controls and ForwardScan at the same time without damaging performance. Have at your disposal all the tools you need to enjoy navigation with the security of being able to monitor your environment.

Enjoy a fully connected navigation experience and monitor and monitor your H5000 instrument system on board from the screen. Your Zeus 3S unit can also take full control of the systems on board through Naviop and CZone, allowing you to monitor the lights and systems on board and control them tactilely.

The Zeus 3S incorporates a rotating command and a keyboard with which you can control all functions in extreme conditions, in addition to customizable keys that allow you to instantly access the most used functions.

Main features

The chartplotter set of sail navigation and navigation screen faster and with greater responsiveness ever created

SolarMAX IPS displays offer the best visibility from all angles, with and without polarized glasses

It connects with the high-performance network modules of B BroadwayG to deliver the highest performance in high seas: Radar Halo, automatic pilot, ForwardScanTM, NMEA 2000 and 0183, integrated pilot control

Complete package of sailing functions: SailSteer, PredictWind, RacePanel, LayLines and SailingTime

Information panel up to 6 track divisions on the screen

Wi-Fi integrated

Connect with smartphones, tablets and Internet connection points

Display View angles80° top/bottom, 80° left/right Screen button1200 nitsRetro illumination colorWhiteResolution of the screen1920 x 1080

Autopilot Government ModesAuto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)Earning patternsU-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

Approvals Compliance with CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2

Electrical Recommended capacity of fuses7.5A maximum energy consumption40 WFeeding voltage10 - 31.2 V DC

Environment Waterproofing GradeIPX6 and 7HumedadIEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr)Storage temperature range-20°C to +60°C (4°F to 140°F) Operating temperature range-15°C to +55°C (5°F to 131°F)C vibration of shock100 000 cycles of 20 G

GPS receiver channels GPS34 ChannelsCorrectationWASS, MSAS, EGNOS, GLONASS Galileo, Beidou, QZSS.SBAFrequency of update10 Hz Position accuracyHorizontal Accuracy 3 m (9.8 ft)Time to first repairCold start 50 sec, Satellite Reacquisition 5 sec

MFD AISReceive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)Internal storage16 GBLocated mapWorld basemapCompatibility with probesTwo 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo soundersDigital switchC-Zone, NaviopGPSBuilt-in 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS.SBAS (WAAS, EGNOS, MSAS, GAGAN-3USAM *USA only, **AUST. & NZ only)Piloto automaticFull auto pilot control and commissioningWaypoints, routes, tracks6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Physical Dimensions An. x Al. x Pr.437 x 256 x 98 mm (117.19 x 10.08 x 3.82")with bracket: 462 x 264 x 122 (18.19 x 10.39 x 4.80")Weight4.65 kg (10.25lbs.)Sure for compass50 cm (1.7 ft)Type of assemblyBracket (accessory part number 000-13760-001) or panel mount mount

Other LanguagesStandard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishOther languages supported by Unlock:Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, USB MousexinterfazFull touch screen (multi-touch)
