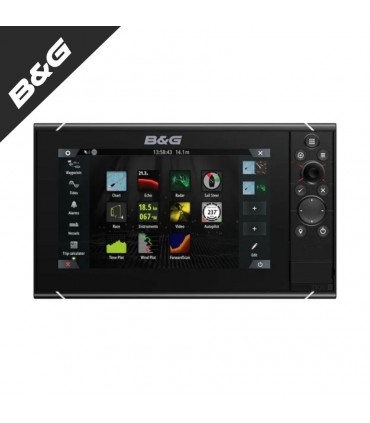

The Zeus 3S 9” is the definitive combination of chartplotter and the highest speed navigation system for recreation and competition vessels. Extremely sharp and with wide viewing angles, it combines a 9-inch touch screen with a rotating button and a keyboard to ensure absolute control regardless of conditions. It takes advantage of its specific sailing and racing functions such as SailSteer, Laylines and RacePanel. Built-in Wi-Fi to connect in the easiest way with online services and mobile devices. Perfect integration with a wide variety of instruments and accessories that gives you greater security, better performance and the maximum enjoyment of your browsing time.
The chartplotter set of sail navigation and navigation screen faster and with greater responsiveness ever created
SolarMAX IPS displays offer the best visibility from all angles, with and without polarized glasses
It connects with the high-performance network modules of B BroadwayG to deliver the highest performance in high seas: Radar Halo, automatic pilot, ForwardScanTM, NMEA 2000 and 0183, integrated pilot control
Complete package of sailing functions: SailSteer, PredictWind, RacePanel, LayLines and SailingTime
Information panel up to 6 track divisions on the screen
Wi-Fi integrated
Connect with smartphones, tablets and Internet connection points
Technical Characteristics B fakeG Zeus3S GPS Plotter:
Screen size: 9 inches
Screen resolution: 1280 x 720
View angles: 80o above/low - 80o left/right
Feed voltage: 10 - 31.2 V DC
Temperature range: -15°C to +55°C
Internal storage: 16 GB
SD card storage: 2 Micro SD slots, max. 32GB each. Larger if formatted to NTFS
Energy consumption (maximum): 20W
GPS receiver channels: 34 channels
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points
Mounting Type: Support (Supplied) or panel mounting
Compatible letters (not included): Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+,Reveal) NV Digital (Raster Char USts)
Charter included: Global base map
Intefaz: Full touch screen (multitable) and full keyboard control, Op50 remote controls
Radar Compatibility: Halo Pulse Compression Radar, Broadband Radar, HD Pulse Radar
Connectivity: WIFI, Bluetooth
AIS: Receive AIS data through NMEA 2000 or NMEA 0183
Meteorology: SiriusXM via WM-4 / WM-3 (USA only), GRIB
GPS incorporated: WASS, MSAS, EGNOS, GLONASS Galileo, Beidou, QZSS.SBAS
Weight: 1.41 kg
Dimensions: 287 x 166 x 90 mm
Brand: B fakeG
Includes B fakeG Zeus3S 9" GPS Plotter:
9 inches Bibliography display
Power supply, 4 pins
Sunscreen for Zeus3S 9 inches
U support for NSS9 evo3/3S, Cruise 9 & Zeus3/3S 9
NSS9 panel assembly kit evo3/3S & Zeus3/3S 9
NSS9 evo3/3S and Zeus3/3S 9 edge wrappers
Documentation
