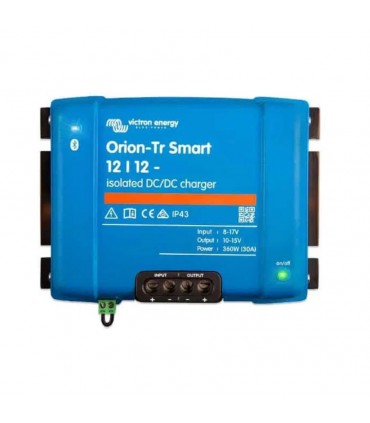

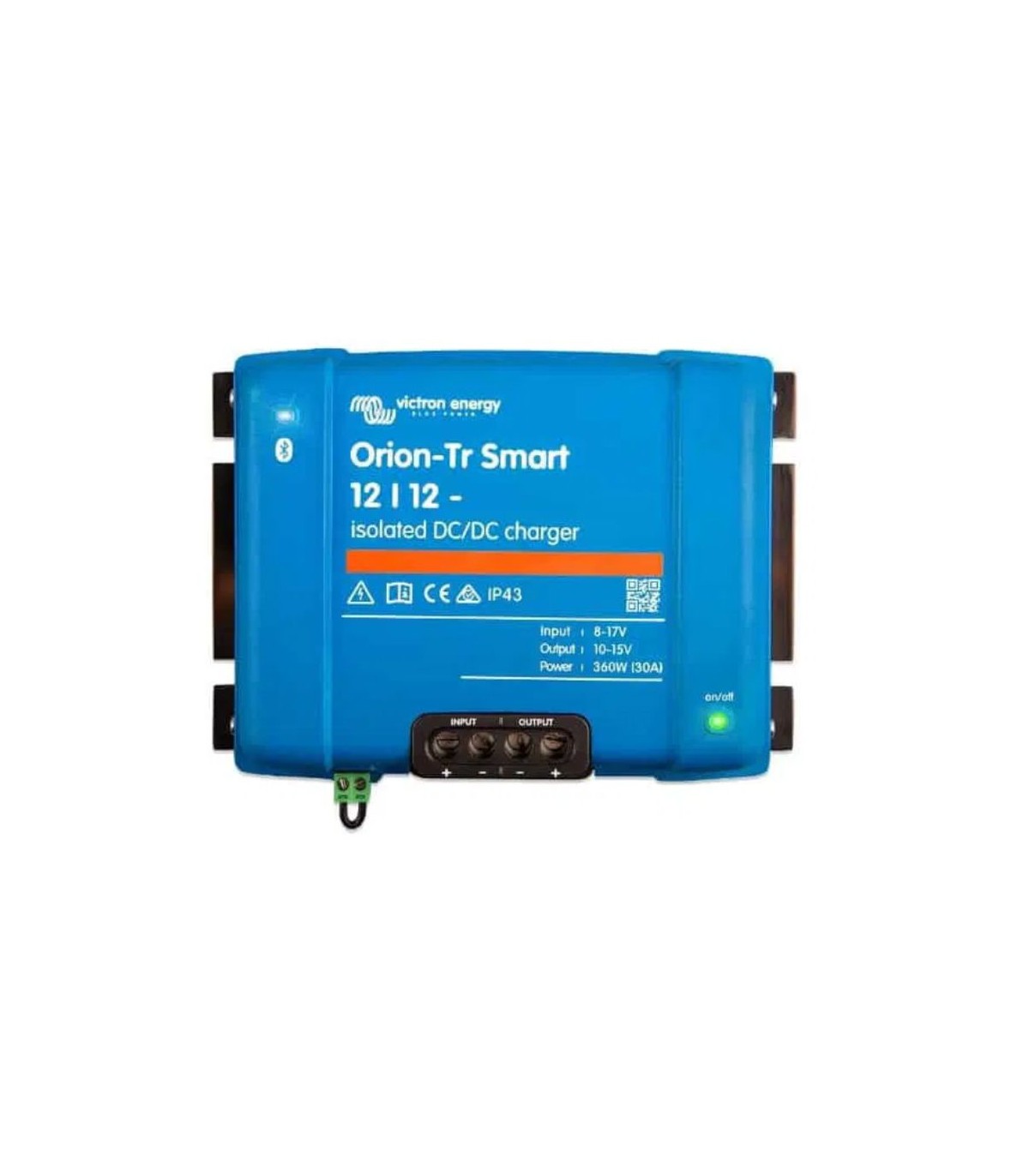

Coverter Booster Charger Victron Orion-TR Smart 128 / 12-18A (220W) DC-DC isolated
CC / DC Charger Victron Orion-TR SMART 12 / 12-18 (220W) with integrated Bluetooth. Load two unable battery banks.
Features:
Bluetooth Smart HabilitadObluetooth Integrated
You can use any smartphone, tablet or other type of device with Bluetooth to monitor, change the settings and update the charger when there are new software features available.
Fully programmable
- Charging algorithm of batteries (configurable) or fixed output.
- Intelligent compatibility with the alternator: Motor detection mechanism running.
3-stage adaptable load algorithm: Initial load - Absorption - Flotation
In the case of lead-acid batteries, it is important that, if the downloads are mild, the absorption time is short to avoid overloading the battery. After a deep discharge, the absorption loading time automatically increases to ensure a full recharge of the battery.
• In the case of lithium batteries, the absorption time is fixed: 2 hours by default.
• Alternatively, you can opt or a fixed output voltage.
ON / OFF remote
A remote ON / OFF switch can be connected to a biphasic connector. Alternatively, the H (Right) terminal of the biphasic connector can be changed to the positive of the battery, or the L (left) terminal of the biphasic connector can be changed to the negative of the battery (or the vehicle chassis, for example).
All models are short-circuited and can be connected in parallel to increase the output current.
An unlimited number of units can be connected in parallel.
Protection against high temperatures:
The output current will be reduced when the room temperature is high.
IP43 Protection
If installed with the screw terminals facing down. Screw terminals No special tools are needed for installation
Input fuse (not replaceable)
