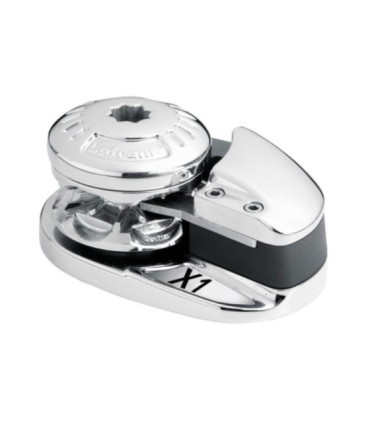

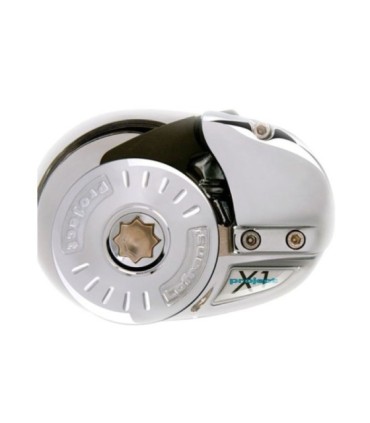

Lowfrans X1 500W 6mm DIN 766 Ankerwinde

Leistungsschalter 35A für Ankerwinde Lowfrans 500w

Ankerwinde X1 500 W Aluminiumprofil

● Selbstständiger Betrieb von Trommel und Barbotén

● Gemischter Umhang und Kettenbarbotén

● Manuelle Kettenfreigabe

● Vorbestückter Kettenzähler im Standard

● IP67 Elektromotorwiderstand

● Kupplung aus eloxiertem Aluminium

You may also like

No items

Beschreibung

Ankerwinde X1 500 W Aluminiumprofil

● Selbstständiger Betrieb von Trommel und Barbotén

● Gemischter Umhang und Kettenbarbotén

● Manuelle Kettenfreigabe

● Vorbestückter Kettenzähler im Standard

● IP67 Elektromotorwiderstand

● Kupplung aus eloxiertem Aluminium

● Keine Glocke

● Kettenmanagement durch den Ladearm

● Getriebe aus eloxiertem Aluminium

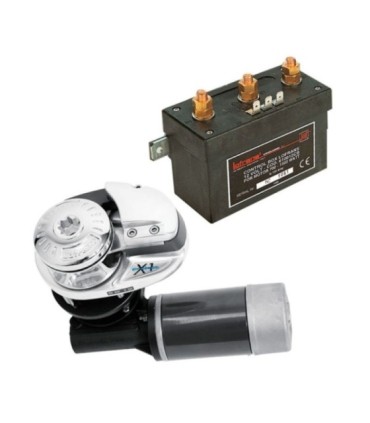

● Beinhaltet:

Schaltkasten
Ankerwindendichtung
Drill-Vorlage
Hardware
CD (Handbuch)

Material	Aluminium
Motorleistung	500 W
Spannung	12 V
Maximale Kraft	630 kg
Höchstlast	345 kg
Nutzlast	95 kg
Stromstärke	60 A
Ø Kap	10-12mm
Ø Kette	6mm ISO 4565 / DIN 766
Upload-Geschwindigkeit	23 bis 26 m/min
Nettogewicht	10 kg
Schaltkasten	Iinklusive

Motor	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	H(mm)	I(mm)	J(mm)	L(mm)
500 W	130	18-30	111	Ø 60	84	183	55	225	127	Ø 82	85
